LΩGIC™ 16X36 QRG
7

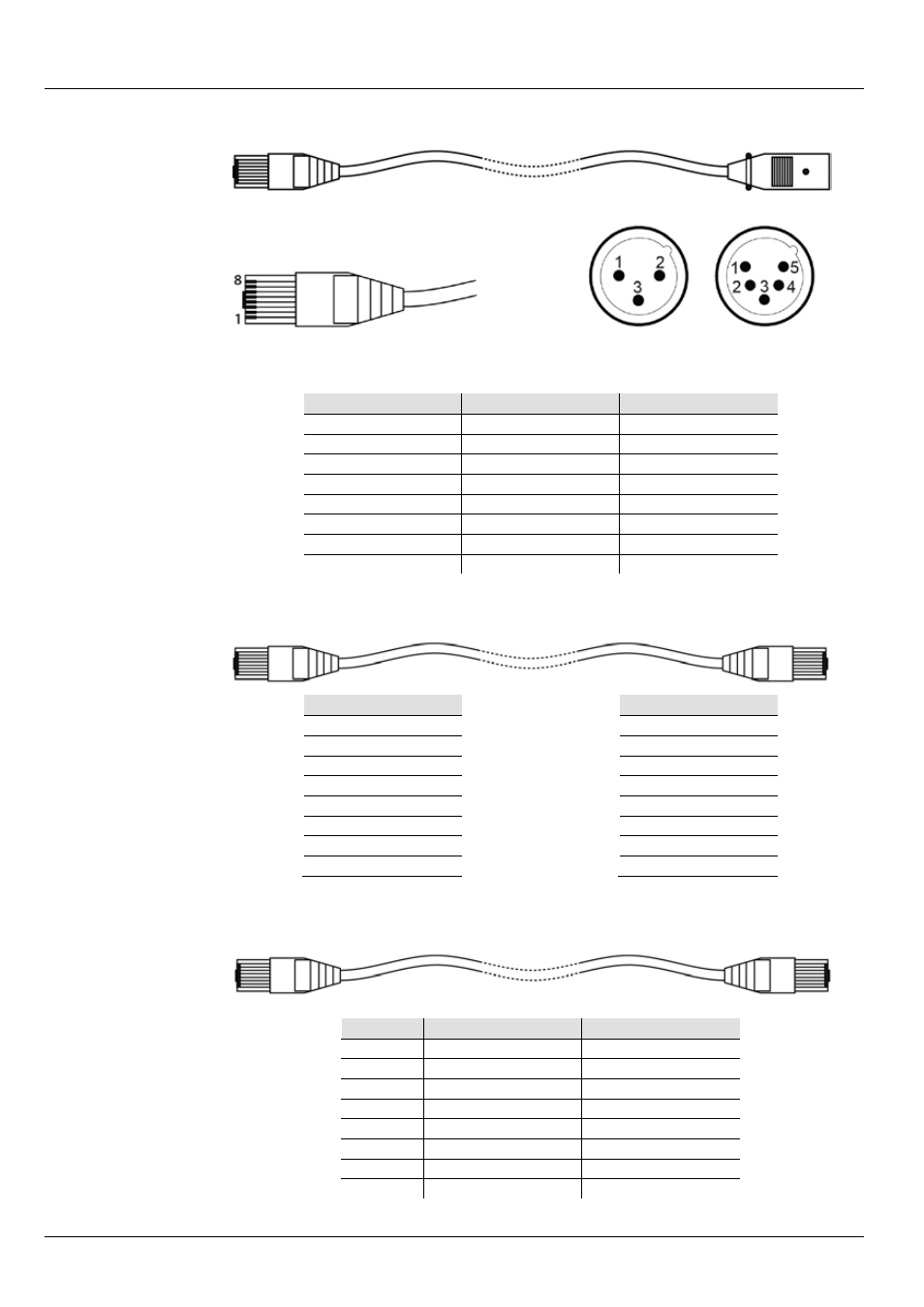

Cable
Connections
RJ-45 Plug 3-pin XLR Male 5-pin XLR Male
Pin 1: Not Used
Pin 2: Not Used
Pin 3: Not Used
Pin 4: Not Used Pin 4: Not Used
Pin 5: +5 V Pin 5: Not Used
Pin 6: Data + Pin 3: Data + Pin 3: Data +
Pin 7: Data - Pin 2: Data - Pin 2: Data -
Pin 8: GND Pin 1: GND Pin 1: GND
RJ-45 Plug RJ-45 Plug
Pin 1: Not Used Pin 1: Not Used
Pin 2: Not Used Pin 2: Not Used
Pin 3: Not Used Pin 3: Not Used
Pin 4: Not Used Pin 4: Not Used
Pin 5: +5 V Pin 5: +5 V
Pin 6: Data + Pin 6: Data +
Pin 7: Data - Pin 7: Data -
Pin 8: GND Pin 8: GND
Pin # Wire Color Function
1 White/Orange Red LED +
2 Orange/White Green LED +
3 White/Green Blue LED +
4 Blue/White Not Used
5 White/Blue Red LED -
6 Green/White Green LED -
7 White/Brown Blue LED -
8 Brown/White Not Used
DMX to RJ-45 adapter: Used to link a DMX controller to the
LΩGIC™ 16X36
RJ-45 Plug Pin Assignment
View facing pins
XLR (male)
3-pin
Signal Patch cable: Used for linking two
LΩGIC™ 16X36 controllers
LED Patch Cable: Used to link the
LΩGIC™ 16X36 controller to its products.
RJ-45 Plug DMX XLR (male)
XLR (male)
5-pin
