Touch Panel Controllers / Connecting
© CUE, a.s. All Rights Reserved.

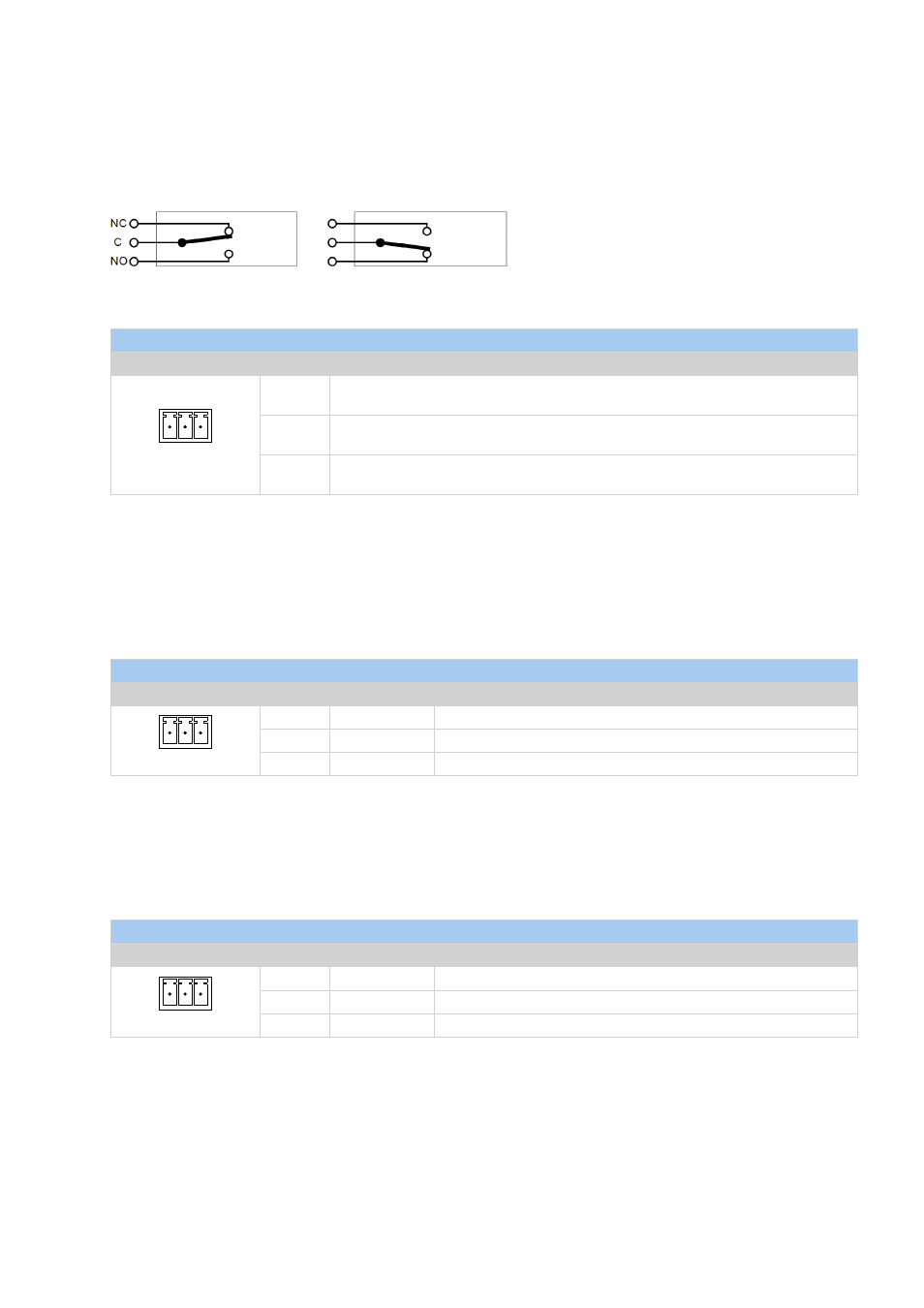

RELAY
This port provides one isolated low voltage relay. Each relay contact closure is rated 24 V / 0.5 A.
Normally Close (NC) and Normally Open (NO) contacts as well as Common (C) contact of each relay can be
used. The Normally Close (NC) position is the state of the relay when it is not turned on (energized).
Connector pin out
RELAY
3-pin 3.5 mm
Pin
Description
C NO
NC
NC
Relay Contact Normal Close
C
Relay Contact Common
NO
Relay Contact Normal Open
AUDIO LINE
IN
This connector provides unbalanced line level audio.
Connector pin out
AUDIO LINE IN
3-pin 3.5 mm
Pin
Signal
Description
L G R
L
Left
Left channel
G
GND
Ground
R
Right
Right channel
OUT
This connector provides un-amplified unbalanced line level audio. Connect audio devices, such as an audio
amplifier or powered speakers to this connector.
Connector pin out
AUDIO LINE OUT
3-pin 3.5 mm
Pin
Signal
Description
L G R
L
Left
Left channel
G
GND
Ground
R
Right
Right channel
