Delta Electronics 10GBASE-SR XFP Optical Transceiver TSP-10G3A1EER - Manual (Page 5)

TSP-10G3A1EER
DELTA ELECTRONICS, INC.
5 Revision: S3
04/10/2007
www.deltaww.com
5. XFI Module Receiver Output Jitter Specifications at C’
Parameter – C’ Symbol Min Typ Max Units Notes
Deterministic Jitter DJ 0.18 UI (p-p) [1]
Total Jitter TJ 0.34 UI (p-p) [1]
X1 0.17 UI
X2 0.42 UI
Y1 170 mV
Eye Mask
Y2 425 mV
Notes:
1. Includes jitter transferred from the optical receiver during any valid operational input condition.

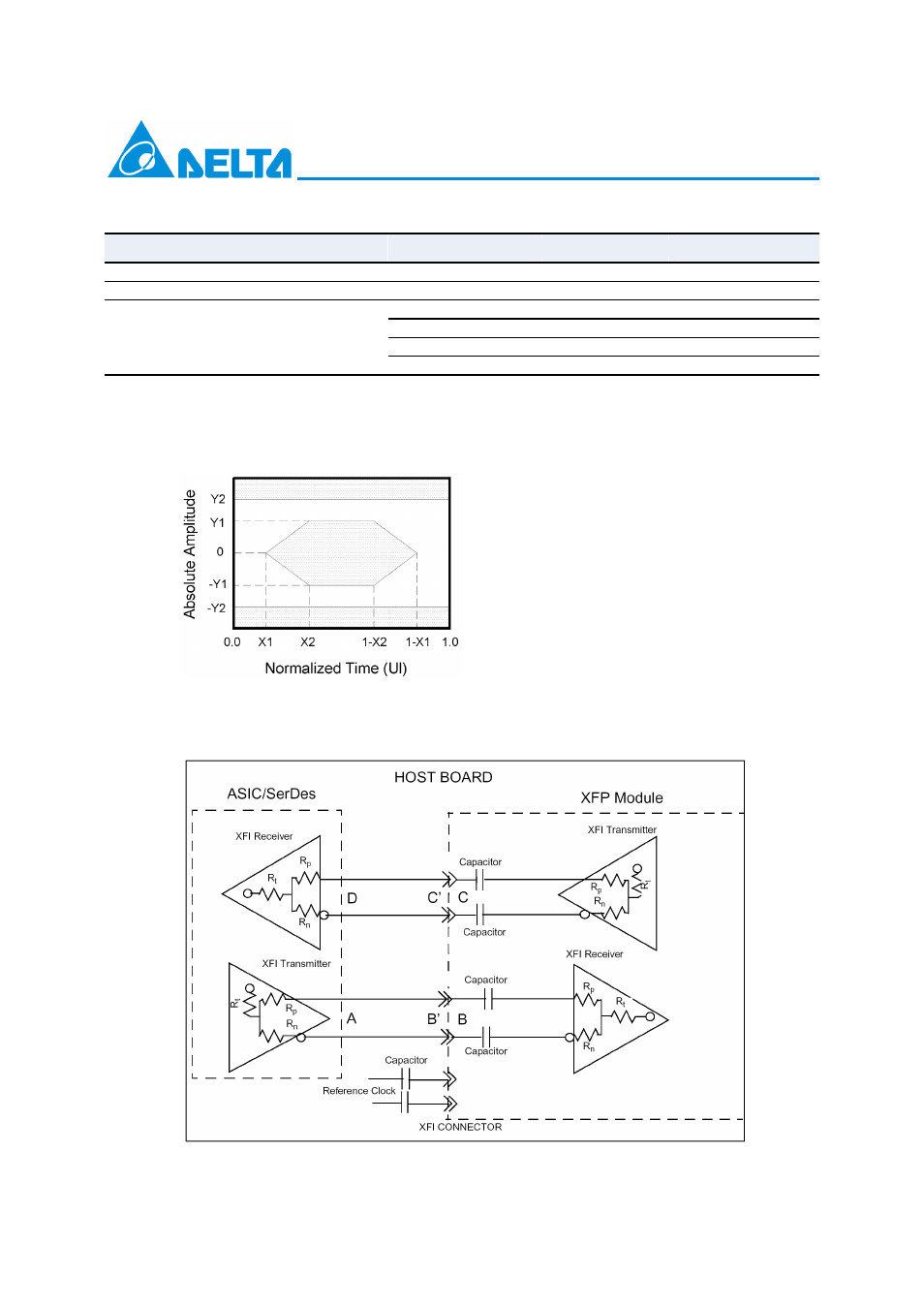

XFI Module Receiver Differential Output Compliance Mask
XFI Termination and AC Coupling
