18
Rev. D
920-0087
TXM24 RS232/485 Hardware Manual
3.3.4 AIN Input
The TXM24 drives have an analog input (AIN) which can accept a signal range of 0 to 5 volts. The
drive can be configured to operate at a speed or position that is proportional to the analog signal.
Use the Step-Servo Quick Tuner software to set the signal range, offset, dead-band and filter
frequency. The TXM24 provides a +5 volt 100mA limit voltage supply that can be used to power
external devices such as potentiometers. It is not the most accurate supply for reference, for more
precise readings use an external supply that can provide the desired accuracy.
+5v
AIN
GND
100 mA limit
Signal
Conditioning
inside drive
rot
ce
nn
oC
O/I
Ω
+5v OUT
AIN
GND
1 - 10k
pot
TXM24

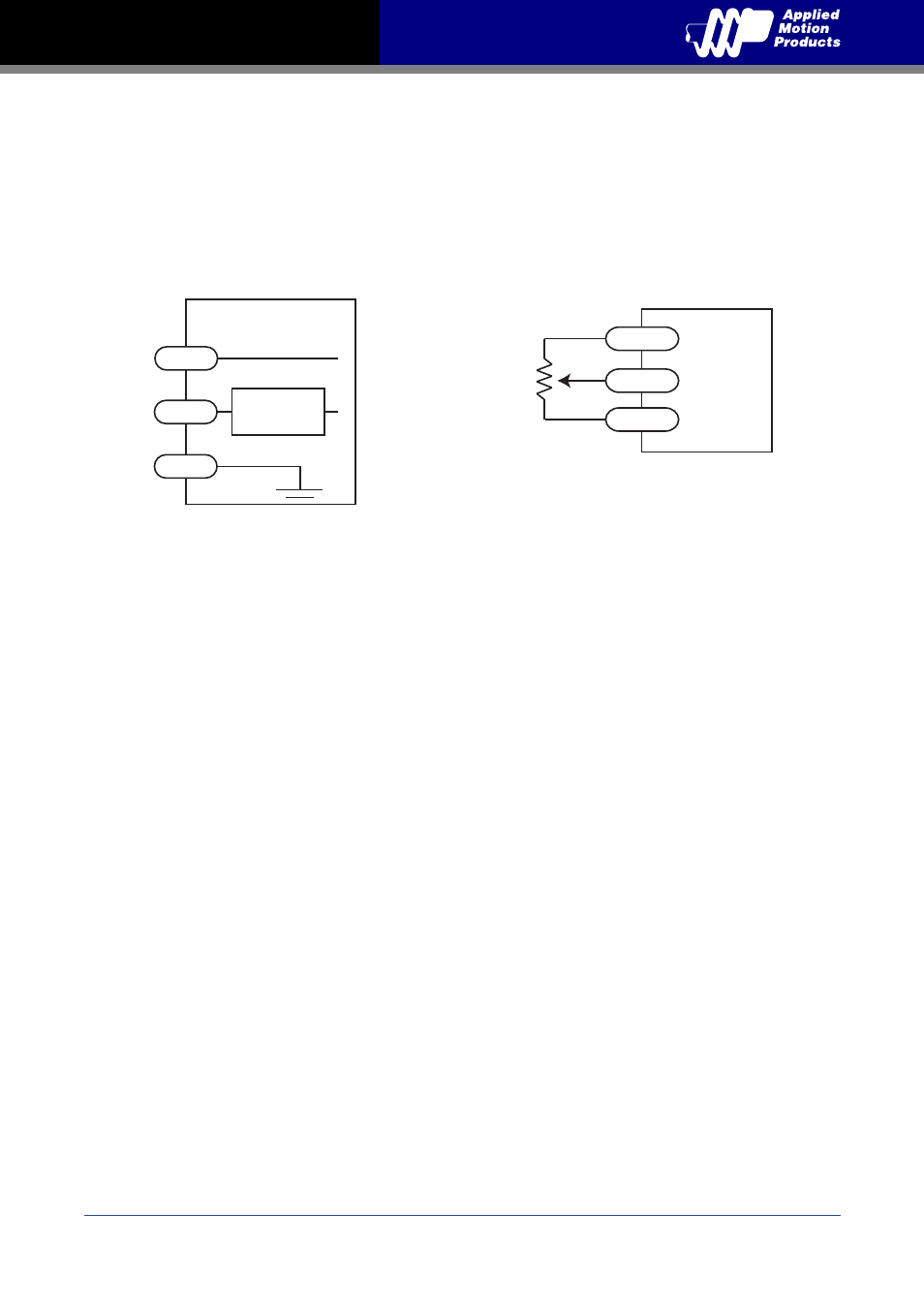

Connecting a Potentiometer
to the Analog Input
