4-3. Do-it-yourself maintenance
PRIUS_U (OM47685U) DVD

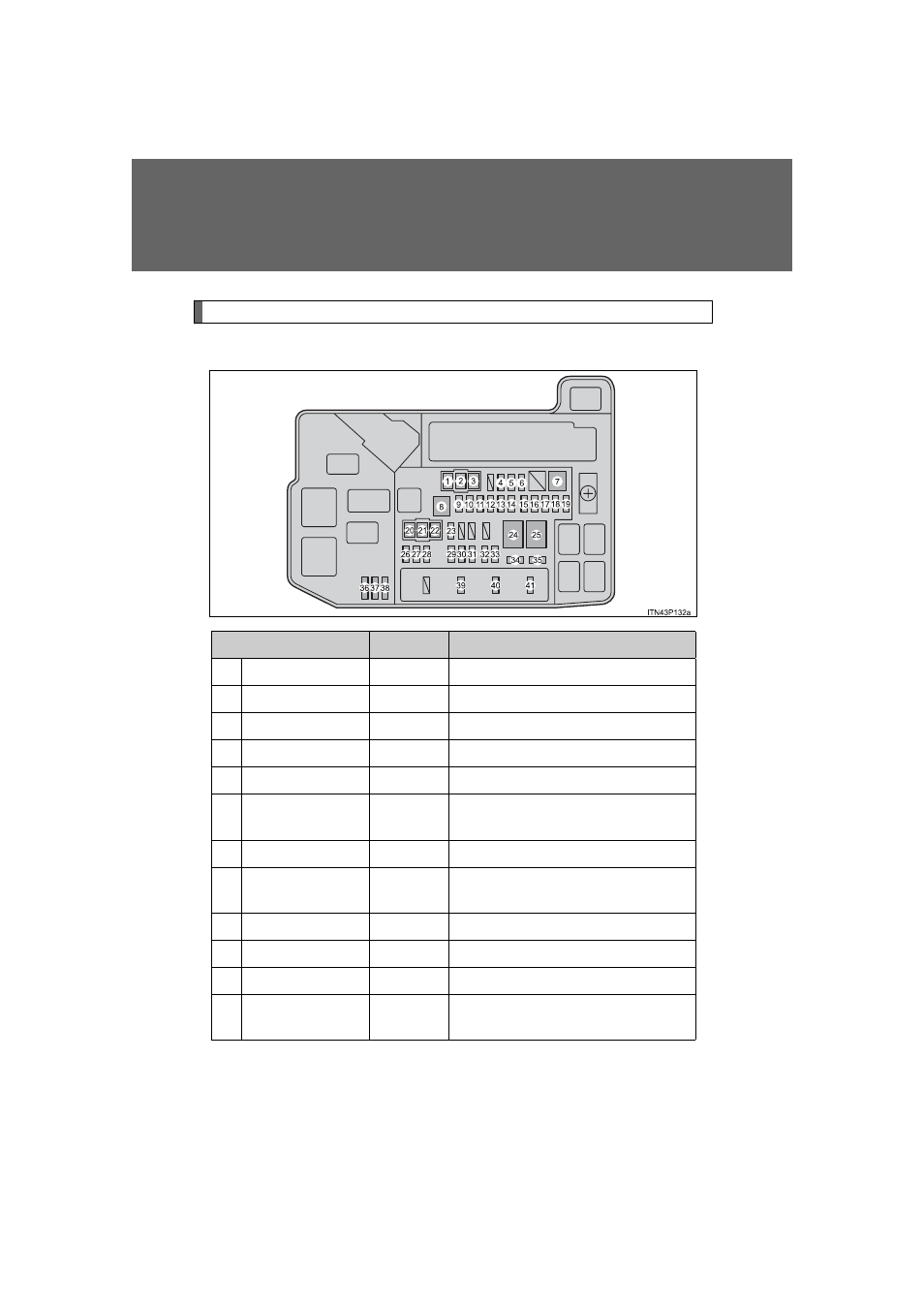

Fuse layout and amperage ratings
n Engine compartment
FUSE Ampere Circuit
1 HTR 50A Air conditioning system
2 RDI 30A Electric cooling fans
3 CDS 30A Electric cooling fans
4 S-HORN 10A No circuit
5 ENG W/P 30A Cooling system
6
ABS MAIN
NO.2
7.5A Anti-lock brake system
7 H-LP CLN 30A Headlight cleaner
8 P-CON MTR 30A
Parking control system, transmis-
sion
9 AMP 30A Audio system
10 IGCT 30A PCU, IGCT NO.2, IGCT NO.3
11 DC/DC-S 5A Inverter and converter
12 P CON MAIN 7.5A
Parking control system, transmis-
sion
