6–6 Chapter 6: Board Test System
Using the Board Test System
Stratix IV GX FPGA Development Kit User Guide March 2014 Altera Corporation
1 Setting DIP switch SW6.1 to the off position includes the MAX II device in the JTAG
chain.
Flash Memory Map
The Flash memory map control shows the memory map of the flash memory device
on your board.
The GPIO Tab
The GPIO tab allows you to interact with all the general purpose user I/O
components on your board. You can write to the LCD, read DIP switch settings, turn
LEDs on or off, and detect push button presses.
Figure 6–3 shows the GPIO tab.
The following sections describe the controls on the GPIO tab.
Character LCD
The Character LCD control allows you to display text strings on the character LCD on
your board. Type text in the text boxes and then click Write.

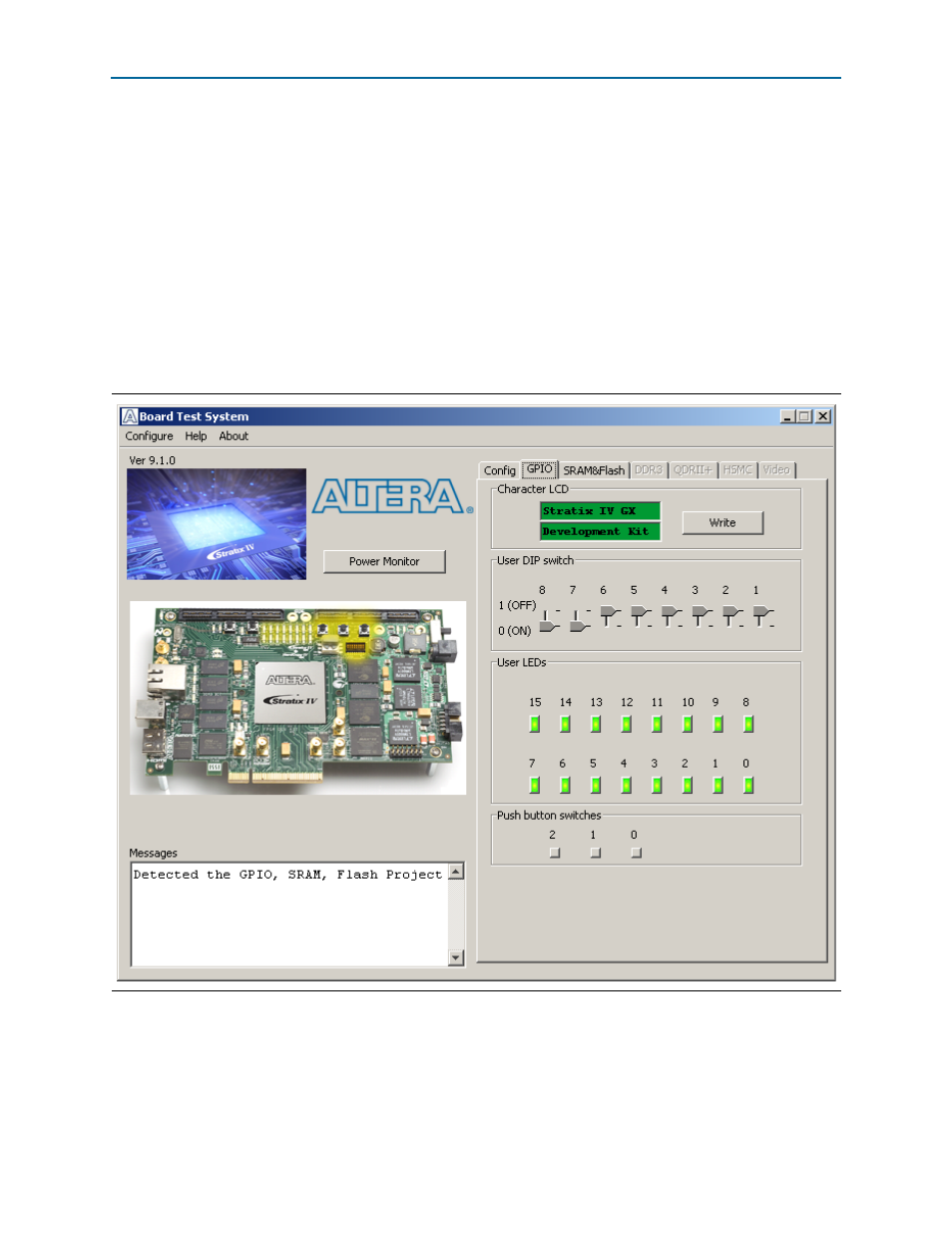

Figure 6–3. The GPIO Tab
