DSL-500 ADSL Router User’s Guide
ADSL Line Setting
If your ADSL connection is disconnected or the connection is faulty, you can try to reconnect using the ADSL
Line Setting menu. The ADSL/Link LED Indicator will light green if you have a viable ADSL link. You can
also look at the Summary statistics and Line Condition windows to diagnose problems with the ADSL
connection.
To reestablish the ADSL connection, click the Retrain button. The Router will initiate a new attempt to negotiate
and establish the ADSL connection. If this fails, check to make sure you are using the correct PVC (VPI/VCI)
settings and restart the Router. If problems persist, call your ISP or ADSL service provider. Inability to initiate or
maintain the ADSL link may indicate a problem at the other end (DSLAM) of the ADSL connection.

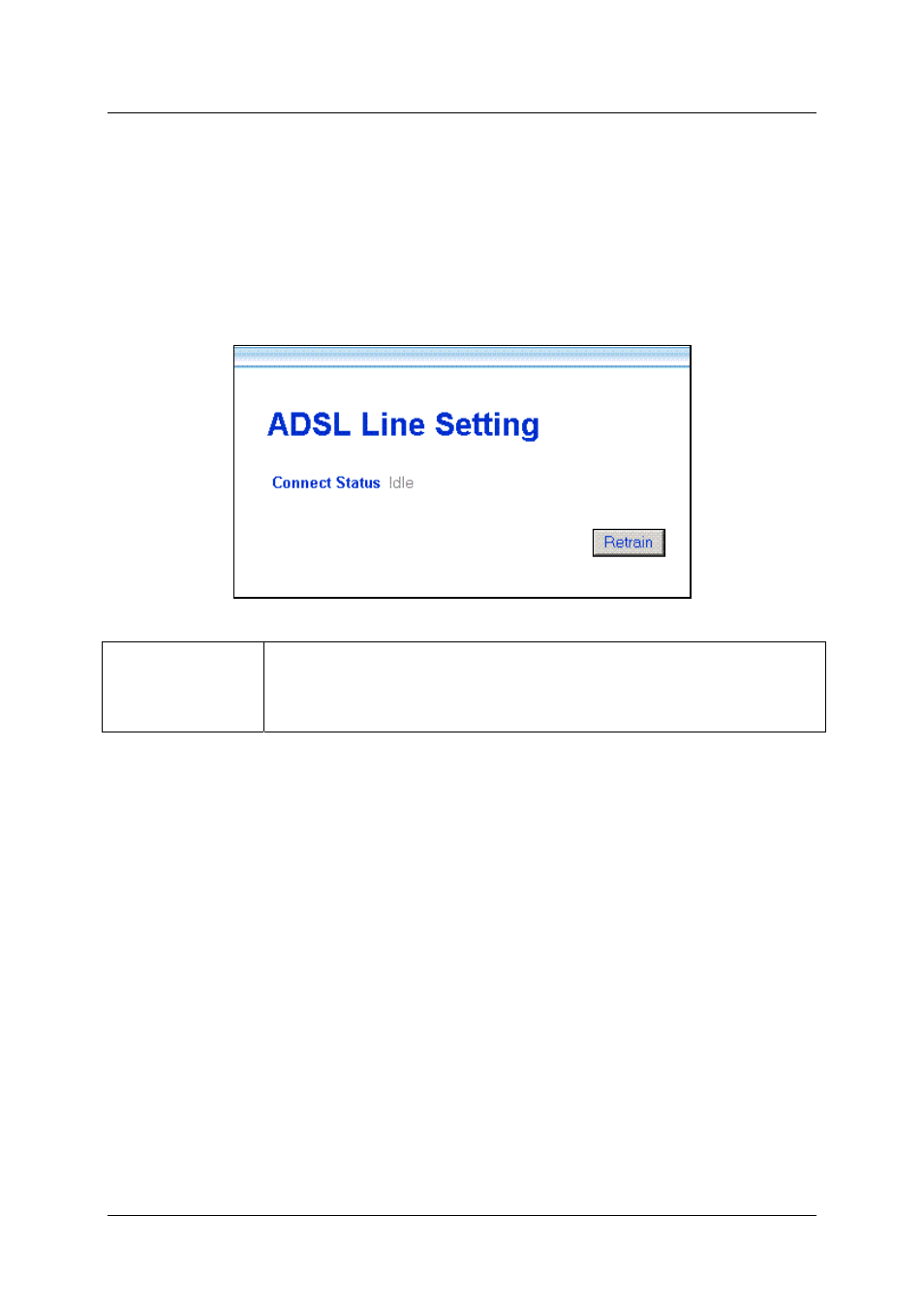

Figure 5 - 23. ADSL Line Retrain
Connection Status
disconnected indicates an ADSL connection failure
idle indicates a valid connection that is currently not active
active indicates a valid connection that currently is transmitting packets
