DSL-500 ADSL Router User’s Guide

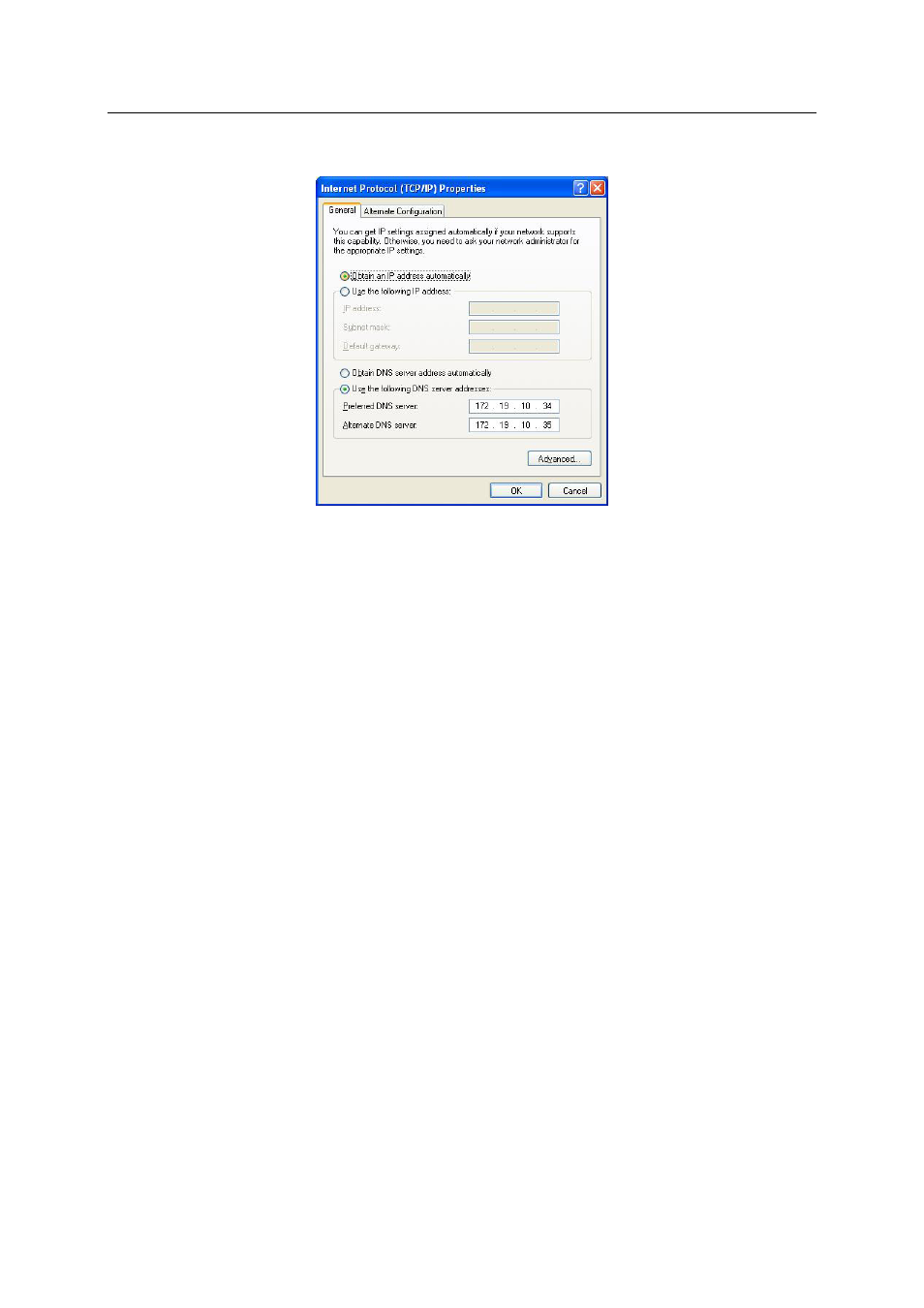

7. Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK button.

Your computer is now ready to use the Modem’s DHCP server.

Windows 2000

First, check for the IP protocol and, if necessary, install it:

1. In the Windows task bar, click the Start button, point to Settings, and then click Control Panel.

2. Double-click the Network and Dial-up Connections icon.
3. In the Network and Dial-up Connections window, right-click the Local Area Connection icon, and then

select Properties.

4. The Local Area Connection Properties dialog box displays with a list of currently installed network

components. If the list includes Internet Protocol (TCP/IP), then the protocol has already been enabled,
skip ahead to Configure Windows 2000 for DHCP.

5. If Int.0399 Tm(en)Tj9.908389ID 11 >>BDCB tern

.0399 Tm(en)Tj9.412468519 321.0801 Tm(t)Tj9.96 0 0 9.964702.2204 321.0801 TmP prIfi

/Ie s
