13 FORM NO. L-21156-F-0209
30
22
20
18
37
8
5
1
12
25
Point drain
hole down
26
14
28
35 2 33
13
11
17
34
19
16
17 23
16
39
38
3
15
5
6
19
36
36
19
WARNING
ParTS lIST
rePlaCemenT ParTS
The Item or balloon number for all Nexen products is used for part identification on all product parts lists, product price
lists, unit assembly drawings, bills of materials, and instruction manuals.
When ordering replacement parts, specify model designation, item number, part description, and quantity. Purchase
replacement parts through your local Nexen Distributor.

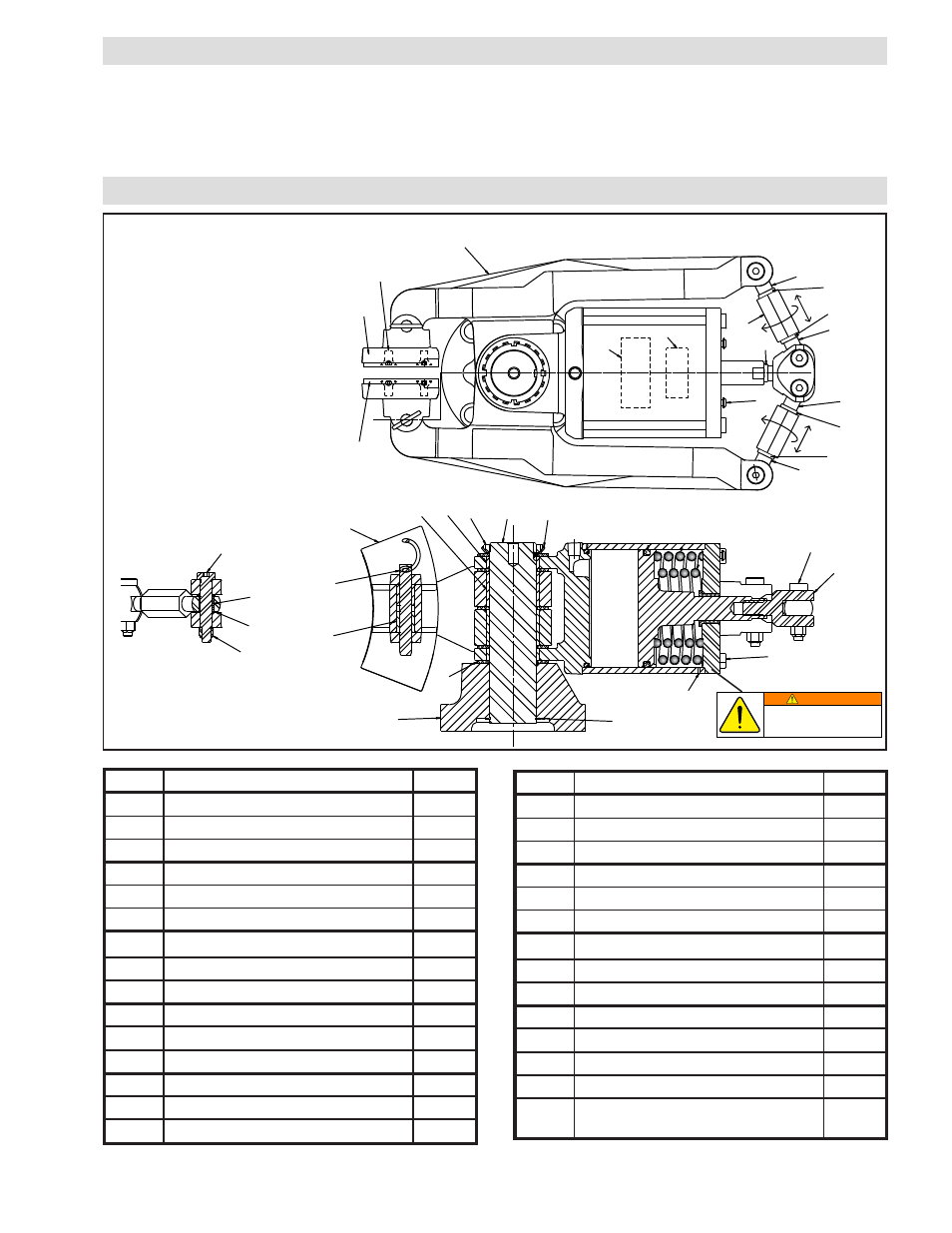

Figure 11
actuator is spring loaded
under extreme pressure. Do
not disassemble.
nOTe: The vC500 Caliper brake has a .250–18 nPT air inlet port. a .250–18 nPT (male) and .250 ISO 7/1 (female) adapter is provided for
metric plumbing applications.
ITem DeSCrIPTIOn QTy
1 Pivot Pin Frame 1
2 Arm Pivot Pin 1
3 Brake Arm 2
5 Brake Shoe 2
6 Friction Facing 2
8 Detent Pin 2
11 Sleeve Bearing 2
12 Thrust Bearing 5
13 Sleeve Bearing (Actuator) 2
14 Clevis 1
15 Cap Screw 8
16 Solid Rod End (Right-Hand) 2
17 Solid Rod End (Left-Hand) 2
18 Hex Nut 18
19 Jam Nut 3
ITem DeSCrIPTIOn QTy
20 Thrust Washer 4
22 Sleeve Bearing 4
23 Turnbuckle 2
24 Guard 1
25 Retaining Ring 1
26 Hex Head Screw 4
28 Shoulder Screw 2
30 Shoulder Screw 2
33 Bearing Lock Nut 1
34 Cap Screw 2
35 Keyed Washer 1
36 Jam Nut (Left-Hand) 2
37 Sleeve Bearing 4
41 Air Inlet Adapter, ¼ NPT,
metric (not shown)
1
