X16 Installation Guide
- 20 - Issue 2
Pu
nc
h Do
w
n
Step 4 – Power up and Initialization
To power up the system, and bring it on line, connect the external power
supply to the system. To initialize the system, once the blue LED begins
flashing at 1 impulse per second (IPS), switch the “init switch” back and
forth three times and the LED will begin flashing at rapid rate, for 5
seconds and then return to 1 IPS.
Note:
For proper operation, be sure to reboot the system, by unplugging the power cable,
and then plugging it back in. This will ensure that all of the extensions are connected to
the server correctly.
Step 5 – Extension Numbering
One extension in the system will automatically be numbers 301. All other
telephones will have to have their extension numbers entered when they
are connected to the system. Valid numbers are 302 to 399. To program
the extension number please refer to Phone Setup (see Page 13), in the
programming section.
The system becomes fully functional after all extensions are registered.
Extensions may be moved from one port to another simply by
unplugging the unit and plugging it into another active port. If the
extension is unplugged for longer than 120 seconds (2 minutes) the port
may initialize, and revert back to factory default – This includes all
personal voice mail settings (greetings and saved messages). Any port
that is active must have either a telephone or an Endpoint Device
connected to it, or distortion may be heard.
Note: An “Endpoint Device” may be needed when relocating an extension.

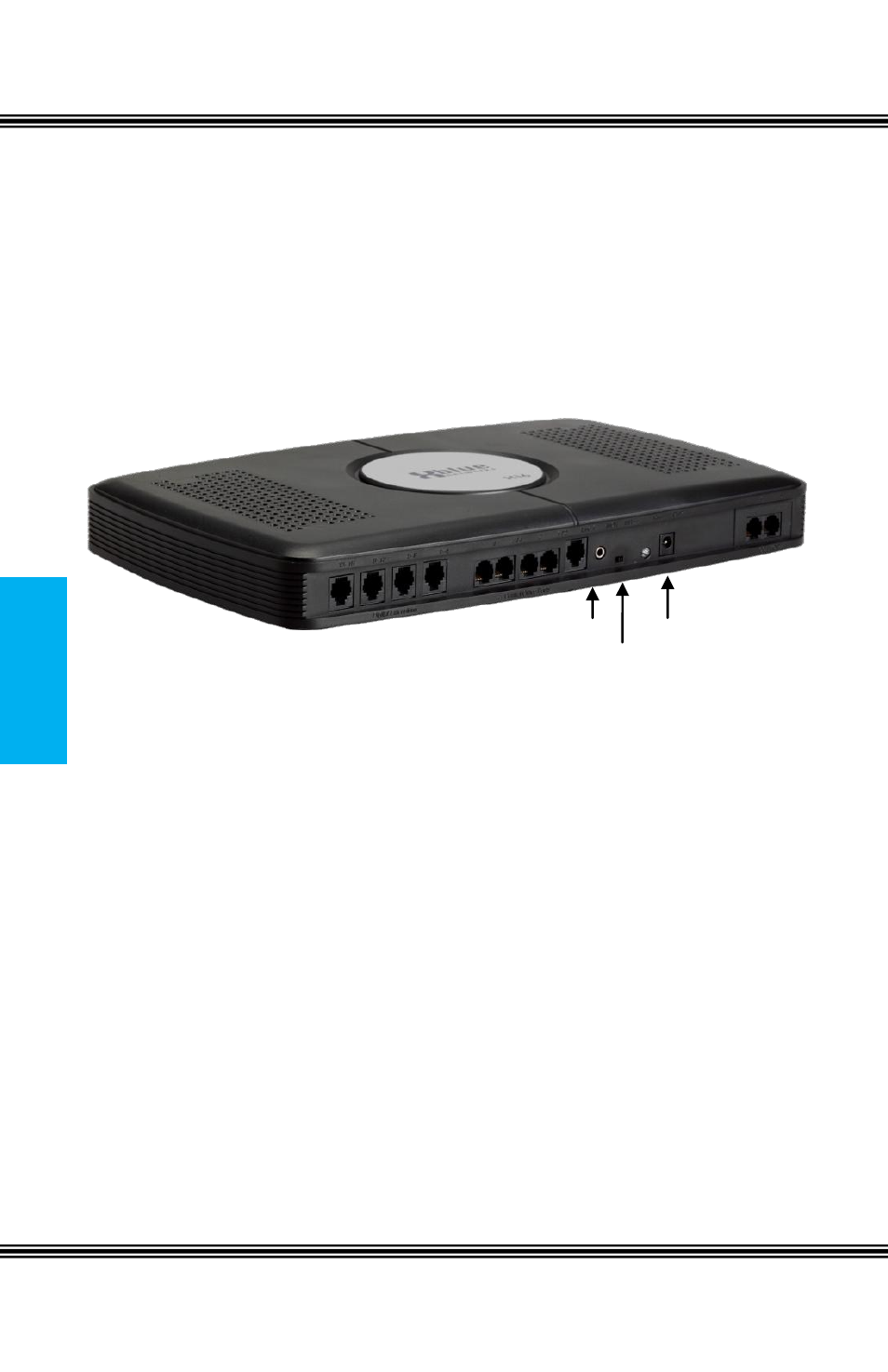

Initialization Switch
MOH Port Power Input
