X16 Installation Guide
- 16 - Issue 2
Sy
ste
m
Co
nfi
gu
ra
tio
n

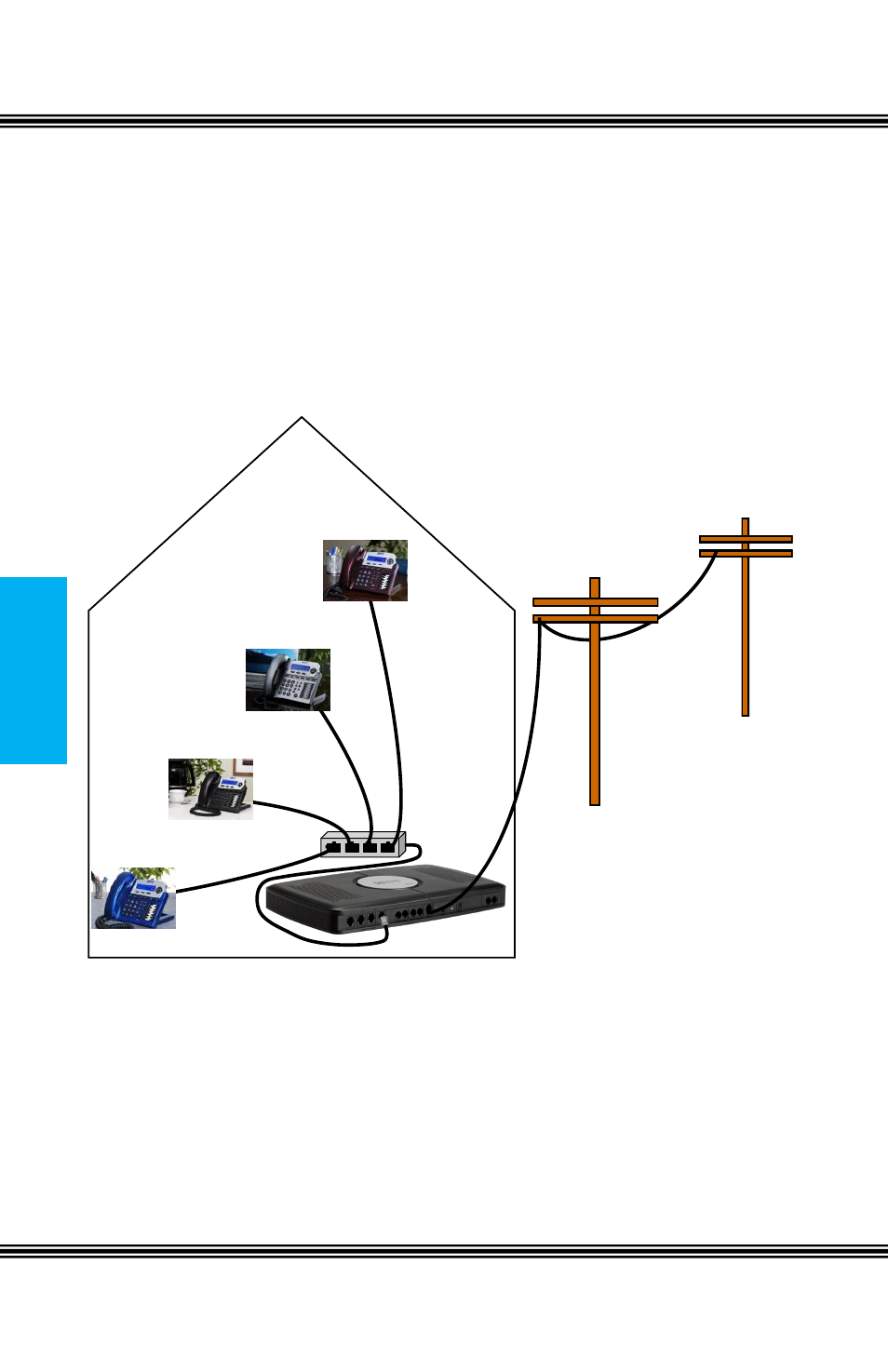

Home Run wiring, also known as star topology can be found in office
buildings and newer homes. In this wiring scheme each of the four X16
telephones are plugged into a “4 Telephone Connector”, which is then
connected into one of the ports on the X16 system.
In a star topology 600 feet is calculated by adding each Digital Telephone
endpoints cable run.
Cable A + Cable B + Cable C + Cable D <= 600 feet.
