Issue 2 - 17 -
Sy
st
em
Co
nf
ig
ur
at
io
n

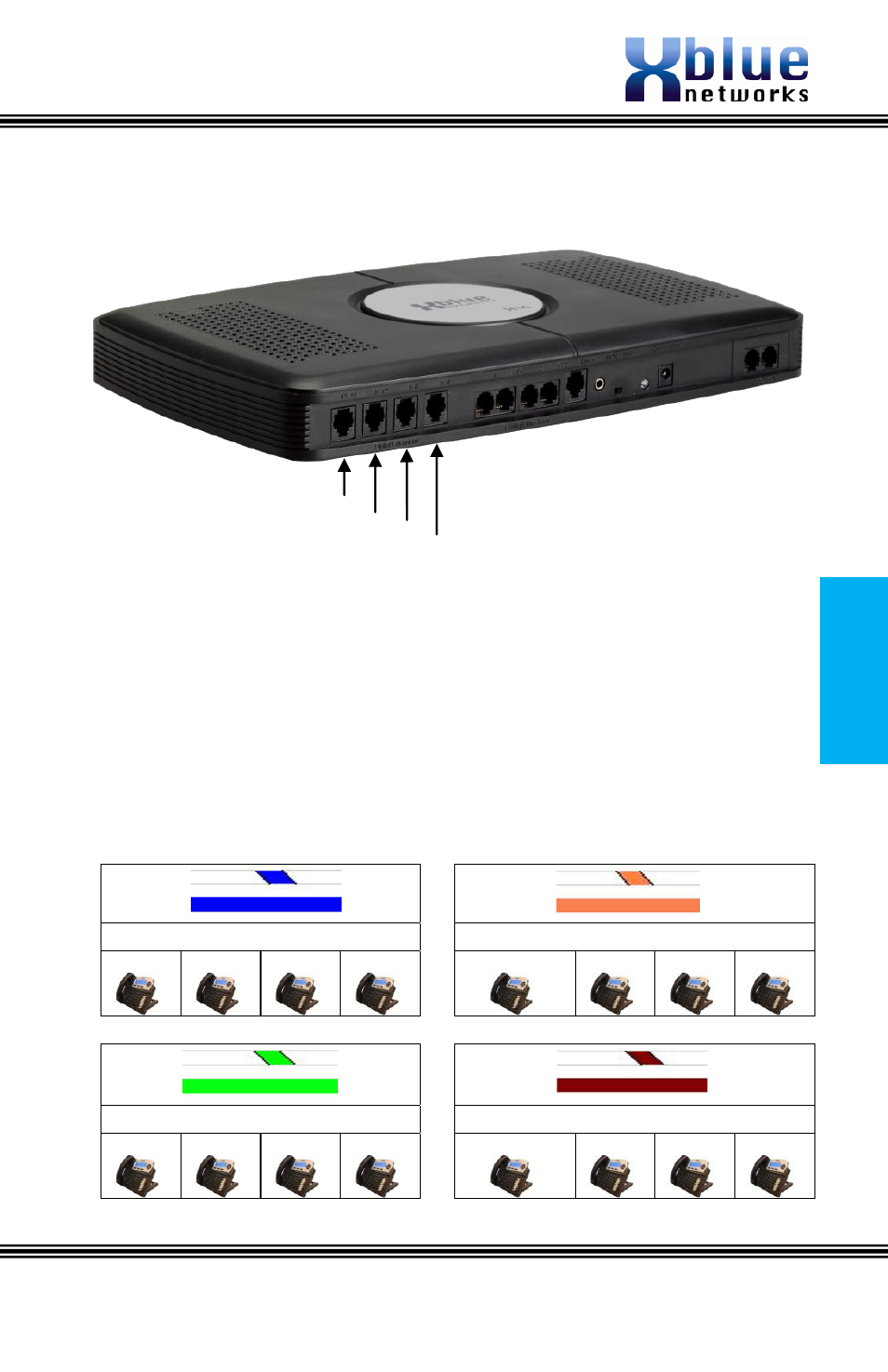

The extensions are labeled 1 ~ 16, and each port accepts up to four
telephones.
Connect the X16 telephone endpoints to the system using one RJ11
port, for up to four different endpoints, with a maximum cable length of
600 feet per port. Once connected each telephone endpoint will register
with the voice server once it is powered up. At default, the extensions
begin with number 301. The remaining extension numbers must be
entered. See step 5
.
X16 Cable Pair
White Blue
White Orange
Ports 1~4 Ports 5~8
301 302 303 304 305 306 307 308
White Green
White Brown
Ports 9~12 Ports 13~16
309 310 311 312 313 314 315 316
Extensions
13~16
9~12
5~8
1~4
