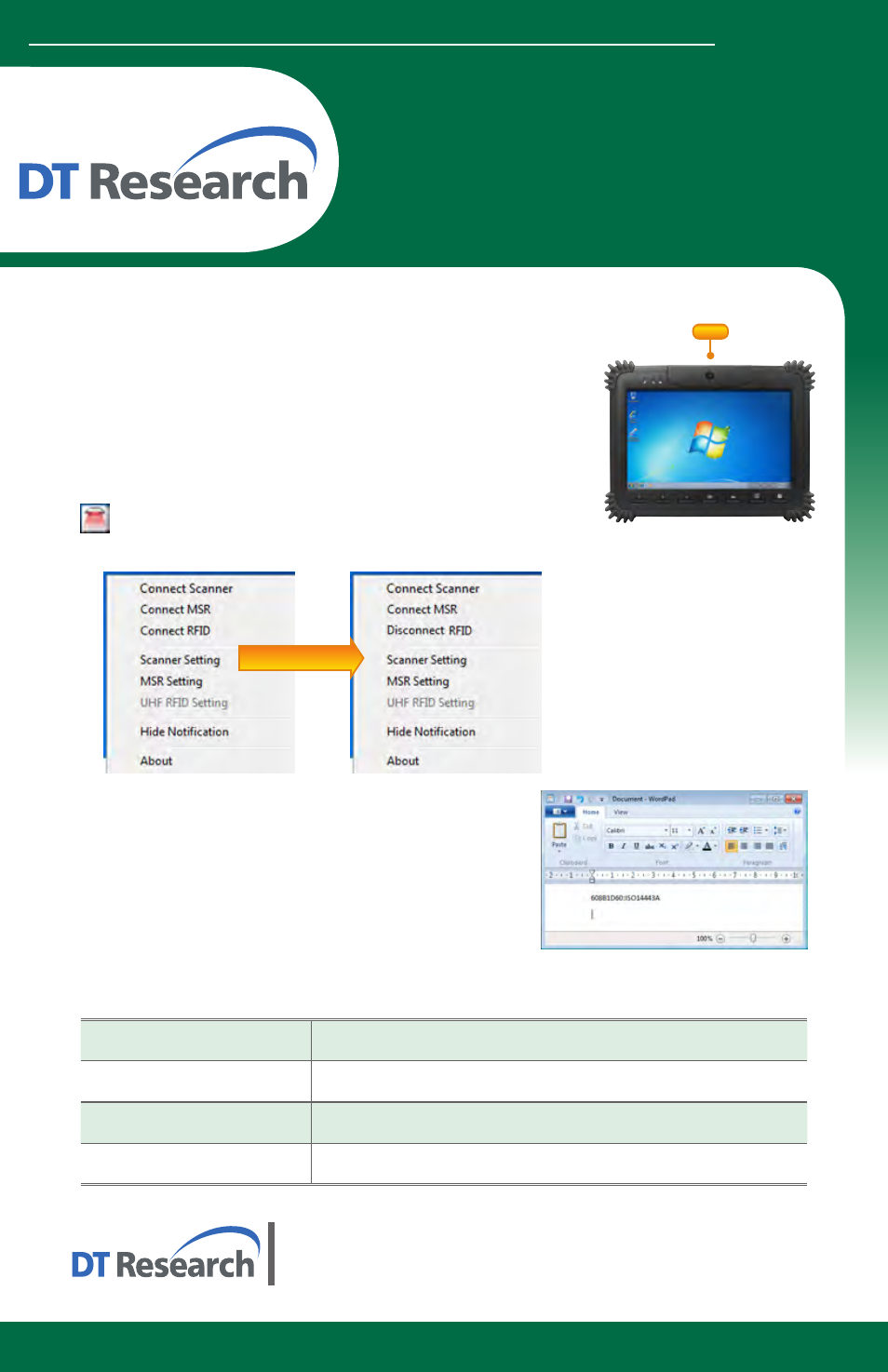

RFID Reader
Installation
The RFID reader is preinstalled as an option.
www.dtresearch.com
To Connect RFID Reader Module
To connect the RFID, use the WebDT Keyboard Wedge. Tap on the
icon in the task bar, a menu displays as shown in the picture
below. Select Connect RFID.
To Test RFID Reader Module
Click 1. Start | All Programs | Accessories | WordPad to
run the WordPad.
Place an ISO card within range of the RFID tag (see
2.
reading range in specifications). The output will appear
in the WordPad screen.
Verify the captured data.
3.
SPECIFICATIONS
Frequency 13.56MHz ±7 KHz
Module Mode FSK
Reading Range Within 30mm
HF RFID Reader ISO 15693,14443A(B), Felica UID
signage dtri com
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com
Copyright © 2012, DT Research, Inc. All Rights Reserved.
DT Research and WebDT are registered trademarks of DT Research, Inc.
RFID Reader
RFID
RFID connected
Note: The product outlook
will look slightly different
on different models.
