Vortech 2003-2005 Lexus 3.0L IS300 - Manual (Page 34)

P/N: 4LA020-010
©2007 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
11JUL07 v1.1 Lexus(4LAv1.1)
26

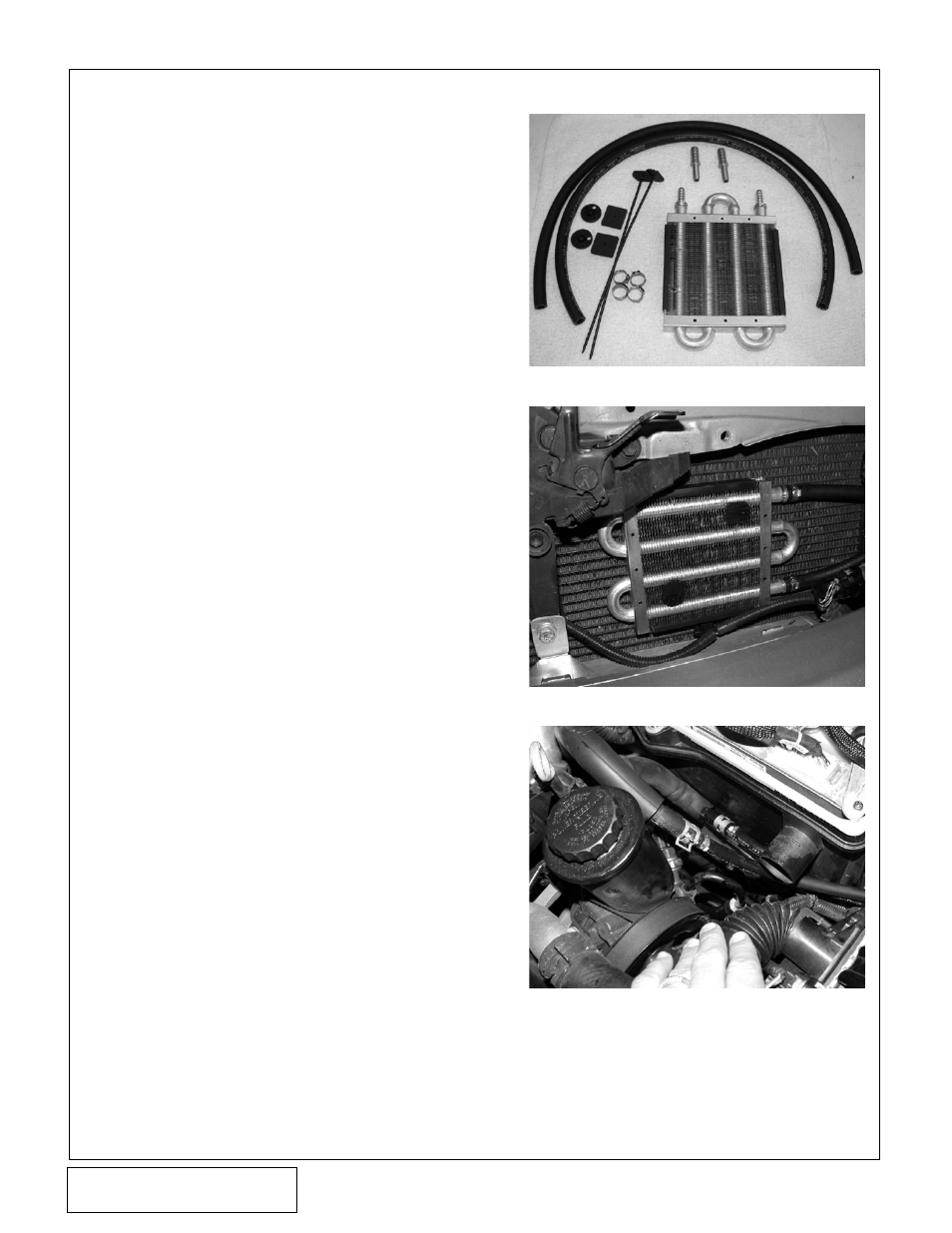

A. Locate the power steering cooler relocation
assembly (4LA110-010). (See Fig. 9-a.)
B. Attach the supplied Ø5/16" rubber hoses to
the power steering cooler and secure using
the stepless clamps provided.
C. Secure the power steering cooler to the A/C
condenser using the supplied nylon mounting
kit. (See Fig. 9-b.)
D. Route the hoses around the driver’s side of
the radiator and towards the factory P/S
hoses.
E. Using the supplied Ø3/8" to Ø5/16" barbed
reducers, two factory clamps and two step-
less clamps provided, connect and secure the
rubber lines to the factory P/S hoses. (See
Fig. 9-c
.)
F. Top off the power steering system reservoir
using the factory recommended power steer-
ing fluid.
G. Using the factory hardware, reinstall the radi-
ator and fan assembly. Install the upper and
modified lower factory radiator hoses and
secure using the original clamps. Refill the
engine coolant system using the coolant
drained in a previous step (provided it is in
good condition
). Automatic transmission vehi-
cles reconnect the factory transmissiion cool-
er lines, you will need to wait until the install-
tion is complete before checking fluid level.
9. POWER STEERING
Fig. 9-a
Fig. 9-b
Fig. 9-c
