Vortech 2003-2005 Lexus 3.0L IS300 - Manual (Page 15)

P/N: 4LA020-010
©2007 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
11JUL07 v1.1 Lexus(4LAv1.1)
7
SPACER, LOWER
SUPPORT
(4LA010-021)
M6-1.0 x 70mm
SCREW & WASHER
Ø.50" x 1.538" SPACER
(2A017-501-153)
M6-1.0 x 70mm
SCREW & WASHER
Ø.875" x 1.437" SPACER
M8-1.25 x 80mm
SCREW & WASHER
NO SPACER/FACTORY ALT. BOLT
(M10-1.25 x 50mm)
3/8-16 x 2.75" SCREW, WASHER, DUST
SHIELD, 3" SPOOTH IDLER, AND IDLER
SPACER (4LA017-011)
3/8-16 x 1" SCREW
& WASHER
3/8-16 x 1.75" SCREW, WASHER,
& .895" SPACER (2A017-875-13)
M10-1.25 x 15mm
4LA010-010
UPPER SUPPORT
BRACKET
3/8-16 x 1" SCREW,
WASHER, NYLOC NUT

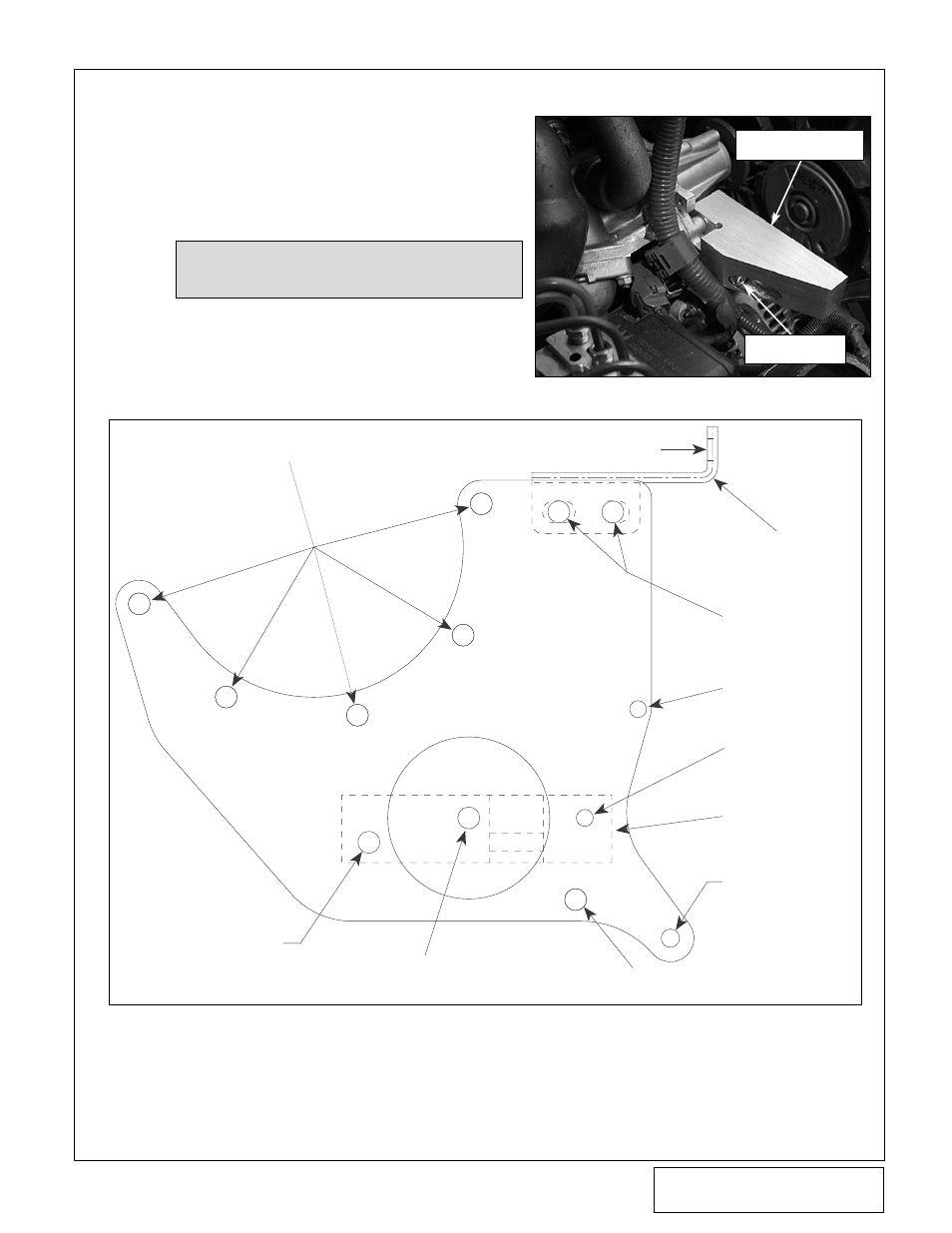

Fig. 5-b
A. Locate the S/C mounting bracket assembly
(4LA111-044.)
B. Using the M8 x 40mm socket-headed screw,
loosely attach the mounting bracket support
block (4LA010-021) to the side of the water
pump. (See Fig. 5-a.)
5. MOUNTING BRACKET AND SUPERCHARGER INSTALLATION
NOTE: For the following section, refer to Fig.
5-b for screw and spacer location. Do
not tighten until all hardware is in place.
LOWER BRACKET
SUPPORT (4LA010-021)
M8-1.25" x 40mm
(7C080-040)
Fig. 5-a
