Air inlet installation – Vortech 2003-2005 Lexus 3.0L IS300 User Manual

Page 27

P/N: 4LA020-010

11JUL07 v1.1 Lexus(4LAv1.1)

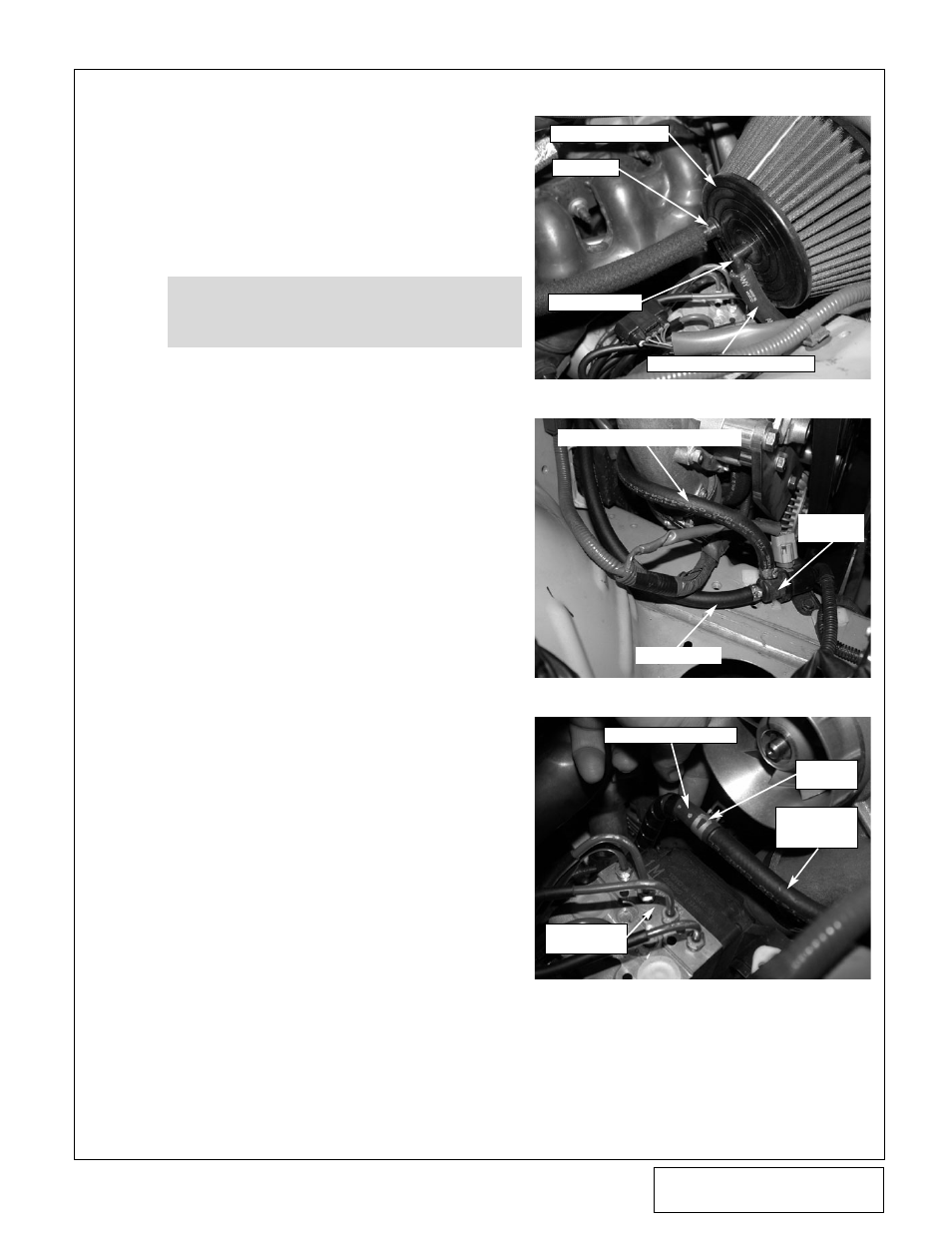

Fig. 7-c

Locate the 4LA112-010 Air Inlet Assembly.

Loosely install the supplied air filter onto the
supercharger inlet. Mark the two hole loca-
tions to be drilled in the filter. One hole
approximately Ø5/16" in the center of the fil-
ter. The other hole should be approximately
Ø1/2" and offset to clear the ABS lines. (See
Fig. 7-a

AIR INLET INSTALLATION

Fig. 7-b

Fig. 7-a

SUPPLIED AIR FILTER

1/2" UNION

5/16" 90° ELBOW

LINE TO PRESSURE SOLENOID

LINE TO MOLDED FACTORY HOSE

PRESSURE

SOLENOID

LINE TO FILTER

MOLDED FACTORY HOSE

5/16" HOSE

MENDER

5/16" HOSE TO

PRESSURE

SOLENOID

RELOCATED

ABS MODULE

Install the two fittings into the end of the air
filter and re-install onto the supercharger inlet
and secure. (See Fig. 7-a.)

Locate the pressure solenoid removed from
the plastic air filter enclosure in a previous
step.

Secure the solenoid to the top of the passen-
ger’s side frame rail using the factory retainer
as shown. (See Fig. 7-b.)

Using the supplied union and length of
Ø5/16" hose provided, connect the formed
rubber hose (previously connected between
the filter enclosure and the solenoid

) to the

vacuum port as shown. (See Figs. 7-b, 7-c.)

Connect the remaining portion of the Ø5/16"
hose between the Ø5/16" x 90° fitting previ-
ously installed into the air filter and open vac-
uum port on the pressure solenoid. (See
Figs. 7-a, 7-b

NOTE:

Thoroughly clean the inside of the filter
and inspect to make sure no material is
left from the drilling process.
