6. CHARGE COOLER INSTALLATION, cont’d
Fig. 6-m
Fig. 6-n
Fig. 6-o
TUBE “D”
Ø2.5" x 25°
ELBOW
TUBE “A”
TUBE “B”
2.75"-3" REDUCER SLEEVE
TUBE “E” MAF ELECTRONICS

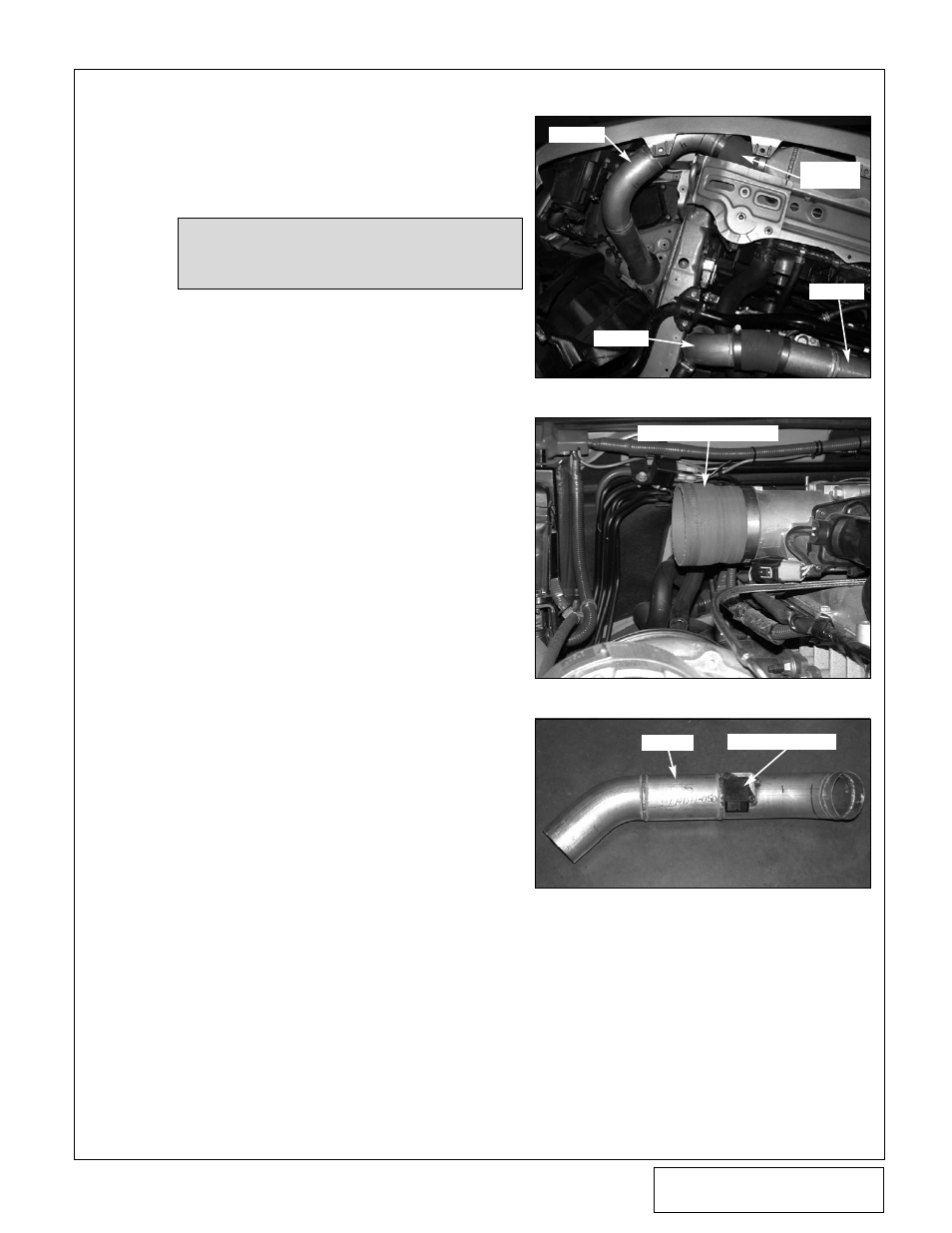

R. Install the straight section of discharge duct
“D” up through the previously cut Ø3" hole.
Attach the curved end to the previously
installed elbow and secure using the provided
#40 hose clamp. (See Fig. 6-m.)
S. Install one of the provided Ø3" x Ø2.75"
reducer sleeve onto the open end of duct “D”
and secure using the provided #40 clamps.
T. Secure the remaining Ø3" x Ø2.75" reducer
sleeve to the throttle body using the supplied
#40 hose clamp. (See Fig. 6-n.)
U. Secure the previously removed MAF electron-
ics to Tube “E” using the supplied 8-32 x .50"
hardware. (See Fig. 6-o.) Make sure the
OEM O-ring is in place and is undamaged.
NOTE: Rotate the previously installed 25°
elbow to allow best tube engagement
and core support clearance.
