D. Install the original power steering pump belt.

Using the factory tensioner screw snug the
power steering belt. Tighten both power
steering pump mounting bolts.

Install mounting bracket top plate. Center on

dowel pins and tighten the five socket head
cap screws. Verify that the plate is fully seated
on mounting surface. (See

Fig. 16-c.)

Install the grooved idler pulley onto the ma-

chined idler stud. Using thread-locker, tighten
the 5/16" nut and washer. (See

Fig. 16-b.)

G. Insert stud through mounting bracket side plate

and start the thick washer and 5/16" nut.

H. Attach the side plate to the top plate and to the

mounting bracket using four 1" bolts and
washers. (See

Fig. 16-c).

Thread a 1/4” nut onto the long 1/4" tensioner

bolt and thread the bolt into the side plate.

Press down firmly on the tensioner idler and

thread 1/4" bolt into the side plate until it
touches the tensioner stud. Tighten 5/16" nut on
outside of tensioner stud. Tighten the jam nut
on the 1/4" tensioner bolt.

K. Reinstall and tighten the two lower engine

mount to frame bolts.

Verify that the supercharger belt does not

contact the upper driver side motor mount. If
contact is detected, tighten the belt tensioner
until clearance is achieved.

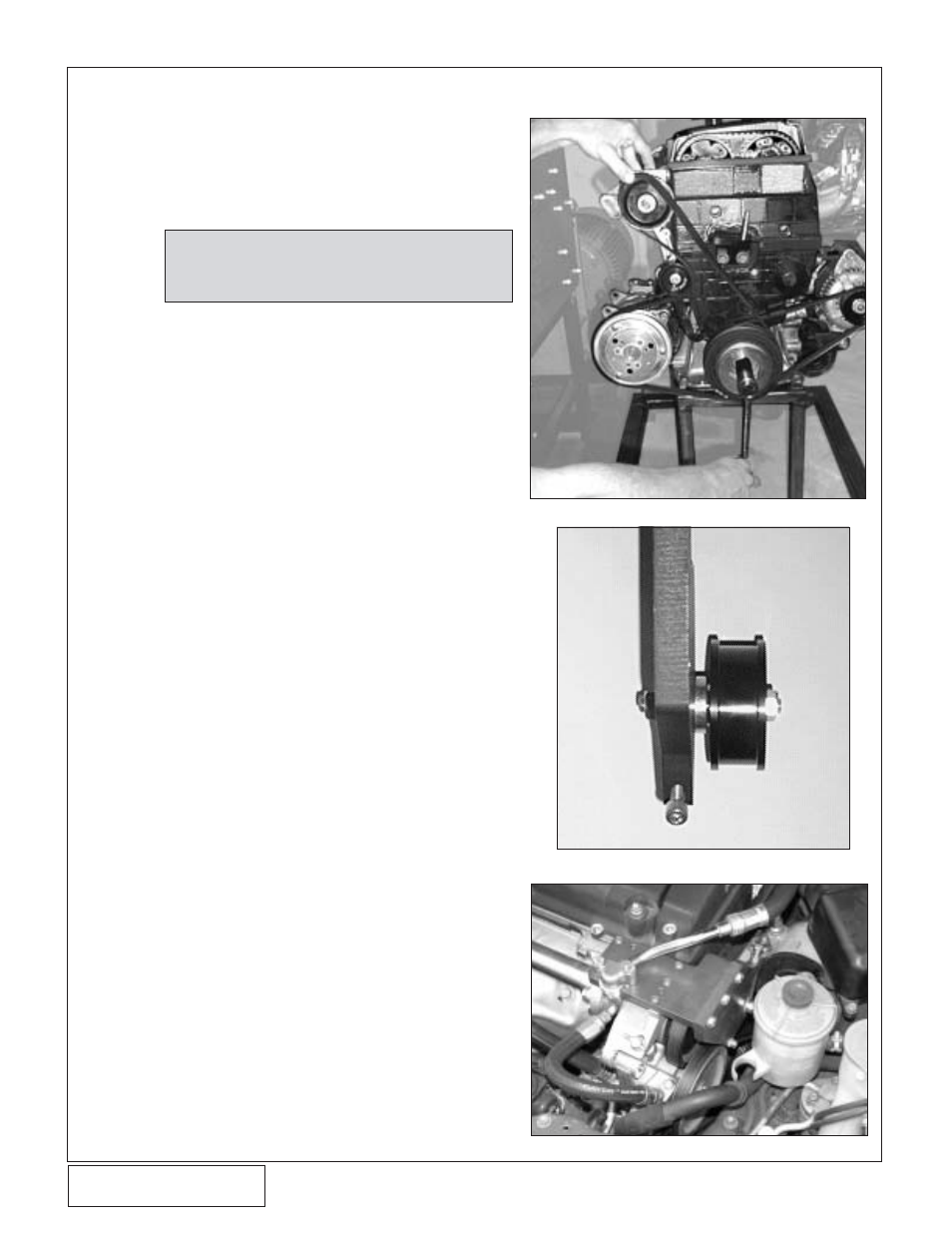

Fig. 16-b

Fig. 16-c

16.

SUPERCHARGER DRIVE BELT INSTALLATION

A. Insert the keyway into the extended drive input

shaft and install the pulley. Using thread-
locker, install the 3/8-24 bolt through the
washer and retainer and into the input shaft.
The pulley retainer bolt will be tightened after
the supercharger belt is installed.

B. Install the supercharger drive belt. Once the

belt is fully routed except for going around the
supercharger pulley, start the belt on the
supercharger pulley and use a ratchet on the
harmonic damper bolt to manually rotate
engine until the belt is on and centered. (See
Fig. 16-a.)

C. Tighten the input shaft bolt as much as pos-

sible until belt slippage occurs. Grab the belt
on each side of the supercharger pulley with
one hand and squeeze together. Tighten the
input shaft bolt to 35 ft/lbs.

Fig. 16-a

NOTE:

Do not hammer or pry on the supercharger

pulley. Heat gently with a propane torch if

required for easier installation.
