Vortech 1994-2001 Acura Integra GSR User Manual

Page 19

P/N: 4HC020-030

28JAN04v2.1(Acura Integra LS (4HC..030v2.1))

12. RADIATOR HOSE AND WATER NECK INSTALLATION

A1. GSR and LS Models

Install the supplied water neck in place of

the removed factory water neck.

Replace the hose running from the bottom

of the throttle body to the engine block/
water neck with the supplied 5/16" hose.
Secure with the factory clamps.

Trim about 1" from the straight end of the

supplied radiator hose and install. (See

Fig.

12-a.)

A2. Type R

Disconnect the upper radiator hose from

the radiator.

Trim about 1/2" from the longer straight end

of the supplied radiator hose.

Install the cut end of the supplied radiator

hose onto the radiator. Cut the factory
radiator hose as needed to connect to the
installed hose using the supplied hose
coupler.

Secure the hose coupler using the supplied

#24 hose clamps. Use the factory hose
clamp to secure the supplied radiator hose
to the radiator. (See

Fig. 12-b.)

B. If necessary for supercharger mounting plate

clearance, disconnect the lower radiator hose
from the radiator. Trim about 2" off and re-
install. Use the section of hose just removed to
protect the hose from any sharp or metal
objects.

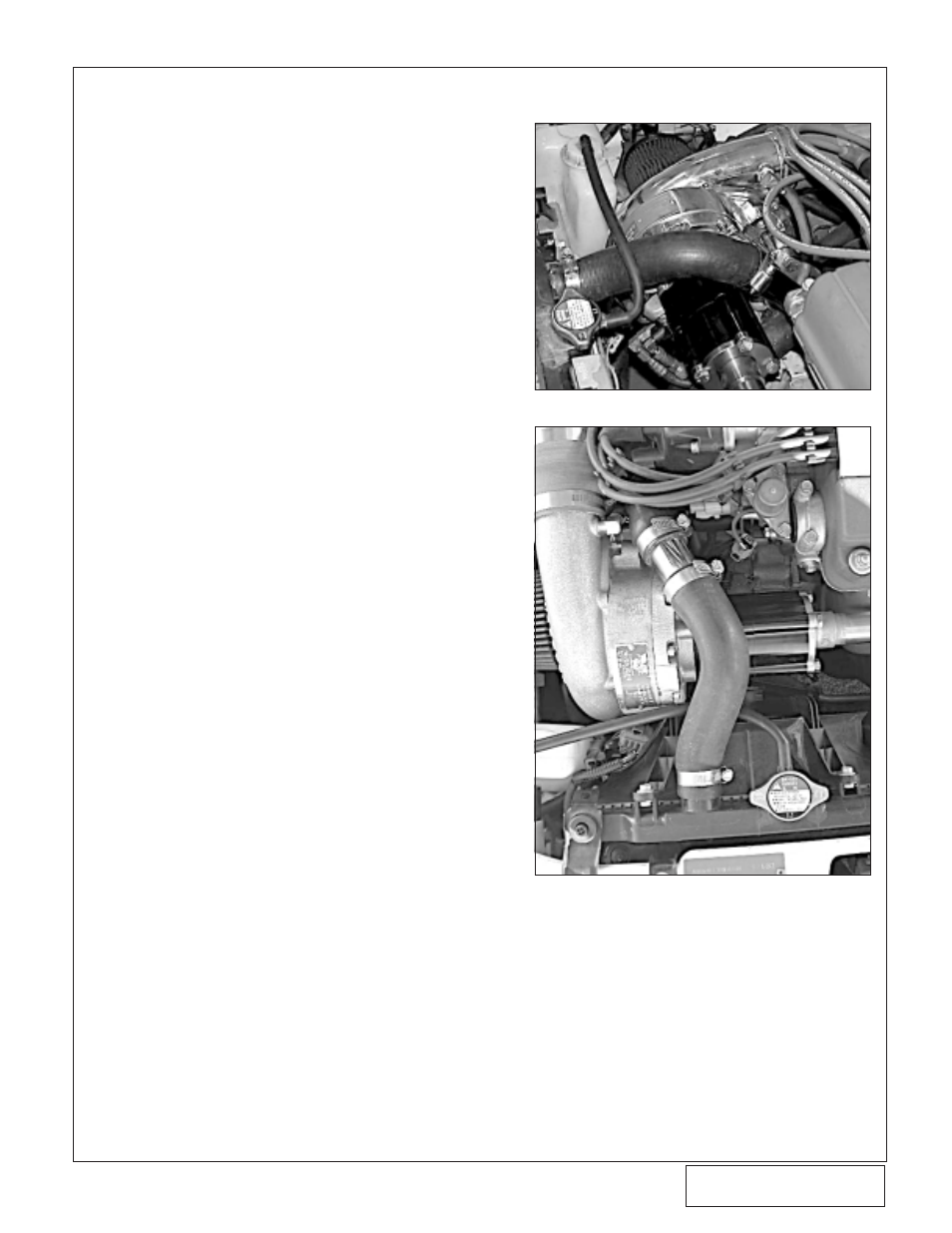

Fig.12-a / GSR and Ls Models

Fig.12-b / Type R Model
