STANDARD KIT DISCHARGE DUCT INSTALLATION

A. Loosely install the supplied sleeves on both

ends of the supplied discharge duct. The
2-3/4" to 2-1/2" reducer sleeve should be
placed on the supercharger.

B. Put the discharge duct into position and slide

the sleeves onto the supercharger and the
throttle body.

C. Tighten the hose clamps on both ends of the

discharge duct.

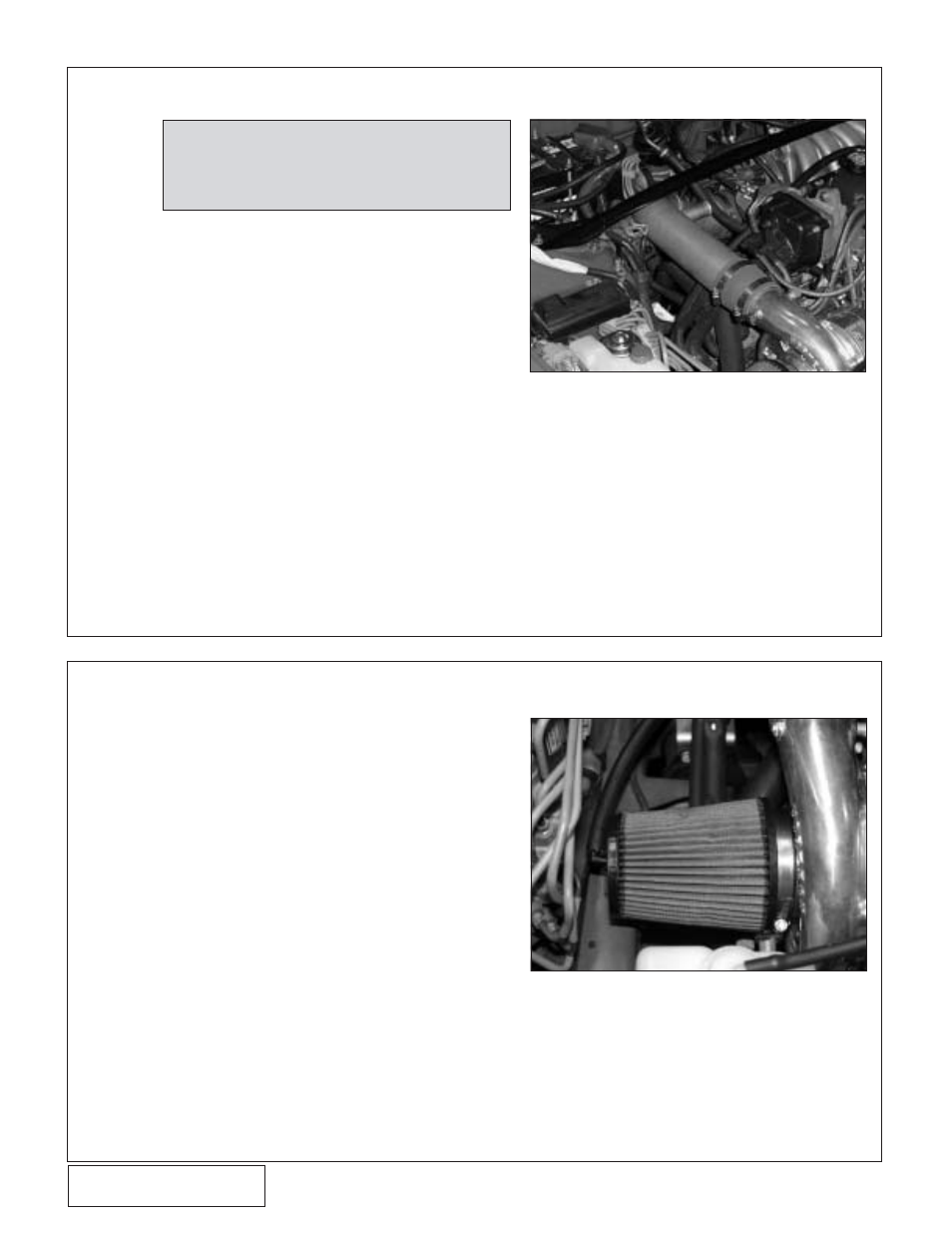

Fig. 13-a / (GSR shown, others similar.)

Fig. 14-a / GSR inlet

14.

AIR FILTER INSTALLATION

A. Drill a 5/16" hole in the end of the supplied air

filter.

B. Install the air filter on the supercharger inlet

and tighten the clamp.

C. Insert the supplied plastic elbow into the end of

the air filter and attach to the valve cover vent
with 3/8" hose.

NOTE:

If a high-output kit (with charge air cooler) is

being installed, complete the steps included

in the “Maxflow Power Cooler Installation

Instructions” (P/N: 8N020-110) and then pro-

ceed with Step 14.
