MAIN BRACKET INSTALLATION

(For Acura Integra GSR models, skip Step A and

proceed with

Step B.) Bolt the supplied mounting

bracket spacer block to the front of the cylinder
head using the two supplied M10 x 35 bolts. (See
Fig. 9-a.) The spacer block is in the supercharger
mounting plate assembly.

Lower the supplied cast aluminum mounting

bracket assembly (w/driveshaft attached) in front
of the engine and push tightly against the ex-
haust manifold. Lower the power steering pump
between the mounting bracket and the vehicle
frame.

Each of the two lowest holes in the mounting

bracket require a supplied .304" spacer between
the mounting bracket and the block. (See

Fig. 9-

b.)

Install the two shortest factory power steering

bracket bolts and the two supplied M10 x 35 (LS
models use 3/8-16 x 1.0) bolts in each of the four

Fig. 9-b

POWER STEERING PLUMBING

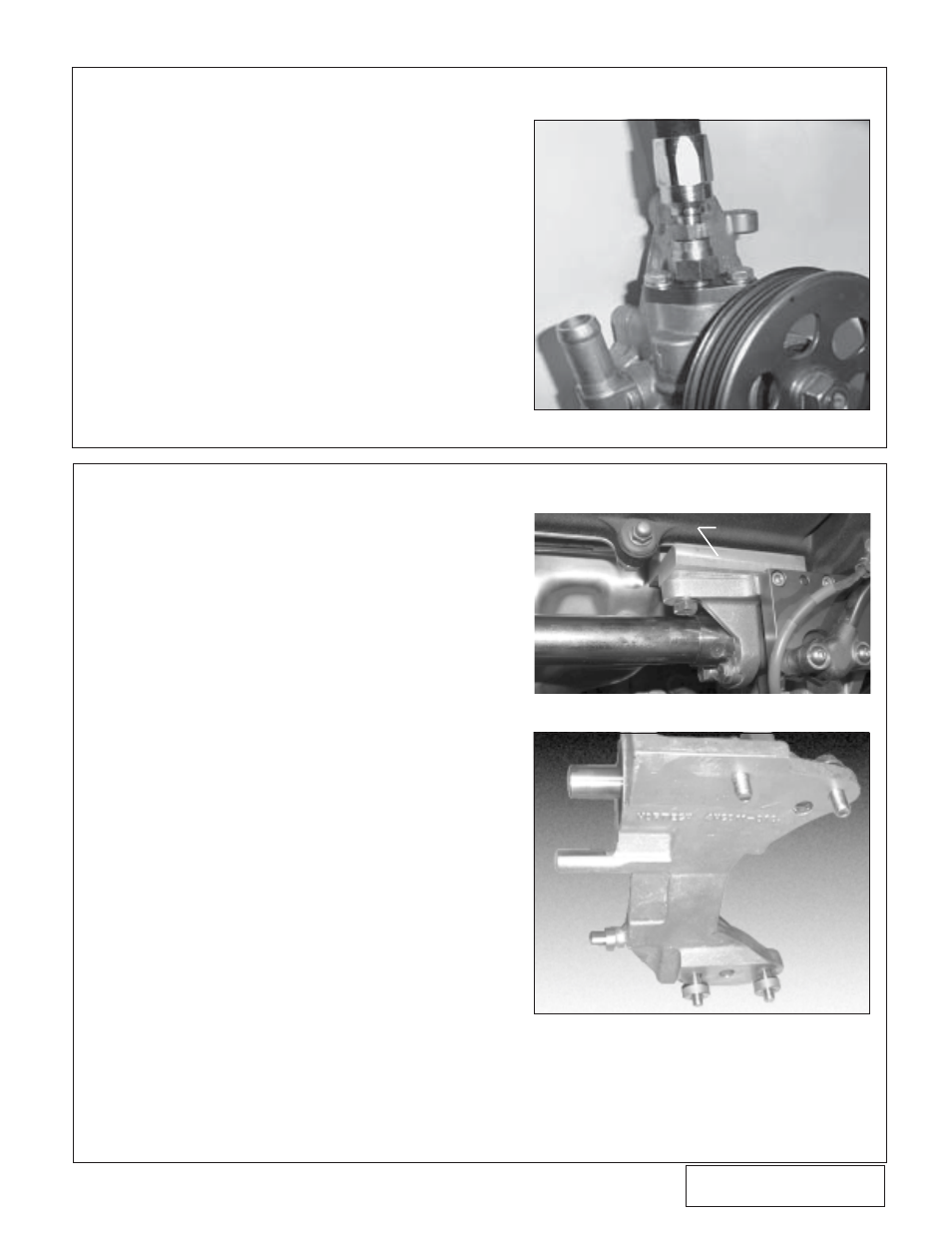

A. Select the supplied pair of power steering

fittings that match the power steering pump
and the metal power steering tube. The correct
female fitting will fit snugly over the O-ring on
the power steering tube.

B. Install and lightly coat the O-ring onto the

supplied power steering pump fitting with
Honda power steering fluid and insert into the
power steering pump. Rotate fitting until the
bolt holes line up with the pump. Secure the
fitting to the power steering pump using the
supplied 6mm bolts and washers.

C. Attach the straight fitting end of the supplied

power steering hose to the just installed power
steering pump fitting and tighten. (See

Fig. 8-

a.)

Fig. 8-a

Fig. 9-a / LS Models Only

MTNG BRKT SPACER BLOCK
