11. DISCHARGE DUCT INSTALLATION

A. Remove the two screws securing the power

steering cooler (if equipped). Rotate the

power steering cooler so that the passenger’s

side is pointed upwards towards the super-

charger. Re-install the driver’s side screw and

secure the passenger’s side with zip-ties.

B. Install a 2.75" sleeve on the supercharger

discharge duct and secure with a #44 hose

clamp. From underneath the vehicle, install

the duct onto the supercharger discharge.

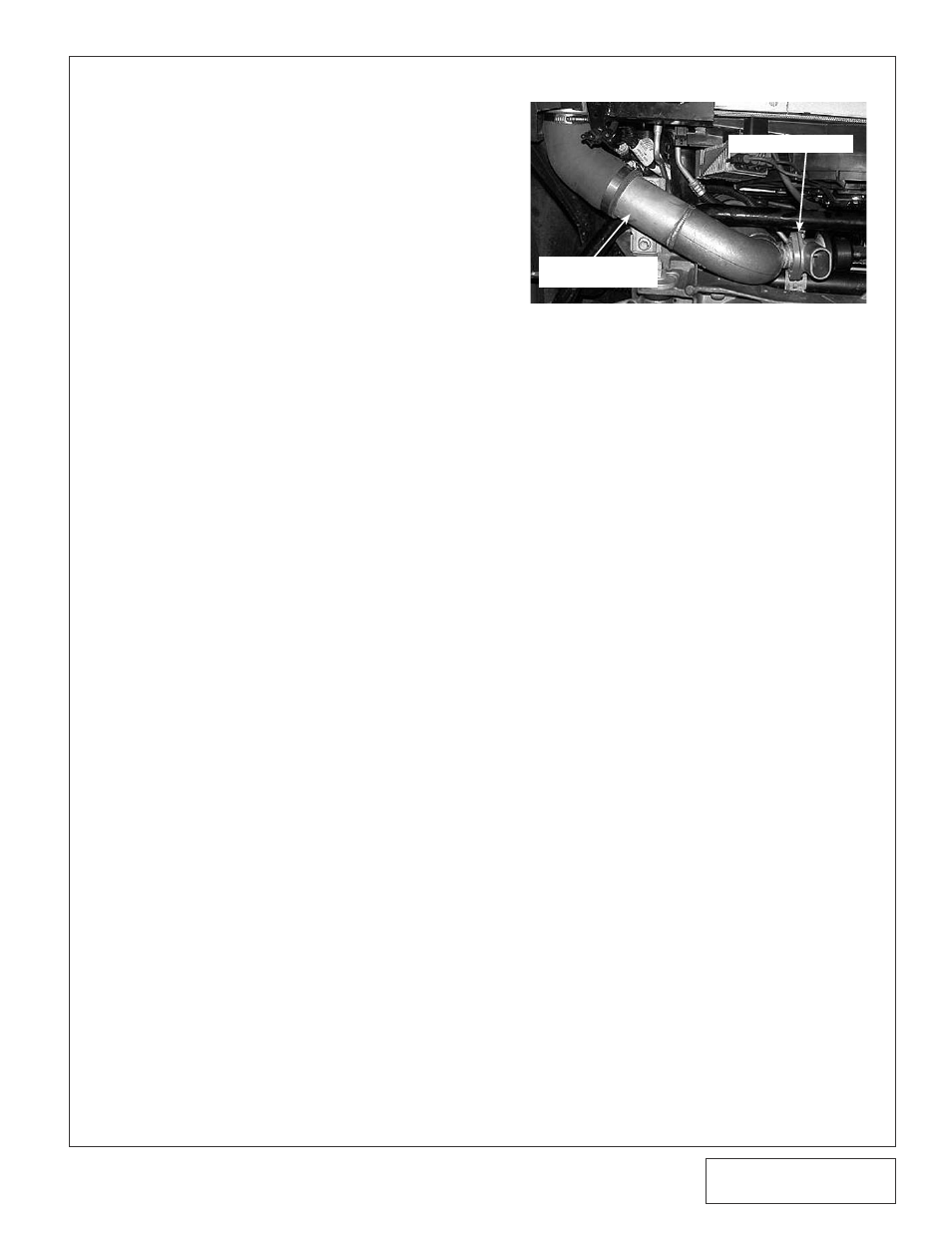

Fig. 11-a

S/C DISCHARGE

DUCT

BYPASS VALVE
