Remove the factory M16 socket head oil gal-

ley plug on the driver’s side of the engine.

Using the supplied crush washer, install the

supplied M16 to –4 adapter into the engine

block.

Connect the 90º end of the supplied oil feed

hose to the fitting and tighten.

Temporarily cover the open end of the oil

feed line to protect it from debris until con-

necting it to the supercharger.

Use tie-wraps to secure the line and protect it

from kinking, abrasion, and high heat areas.

4. OIL FEED LINE INSTALLATION (ENGINE OIL-FED KITS ONLY. APPLICATIONS

WITH A V3 SUPERCHARGER SKIP AHEAD TO STEP 5)

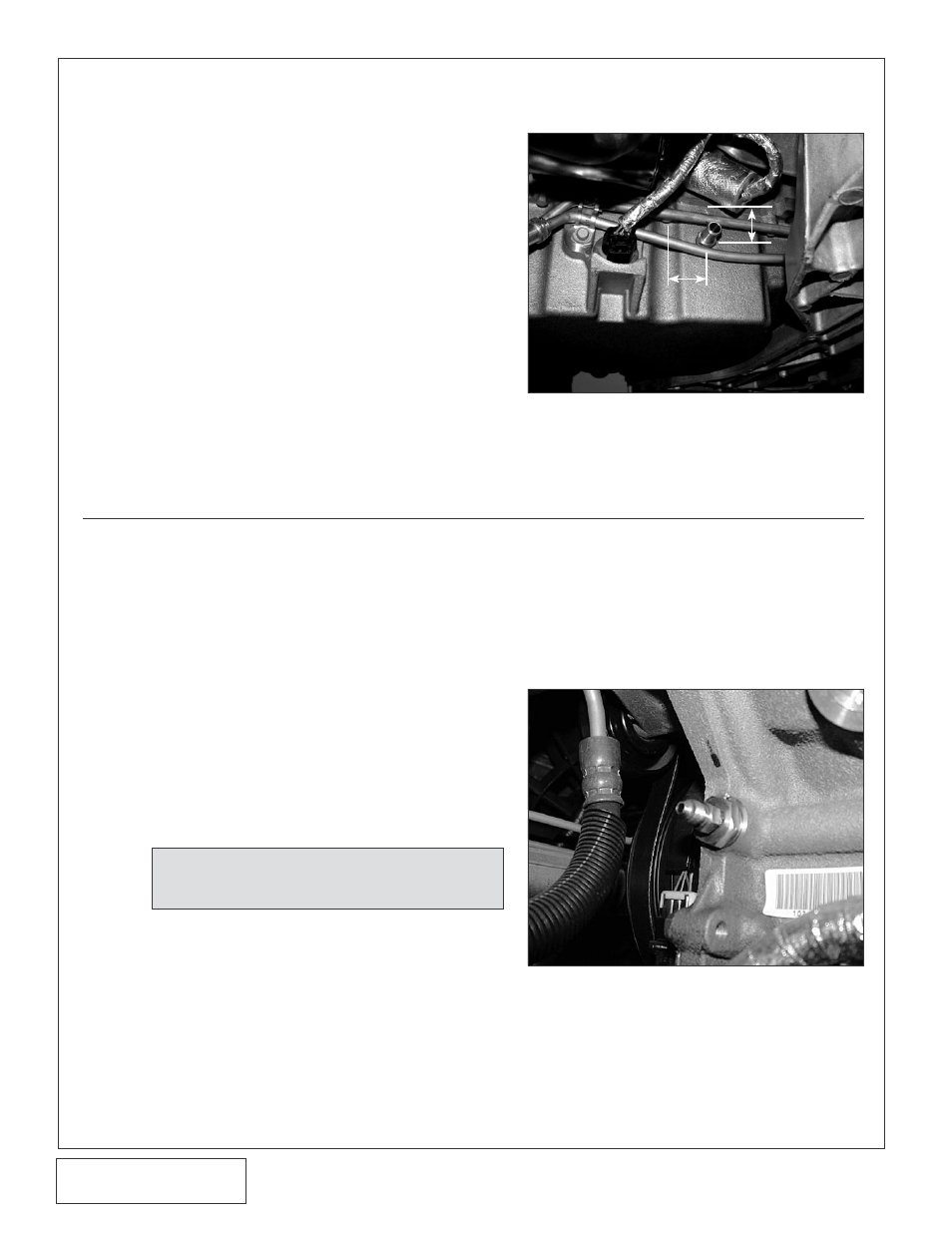

Fig. 4-a

chips. Apply a small amount of silicone sealer

to the new threads. Apply more sealer to the

3/8"NPT hose fitting and secure in hole.

Make sure a seal is formed all around the fit-

ting.

G. Temporarily cover oil drain barb fitting to keep

out debris.

Drain the engine oil (if needed), install a new

filter and refill with fresh oil

Fig. 3-b (C6)

1-1/2"

NOTE: The oil feed will be routed forward and

across the front of the engine before being

connected to the supercharger.

3. OIL DRAIN LINE INSTALLATION, CONT’D (ENGINE OIL-FED KITS ONLY.

APPLICATIONS WITH A V3 SUPERCHARGER SKIP AHEAD TO STEP 5)
