Vortech 2005-2008 C6 Corvette - Manual (Page 21)

P/N: 4GS020-010
©2009 Vortech Engineering, LLC
All Rights Reserved, Intl. Copr. Secured
12MAY09 v3.1 05-08Corvette(4GSv3.1)
12

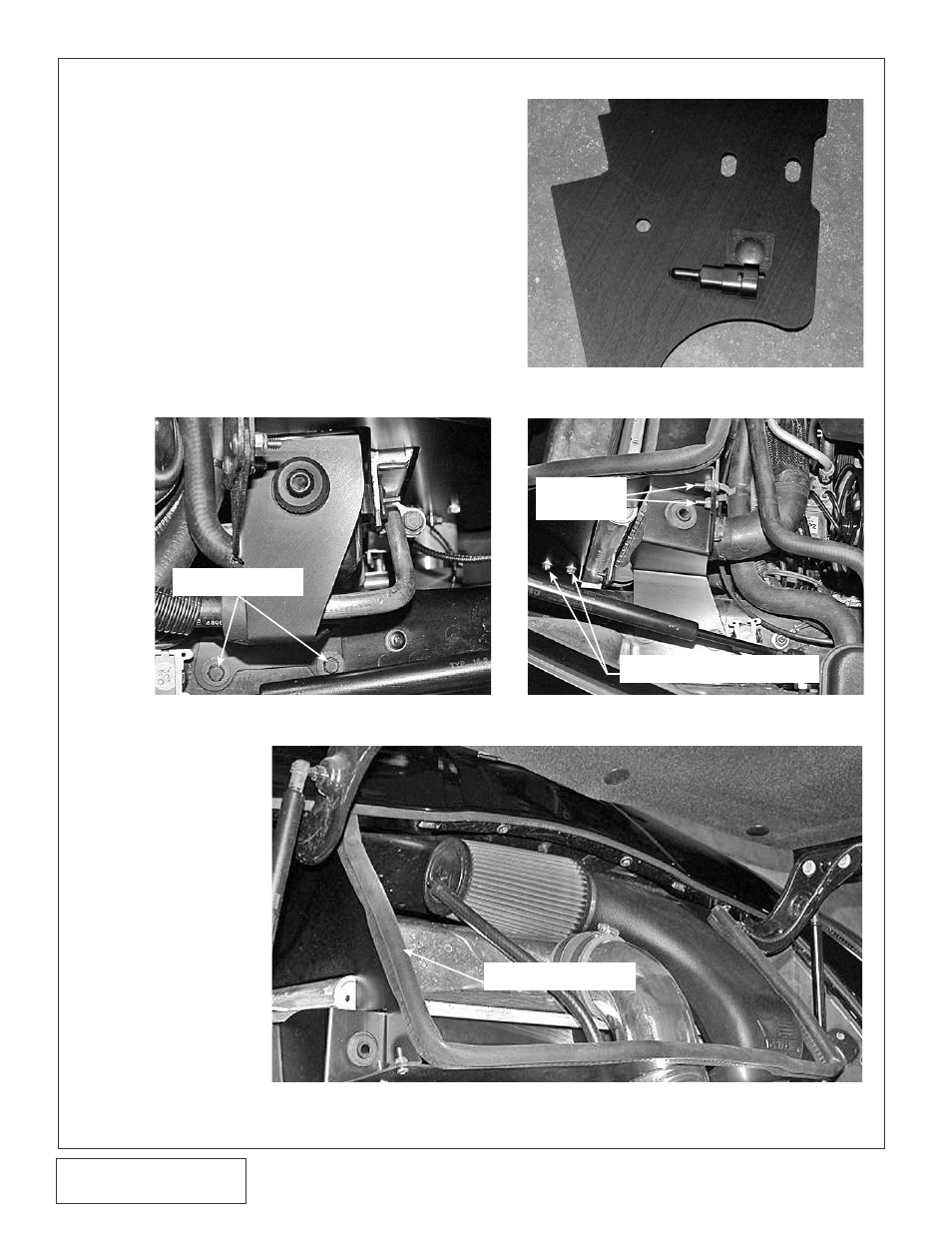

Fig. 10-h
Fig. 10g
G. Attach the lower part of each panel to the
studs on the charge cooler and secure with
the supplied nuts and washers.
(See Fig. 10-g.)
H. Install the supplied weather strip around the
upper edge of the radiator shroud to seal it to
the hood. (See Fig. 10-h.)
10. RADIATOR SHROUD INSTALLATION, cont’d.
SUPPLIED 5/16" NUTS &
WASHERS
SUPPLIED
WEATHERSTRIP
Fig. 10-f
Fig. 10-e (Air Temp Sensor)
ORIGINAL
HARDWARE
SUPPLIED
10-24
HARDWARE
