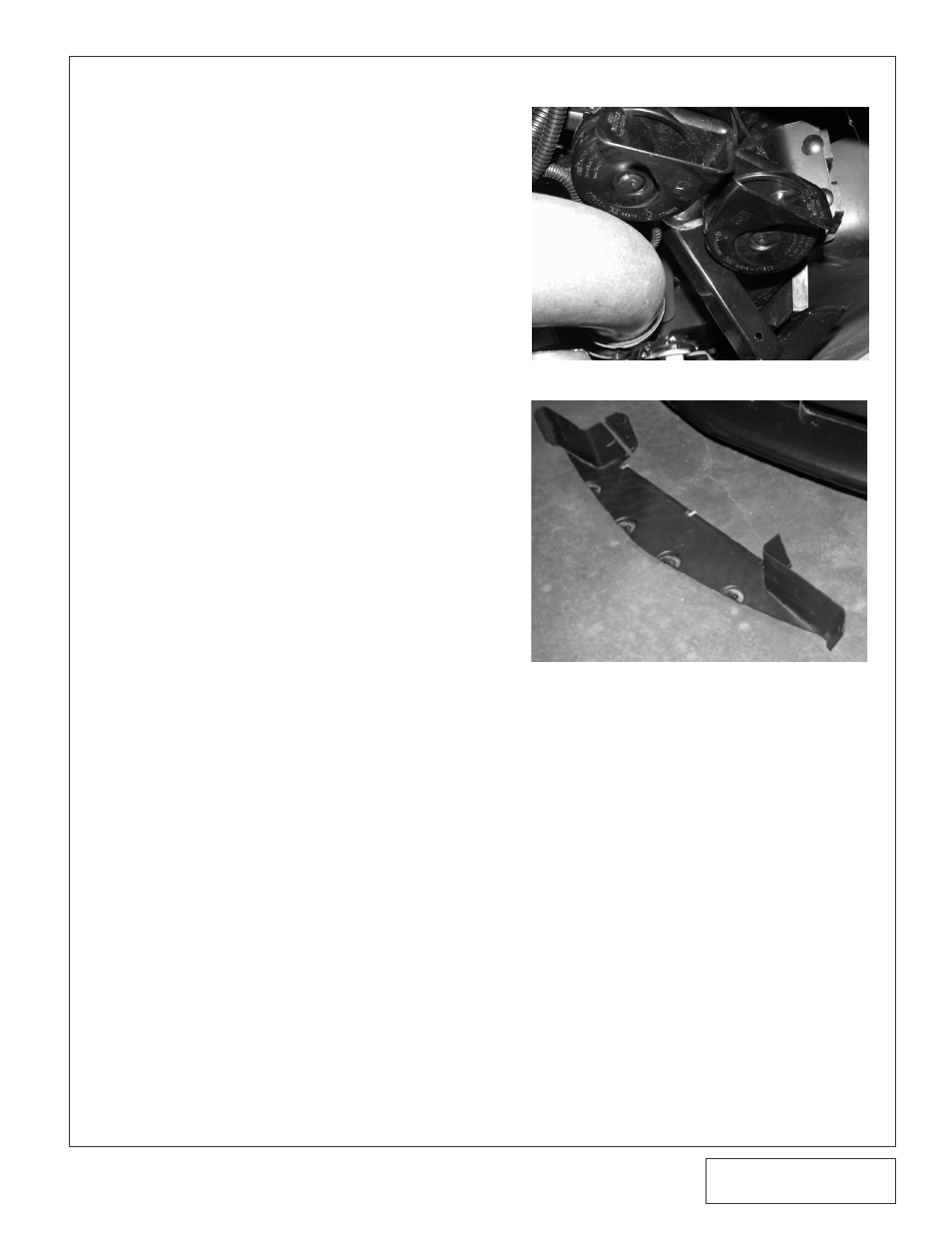

Fig. 8-a
Fig. 8-b
A.
Remove the passenger’s side inner fender
liner from in front of the wheel.
B.
Remove the horn assembly and re-attach in
the location shown in Fig. 8-a using the sup-
plied 10-24 hardware. Bend the horn bracket
so that the horns are horizontal, will not fill
with water and do not contact anything.
C.
Test the horns. If they are not working proper-
ly, bend the bracket until they are not touch-
ing anything.
D.
Remove the radiator shroud in front of the
radiator. Loosen the lower trailing edge of the
bumper cover.
E.
Trim the lower radiator inlet shroud as
required to clear the charge cooler as shown.
(See Fig 8-b.) Not necessary to remove from
vehicle.
F.
Install the supplied support brackets onto the
CAC as shown leaving as much of the 5/16"
stud protruding as possible. (See Figs. 10-b,
10-c.)
G. Lower the CAC assembly in front of the radia-
tor so that each bracket slides over the flange
on the A/C condenser and secures the CAC.
8. CHARGE AIR COOLER INSTALLATION
