J. Take the fuse box mounting bracket and mount
it to two of the original battery mounting plate
holes using two of the original bolts to secure it.
(See
Fig. 7.) Attach the fuse box to the bracket
and secure it with a 1/4”-20 x 1/2” bolt and nut.
K. Reinstall the plastic skirting to the car and inner
fender.
(Cougar only.) Reinstall the driver’s side head-
light.

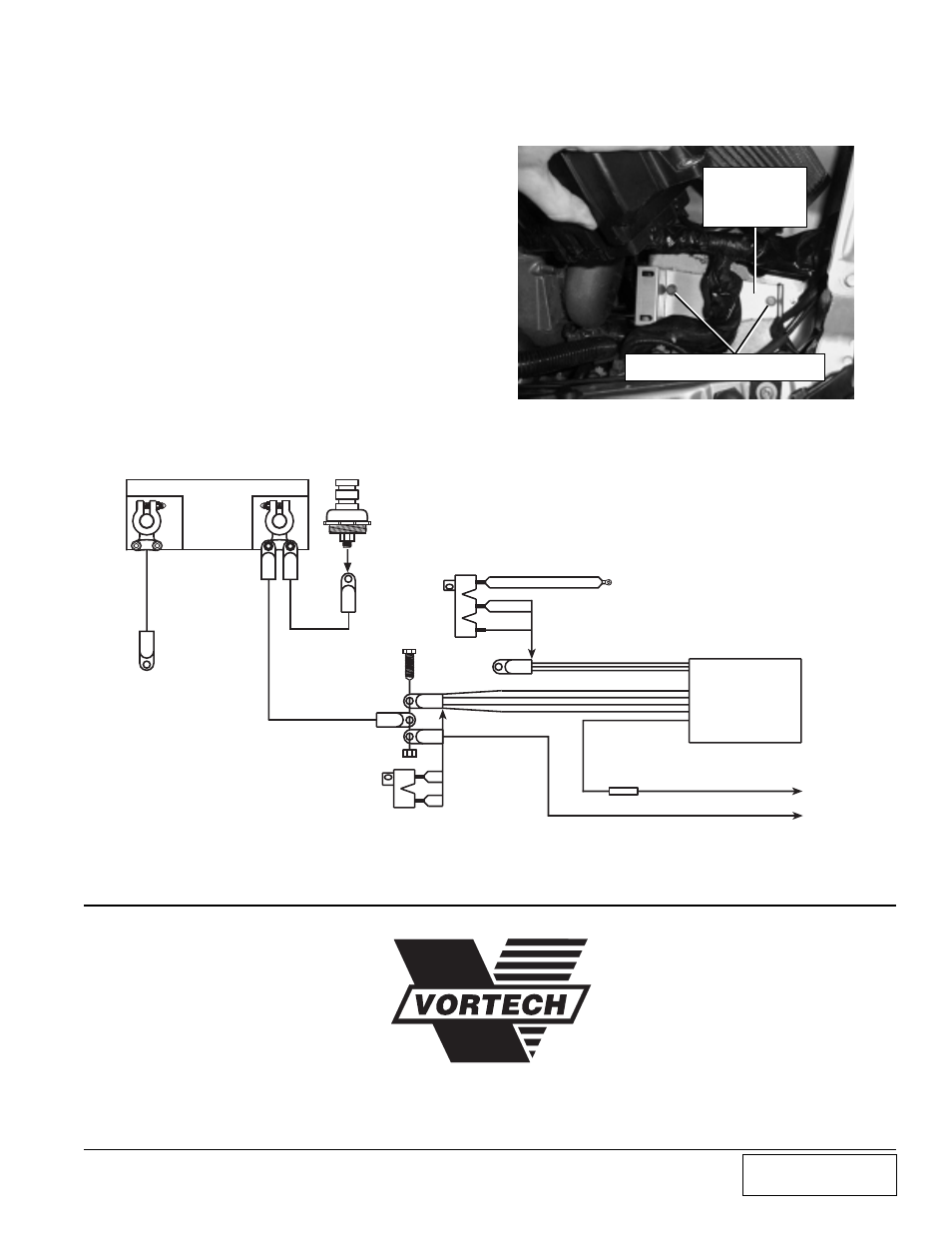

COUGAR/COUNTOUR BATTERY RELOCATION, cont’d.
Fig. 7
TWO ORIGINAL BOLTS
BATTERY
MOUNTING
PLATE
Fig. 8
Dyna
Batt
_
+
COUGAR BATTERY RELOCATION WIRING SCHEMATIC
SUPPLIED 1/0
BLACK WIRE
GROUND TO
CHASSIS
SUPPLIED 1/0
RED WIRE
DISTRIBUTION
MANIFOLD
SUPPLIED 1/4"
NUT/BOLT
CUT 4 RED WIRES. STRIP AND CRIMP
INTO A LUG END TERMINAL
DISCARD DISTRIBUTION MANIFOLD.
DISTRIBUTION
MANIFOLD
GROUND
TO BODY
NEGATIVE WIRES
(SEE STEP H)
TO STARTER
CUT STOCK TERMINAL
FUSABLE LINK
POSITIVE WIRES(SEE STEP G)
DISCONNECT FROM BODY.
ONLY CUT 3 NEGATIVE WIRES
STRIP AND CRIMP INTO A LUG END TERMINAL
DISCARD DISTRIBUTION MANIFOLD.
POWER
DISTRIBUTION
BOX
TO STARTER
(DO NOT CUT BLACK WIRE)
