Vortech Ford SVT Contour/Mercury 2.5L V6 Cougar User Manual
Page 18

P/N: 4FS020-010
©2002 Vortech Engineering, Inc.
All Rights Reserved, Intl. Copr. Secured
11JAN02 V2.0
(Cougar (4FS V2.0))

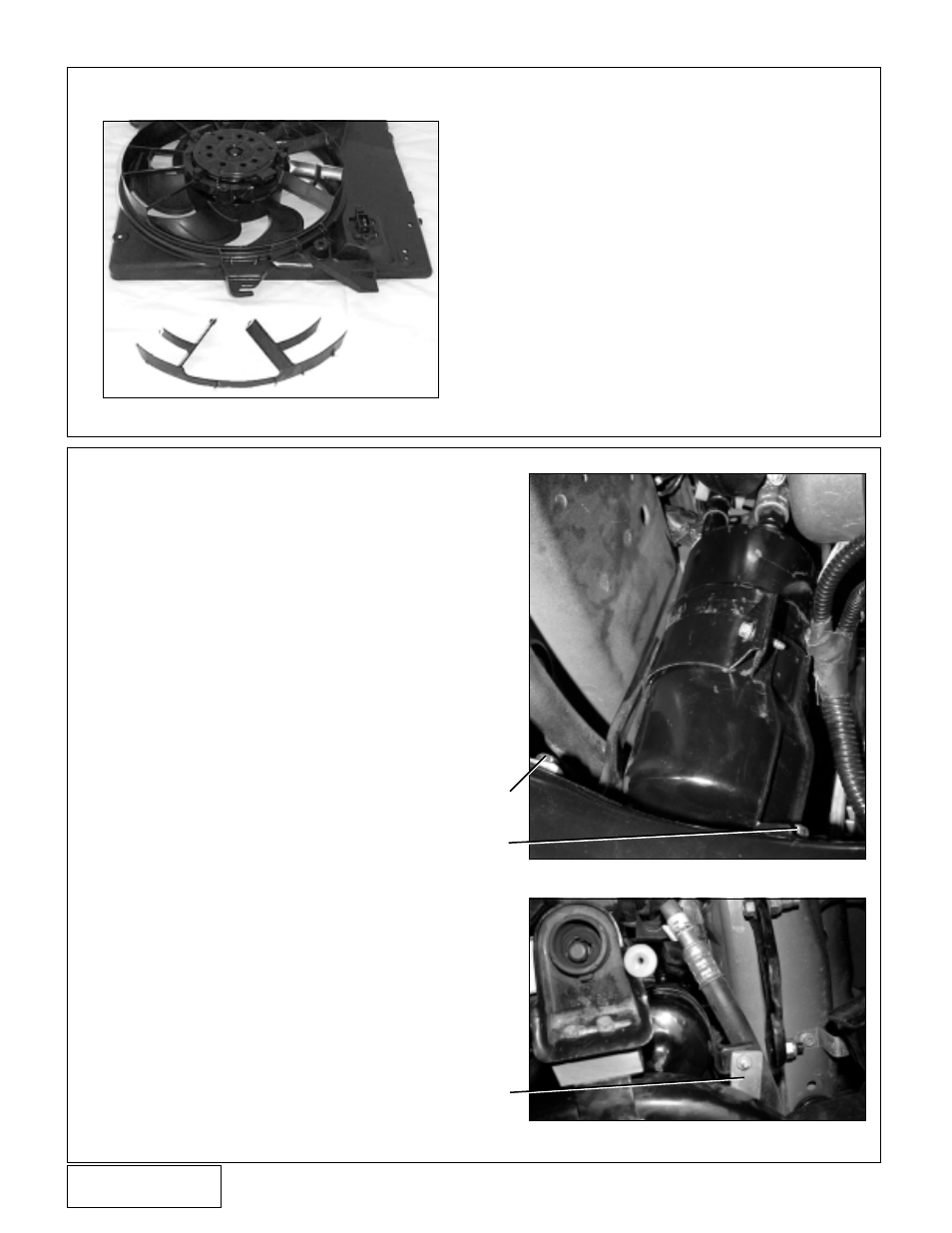

Fig. 9-c / Driver’s Side.
9.
FAN SHROUD MODIFICATION, cont’d.
10
10. A/C CANISTER RELOCATION
A. Remove the bolt closest to the driver’s side of the
A/C canister bracket so that the canister can
swivel and have a good amount of play.
B. Follow the hard lines from the canister that runs
to the front of the vehicle. From underneath the
vehicle, push the plastic harness while moving
the lines down so the canister is able to move
forward. (See
Fig. 10-a.)
C. On the side you removed the bolt, take the
supplied spacer and push the canister froward
using the 1/4” hardware to secure it. This spaces
the canister forward enough to clear the inlet
tube. ( See
Fig. 10-b.)
Fig. 10-a
Fig. 10-b
REMOVE BOLT TO
INSTALL RELOCATION TAB
LOOSEN BOLT TO ALLOW
CANISTER TO SWIVEL
BOTTOM VIEW OF
INSTALLED RELOCATION TAB
