Chapter 2: Installation airFiber ® AF24 User Guide
Ubiquiti Networks, Inc.
Installation Requirements
• 17 mm (11/16") wrench
• 13 mm (½") socket wrench or driver
• Clear line of sight between airFiber radios
• Clear view of the sky for proper GPS operation
• Mounting location with < 0.5° displacement due to twist
and sway under wind loading
• Mounting point:
• At least 1 m (3.28 ft) below the highest point on the
structure
• For tower installations, at least 3 m (9.84 ft) below the
top of the tower
• Ground wires – min. 8 AWG (10 mm 2 ) and max. length:
1 m (3.28 ft). As a safety precaution, ground the
airFiber radios to grounded masts, poles, towers, or
grounding bars.
WARNING: Failure to properly ground your
airFiber units will void your warranty.
• (Recommended) 2 Outdoor GigE PoE surge protectors
Note: For guidelines about grounding and
lightning protection, follow your local electrical
regulatory codes.
• Outdoor, shielded Category 5e (or above) cabling
and shielded RJ-45 connectors should be used for all
wired Ethernet connections. Category 6 is required for
installations with long cable runs (up to 100 m).
We recommend that you protect your networks from
the most brutal environments and devastating ESD
attacks with industrial-grade shielded Ethernet cable
and shielded RJ-45 connectors from Ubiquiti Networks.
For more details, visit
www.ubnt.com/toughcable
Installation Overview
We recommend that you configure your paired airFiber
radios before mounting. Below is an overview of the
installation with specific details on the following pages:
• Connect Power over Ethernet to the Data port, and
connect an Ethernet cable between your computer and
the Config port.
• Configure the device settings in the airFiber
Configuration Interface.
• Once configuration is complete, disconnect the cables
to move the airFiber radios.
• Reconnect at the site.
• After you have mounted the airFiber radios, establish
and optimize the RF link.

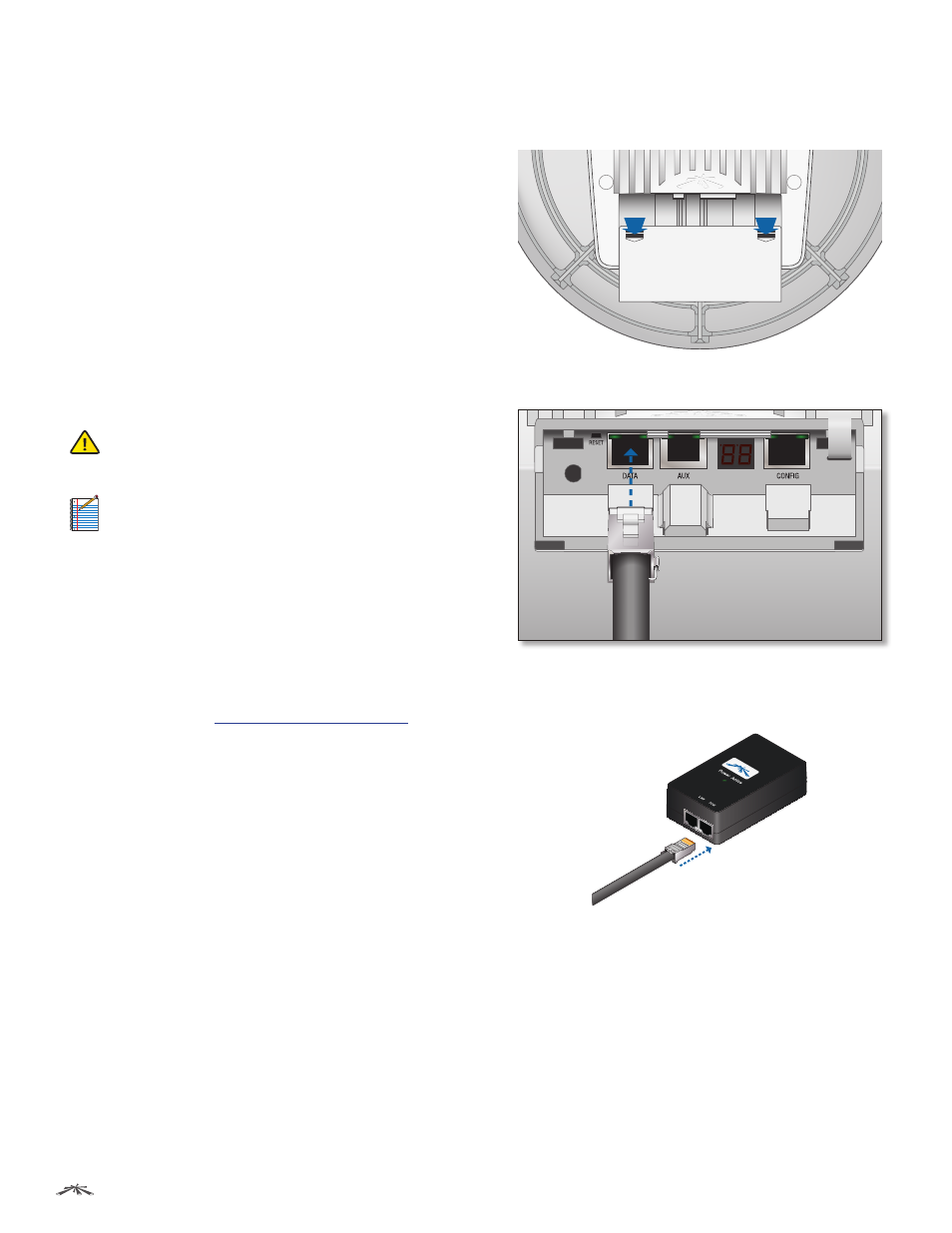

Connecting Power over Ethernet
1. Press down on the indicator arrows and slide the Port
Cover off.
2. Connect an Ethernet cable to the Data port.
3. Connect the other end of the Ethernet cable from the
Data port to the Ethernet port labeled POE on the PoE
Adapter.
