Ubiquiti Networks airFibe24 User Manual
Page 16
13
Chapter 2: Installation
airFiber
®
AF24 User Guide
Ubiquiti Networks, Inc.

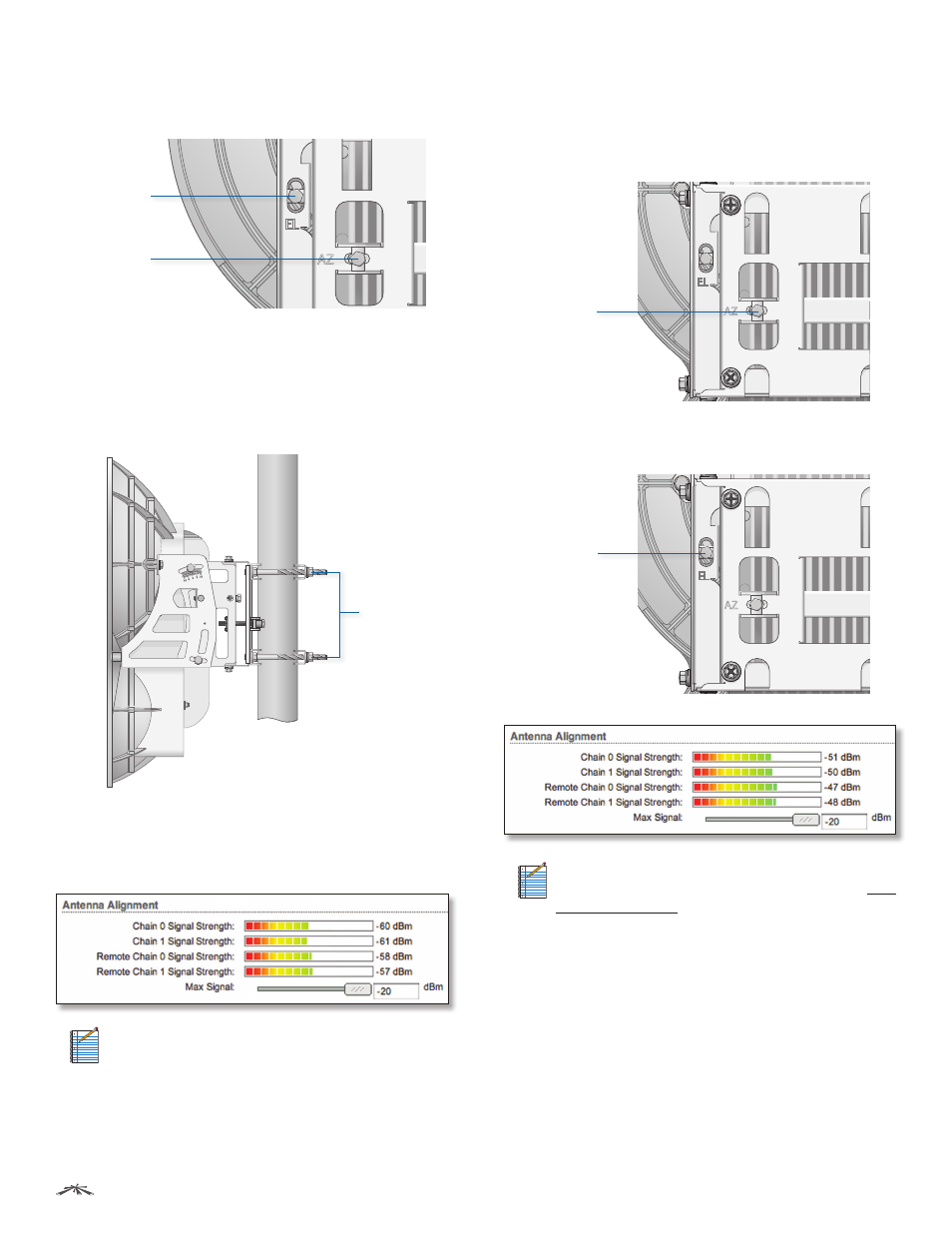

2. For the Master and Slave, ensure the Azimuth (AZ) and
Elevation (EL) Adjustment Bolts are in the middle of their
adjustment ranges.
Elevation (EL)
Adjustment Bolt
Azimuth (AZ)
Adjustment Bolt
3.
Master
Aim the Master at the Slave. If necessary, adjust
the Master’s position on the pole:
a. Loosen the Hex Nuts.
b. Adjust the Pole Mount Bracket and Pole Clamps.
c. Tighten the Hex Nuts.
Hex Nuts
Master
4.
Slave
Aim the Slave at the Master to achieve the
strongest Signal Strengths for the Slave. If necessary,
adjust the Slave’s position on the pole.
Note:
The Signal Strength bar graphs display the
absolute power level (in dBm) of the received
signal for each chain. Lower values indicate
stronger received signal levels.
5.
Master
Adjust the azimuth and elevation of the Master
until the strongest Signal Strengths are displayed for
the Master.
a. Sweep the Azimuth (AZ) Adjustment Bolt of the Master
through its adjustment range.
Master
Azimuth (AZ)
Adjustment Bolt
b. Sweep the Elevation (EL) Adjustment Bolt of the Master
through its adjustment range.
Master
Elevation (EL)
Adjustment Bolt
Note:
If the Antenna Alignment window displays
“Overload” to indicate overload condition, see ”RX
Gain” on page 24 for more details about RX
Gain and overload condition.
