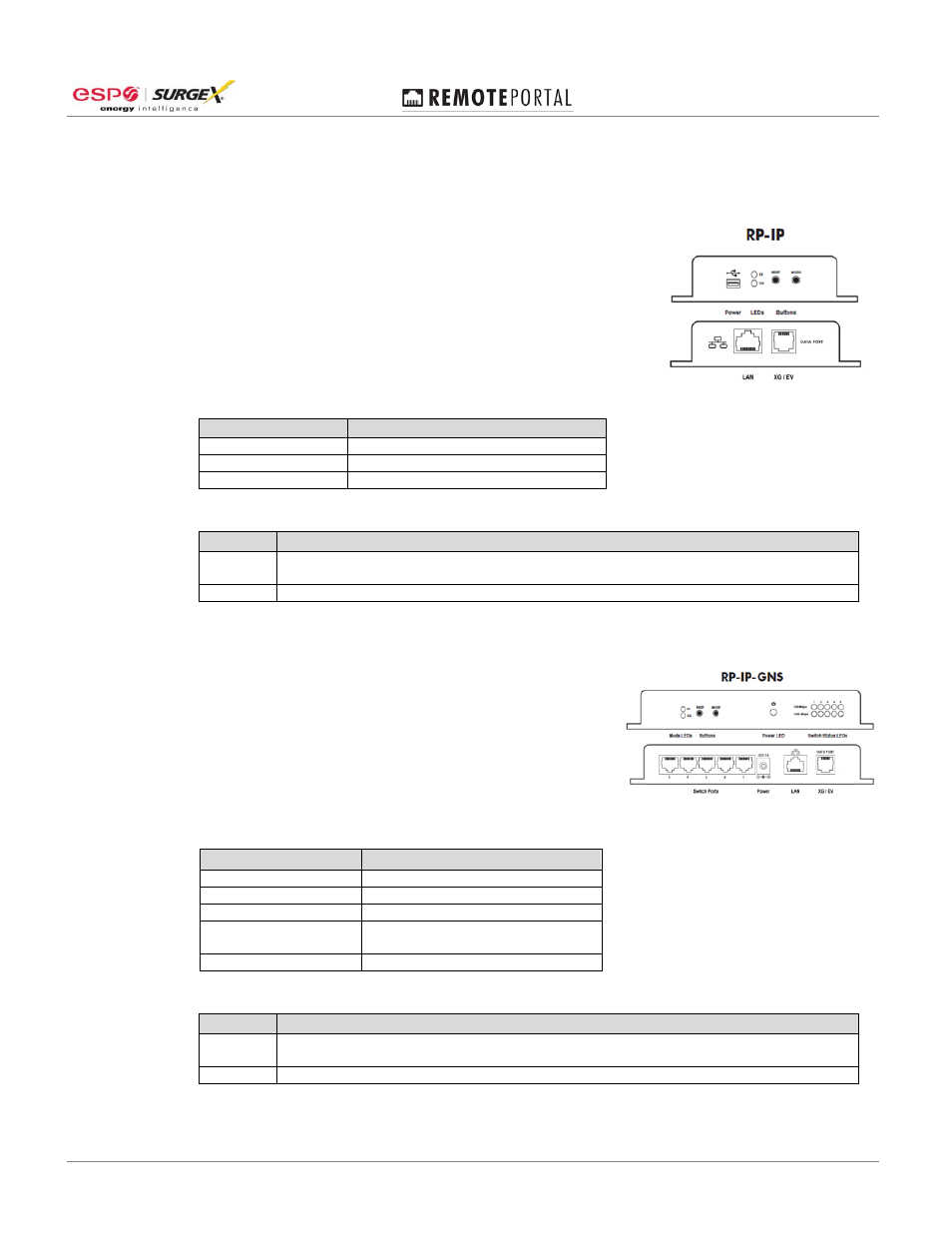

User Manual
I.
HARDWARE:
A.
RP-IP
1. LAN: Connect to local network using Cat5e patch cable
2. XG / EV Data Port: Connect to XG or EV product using 6p6c
RJ25 patch cable with Standard pin out
3. Power: Input power connection. USB Mini B, 5VDC, 500mA
minimum
4. LEDs:
LED State
Meaning
EV, XG Toggle
Establishing network connectivity
EV solid, XG off
enVision operating mode
XG solid, EV off
Next Gen operating mode
5. Buttons:
Button
Action
Reset
Press and hold for 5 seconds, then release to reset the unit to factory defaults. Will reset IP
settings to factory default.
Mode
Press and hold for 5 seconds, then release to toggle between EV and XG operating modes
B.
RP-IP-GNS
1. LAN: Connect to local network using Cat5e patch cable
2. XG / EV Data Port: Connect to XG or EV product using
6p6c RJ25 patch cable with Standard pin out
3. Power: Input power connection. Barrel, 12VDC, 1A
minimum
4. LEDs:
LED State
Meaning
EV, XG Toggle
Establishing network connectivity
EV solid, XG off
enVision operating mode
XG solid, EV off
Next Gen operating mode
Switch Status
Link/Activity LEDs for each switch
port
Power
RP-IP-GNS Power Indicator
5. Buttons:
Button
Action
Reset
Press and hold for 5 seconds, then release to reset the unit to factory defaults. Will reset IP
settings to factory default.
Mode
Press and hold for 5 seconds, then release to toggle between EV and XG operating modes
