ii. Real-time display of 8 electrical parameters
• Line Voltage: AC RMS Volts Line-Neutral (Line1-Line2)
• Load Current Draw: AC RMS Amps
• Load Power Draw: Watts
• Neutral-Ground Voltage: AC RMS Volts Neutral-Ground (Line2-
Ground)
• Line Frequency: Hertz
• Load Power Factor
• Line Voltage Crest Factor
• Energy Usage (kWh) of connected equipment since date and
time of last manual usage reset
iii. Number of recorded power quality events
• Surge Events: SG
• Overvoltage Events with turn off of connected equipment: OVoff
• Overvoltage Events with no turn off of connected equipment:
OVrec
• Undervoltage Events with no turn off of connected equipment:
UVrec
• Undervoltage Events with turn off of connected equipment: UVoff
• Power Outage Events: PO
b. Scope Mode

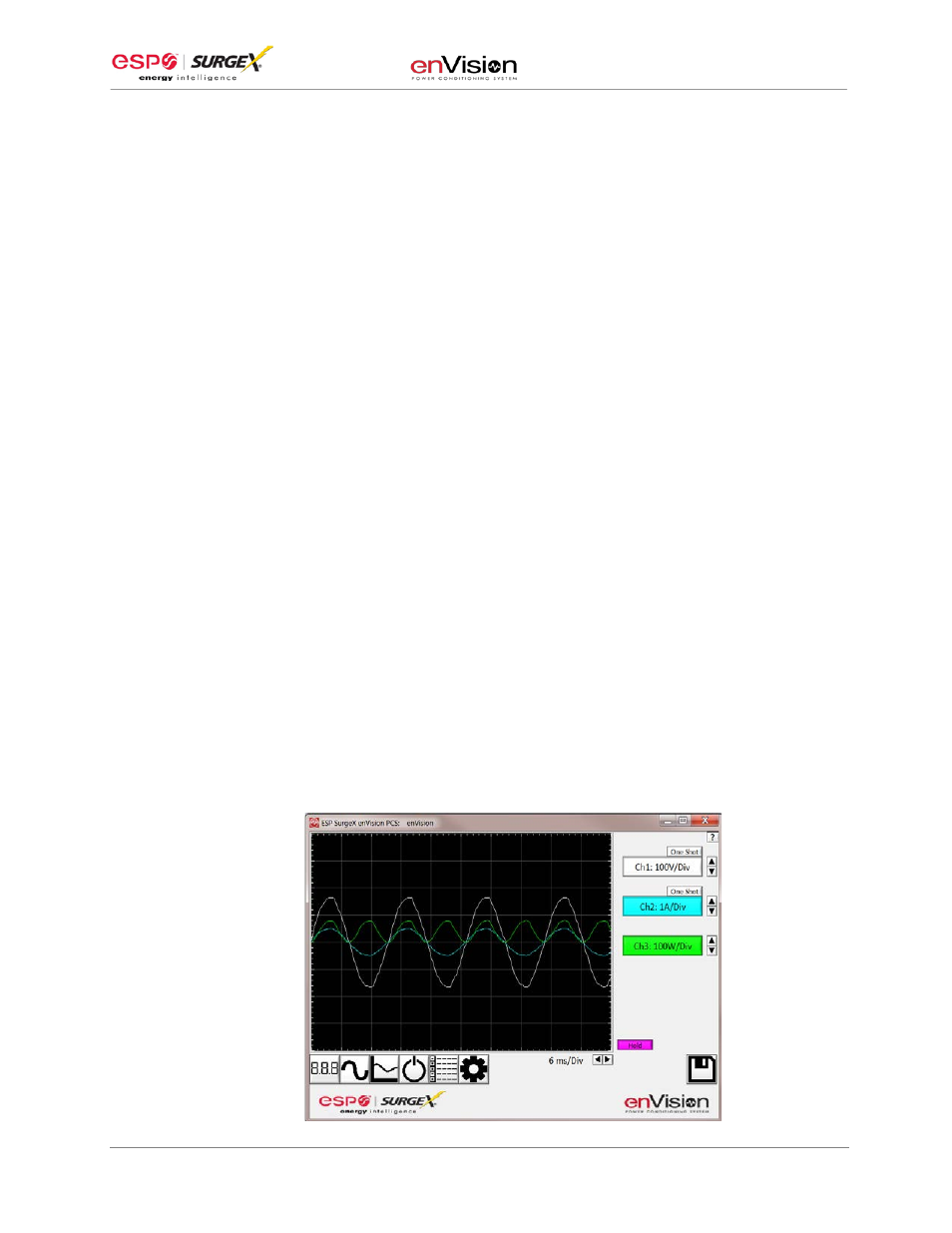

i. The Scope Mode enables a real-time voltage, current, and power
oscilloscope which incorporates many functions available in standalone
oscilloscopes. 4kHz Oscilloscope Bandwidth.
ii. Ch1-Ch3 buttons toggle waveform displays.
• Ch1 button toggles line voltage trace.
• Ch2 button toggles load current trace.
• Ch3 button toggles load power trace.
