SNMP Module Installation
Removing the SNMP Option Cover Plate
CAUTION: Remove ALL power from the InfoStation before removing any panels or
cover plates. The InfoStation contains NO USER SERVICEABLE PARTS
inside the unit. Refer ALL servicing to qualified service personnel!
NOTES: Cover plate must be installed if module slot is left empty. Installation of the
cover plate is necessary for proper cooling inside chassis.
The SNMP Module is hot-swappable. The chassis may remain on when
removing and installing the SNMP Module. Refer to the InfoStation SNMP
Module User's Guide for further information.
The InfoStation UI firmware must be at least Rev. 2.0.12 or higher to sup-
port the SNMP Module. The latest InfoStation UI firmware can be down-
loaded from the StorCase web site.
1. Loosen and remove the two (2) #6-32 Phillips F. H. screws securing the SNMP option
cover plate to the InfoStation chassis (Figure 22). Remove the cover plate (save the
cover plate and screws for future use).
2. To reinstall cover plate, simply reverse the above mentioned steps.

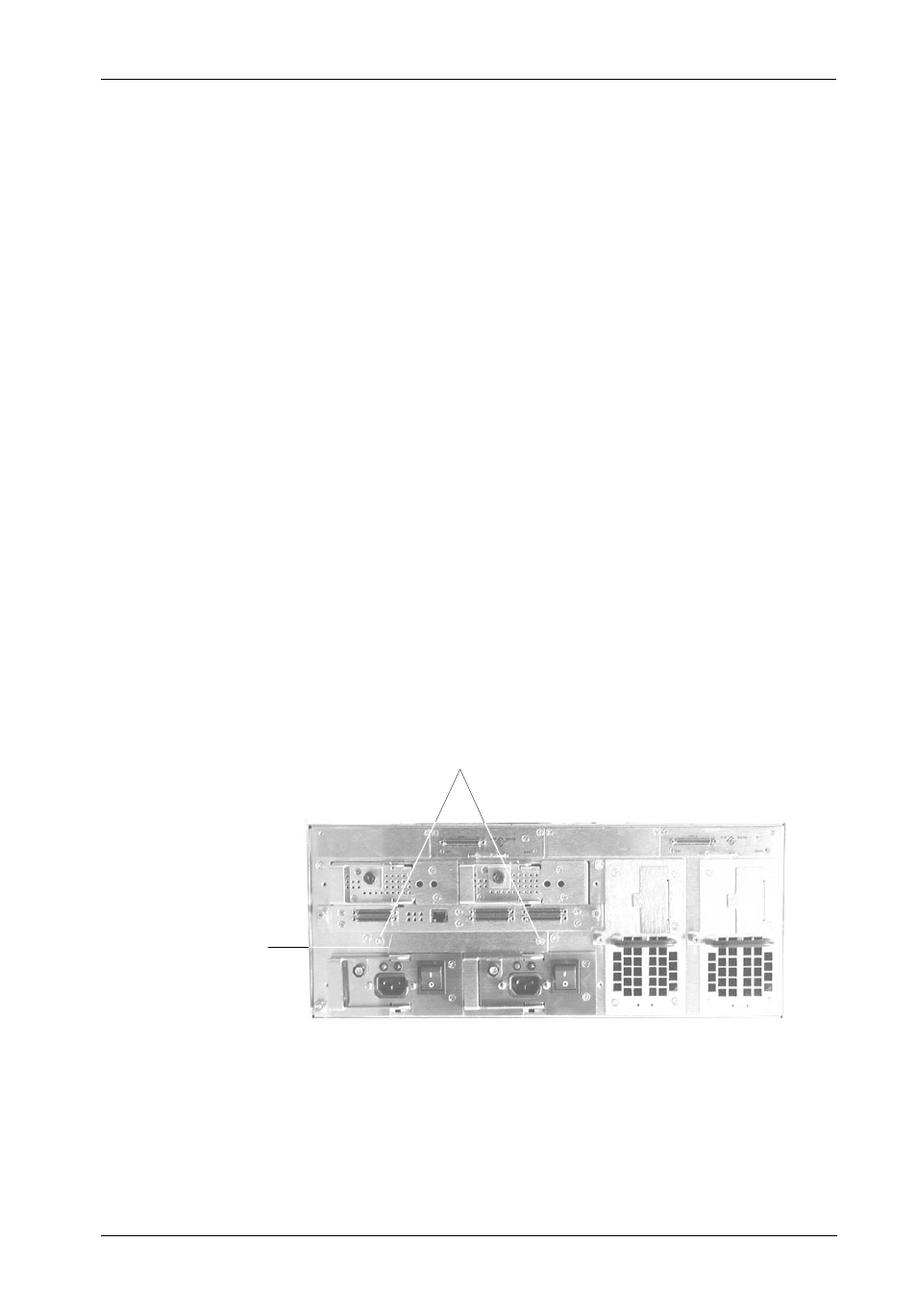

Figure 22: Removing the SNMP Option Cover Plate
#6-32 Phillips
Screw (2 Total)
InfoStation Chassis
SNMP Option
Cover Plate
