12 Installation
StorCase Technology, Inc. InfoStation 14-Bay U320 Installation Guide - Rev. A00
Configuring the InfoStation for Dual-Channel
CAUTION: Remove ALL power from the InfoStation before removing the I/O module.
The I/O module contains NO USER SERVICEABLE PARTS inside the unit.
Refer ALL servicing to qualified service personnel!
NOTE: Optional I/O interfaces are available as an upgrade. Contact StorCase for
further ordering information.
1. Unplug the InfoStation and verify that all cables have been disconnected.
2. Place the InfoStation on a soft clean surface to protect finish of the chassis.
3. Loosen and remove the two (2) #6-32 Phillips F. H. screws securing the I/O blank
plate to the InfoStation chassis (Figure 11). Correct dual-channel rear configuration
is shown in Figure 12.
4. Remove the I/O blank plate.
5. Remove access panel (as described on page 10).
6. Remove the center jumper block so that the second I/O module and terminator can
be installed. Correct dual-channel backplane configuration is shown in Figure 13.

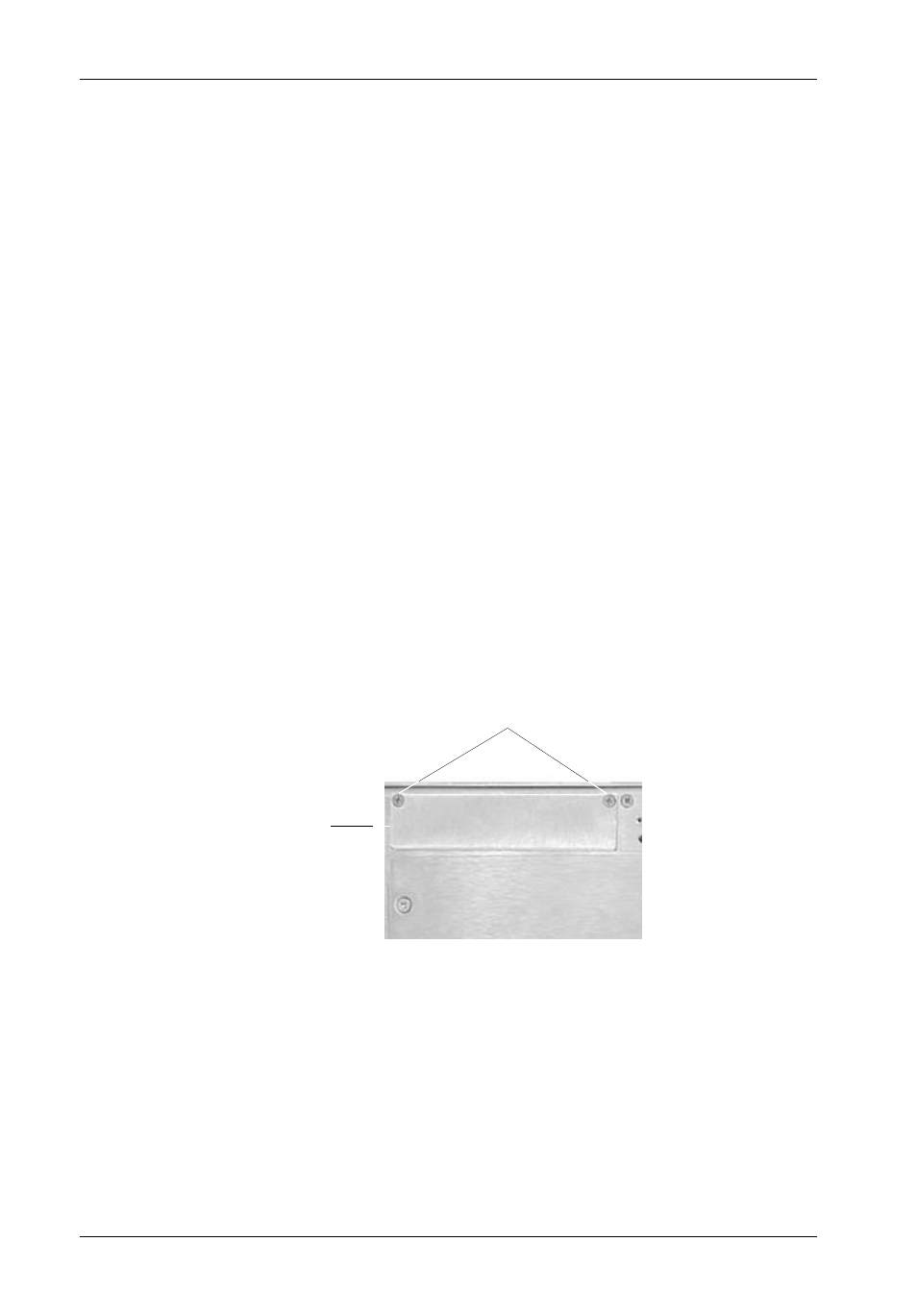

Figure 11: Removing the I/O Blank Plate
I/O Blank
Plate
#6-32 Phillips
Flat Hd. Screw
(2 Total)
IFS14_11
