StorCase Technology 14-Bay 4U SCSI Ultra320 User Manual
Page 25
20
Installation
StorCase Technology, Inc.
InfoStation 14-Bay U320 Installation Guide - Rev. A00
If installing only one (1) RAID Battery Backup Unit (for use with the Single RAID Controller Module
unit), the Battery Backup Unit must be installed into the correct blower module. Refer to Figure
21 for correct Battery Backup Unit installation locations.
NOTE:
In case of blower module failure, be sure to reinstall the RAID Battery
Backup Unit(s) into the replacement blower module!

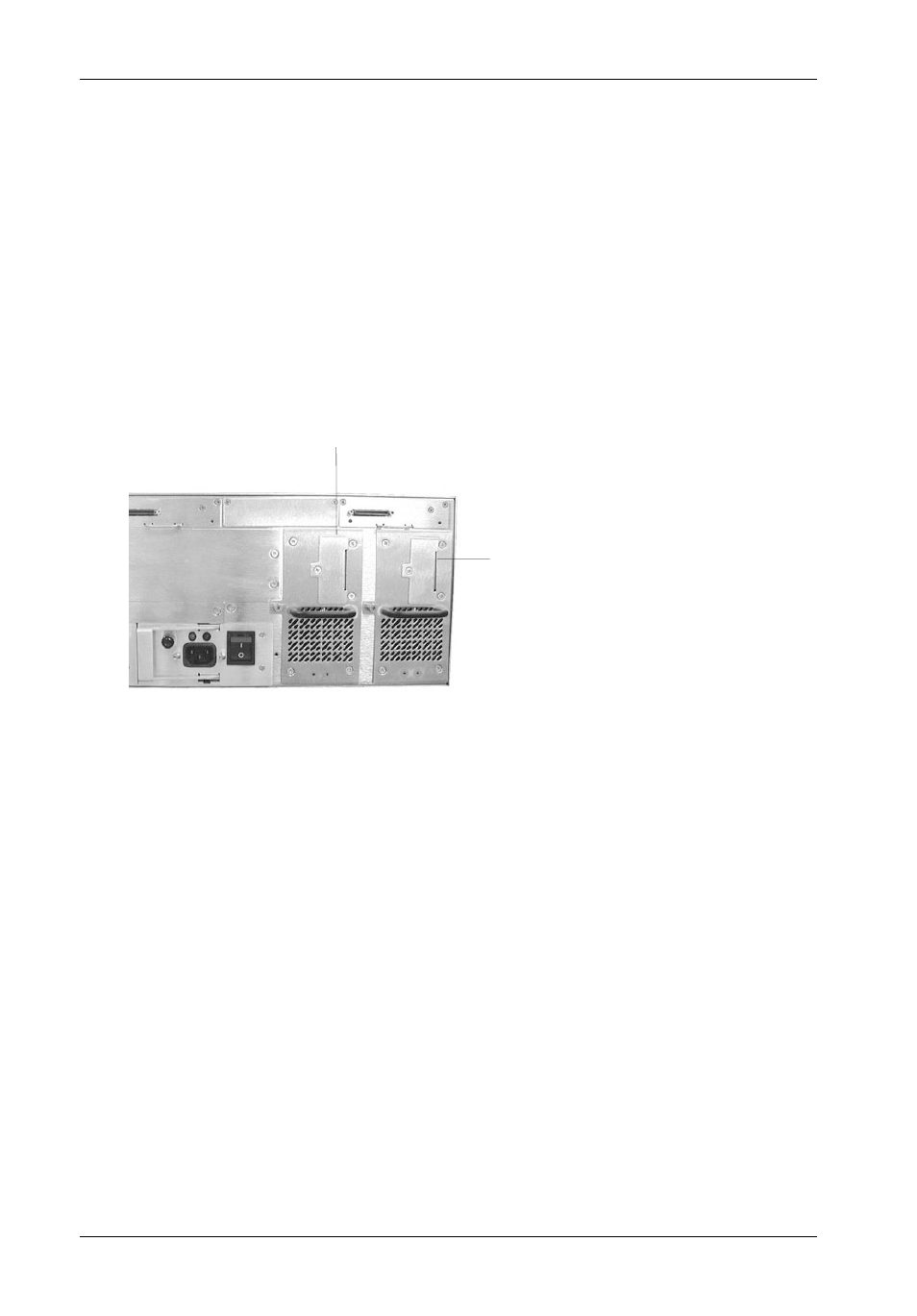

Figure 21: RAID Battery Backup Unit Installation Location
IFSII_DR11
Battery Location for RAID Controller A
NOTE:
For Single RAID Module
configurations, install
battery backup unit in this
blower module ONLY!
NOTE:
For Dual RAID Module configurations, install
battery backup units in each blower module
Battery Location for
RAID Controller B
