DE300i-S User's Guide - Rev. B00

Kingston Technology Company

Installation

Mounting
Holes
(Right)

0520

Mounting
Holes
(Bottom)

Front of Unit

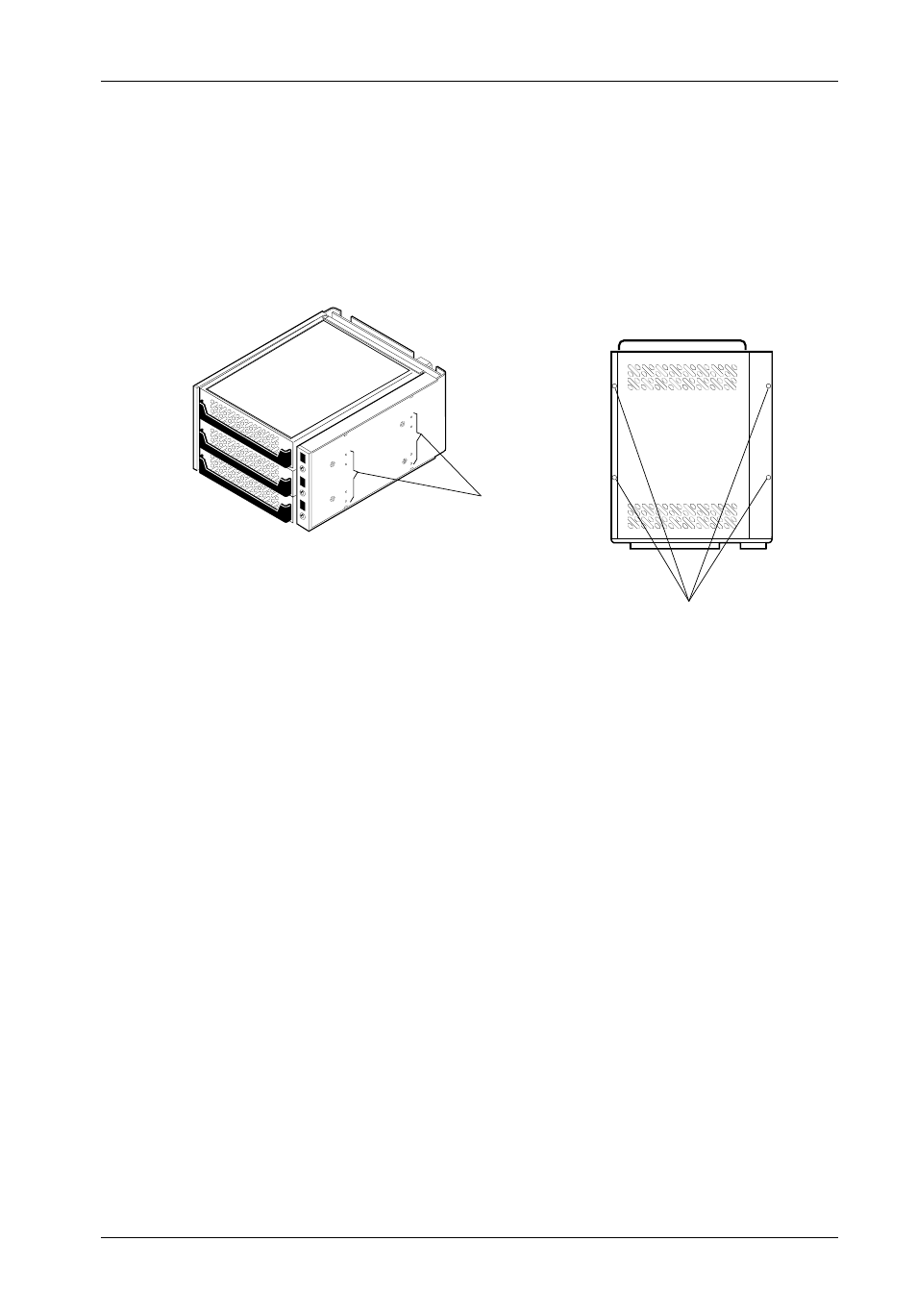

Figure 12: Receiving Frame Mounting Holes

4. With the drive carriers locked into place inside the receiving frame, install the Data

Express receiving frame into the drive opening in the computer or expansion chassis.
Use the appropriate guides to position the Data Express, and fasten it into place with the
four 6-32 x 1/4” screws provided. Figure 12 illustrates the location of the mounting holes.
Mounting holes are provided on each side and the bottom of the receiving frame to
accommodate a variety of mounting configurations. Use the mounting holes which best
suit the computer or expansion chassis configuration.

5. Adjust the front of the receiving frame so the carrier slides freely in and out on the

receiving frame guides. The position of adjoining peripheral units may require
adjustment.

6. To connect a drive to a remote activity LED in the computer system or expansion

chassis, connect the appropriate cable(s) to the receiving frame motherboard connectors
J3A, J3B, and J3C Pins 11 and 12 as shown in Figure 5.

7. Connect the I/O interface cables from the host adapter to the receiving frame. The pin 1

indicator on the cable must be properly aligned. Refer to Figure 5 for the correct pin 1
location.

8. When installing the Data Express into a computer system, make sure that only the last

SCSI device is terminated. If the Data Express is at the end of a daisy chain, the
receiving frame termination for the last device must be enabled by removing the
appropriate jumper. If the Data Express is in the middle of a daisy chain, termination
should be disabled (factory installed jumper) at J3A, J3B, and J3C, pins 9 and 10 as
shown in Figure 5.

In most cases, if installing the Data Express into an external expansion chassis, the
factory installed jumpers at J3A, J3B and J3C, pins 9 and 10 (disable termination) should
be left in place. Termination will be handled by an external terminator on the expansion
chassis.
