Installation

DE200i-SWC160 User's Guide - Rev. B01

StorCase Technology, Inc.

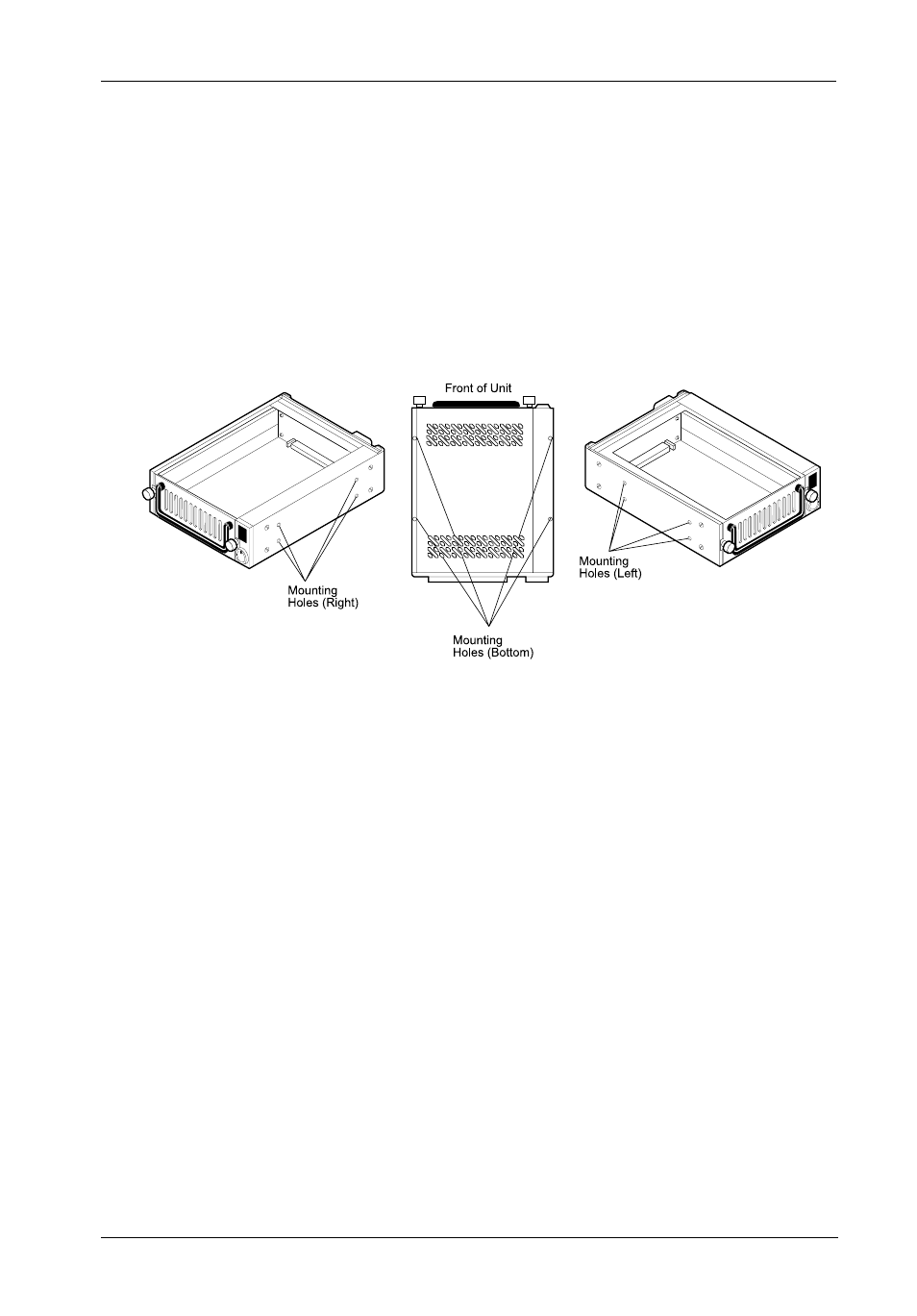

Figure 9: Receiving Frame Mounting Holes

Adjust the front of the receiving frame so the carrier slides freely in and out on

the receiving frame guides. The position of adjoining peripheral units may require

adjustment.

Connect the I/O cable from the host adapter to the receiving frame. The Pin 1

indicator on the cable must be properly aligned. Refer to Figure 5 for the correct

Pin 1 location.

NOTE:

Make sure that only the last SCSI device is terminated. No onboard ter-

mination is provided on the DE200i-SWC160. External termination must be

provided.

With the drive carrier locked into place inside the receiving frame, install the

DE200i-SWC160 receiving frame into the drive bay in the computer or expansion

chassis. Use the appropriate guides to position the DE200i-SWC160, and fasten

it into place with the four (4) #6-32 Phillips screws provided. Figure 9 illustrates

the location of the mounting holes. Mounting holes are provided on each side

and the bottom of the receiving frame to accommodate a variety of mounting

configurations. Use the mounting holes which best suit the computer or

expansion chassis configuration.
