10 Installation
StorCase Technology, Inc. DE200i-SWC160 User's Guide - Rev. B01

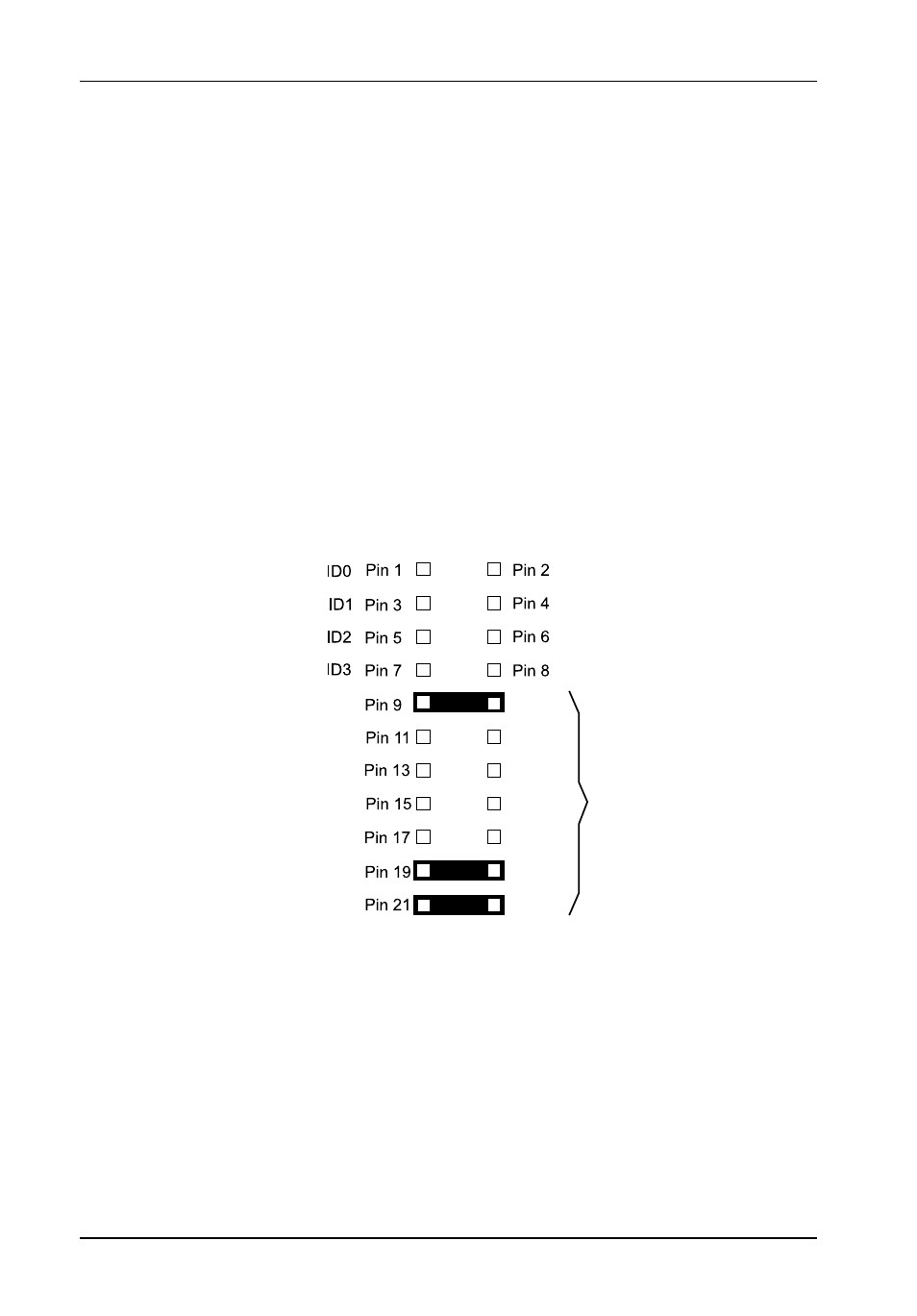

Figure 8: Receiving Frame Motherboard Option Pin Connector (W1)
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis. A #2 Phillips screwdriver will be required
for installation.
1. Turn OFF power to the computer.
2. Open the computer system according to the manufacturer’s instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3. To select the DE200i-SWC160 unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the ID Select Pins 1-8 on the rear of the receiving frame as shown
in Figure 8.
Pin 10
Pin 12
Pin 14
Pin 22
Pin 20
Pin 18
Pin 16
0439b
SYNC
RMST
DYST
FFAULT/Alarm Enable
FFAULT/Alarm Disable
Fan 2 Enable
Factory-Installed
Jumpers
Fan 1 Enable
