Installation

9

DE200i-SWC160 User's Guide - Rev. B01

StorCase Technology, Inc.

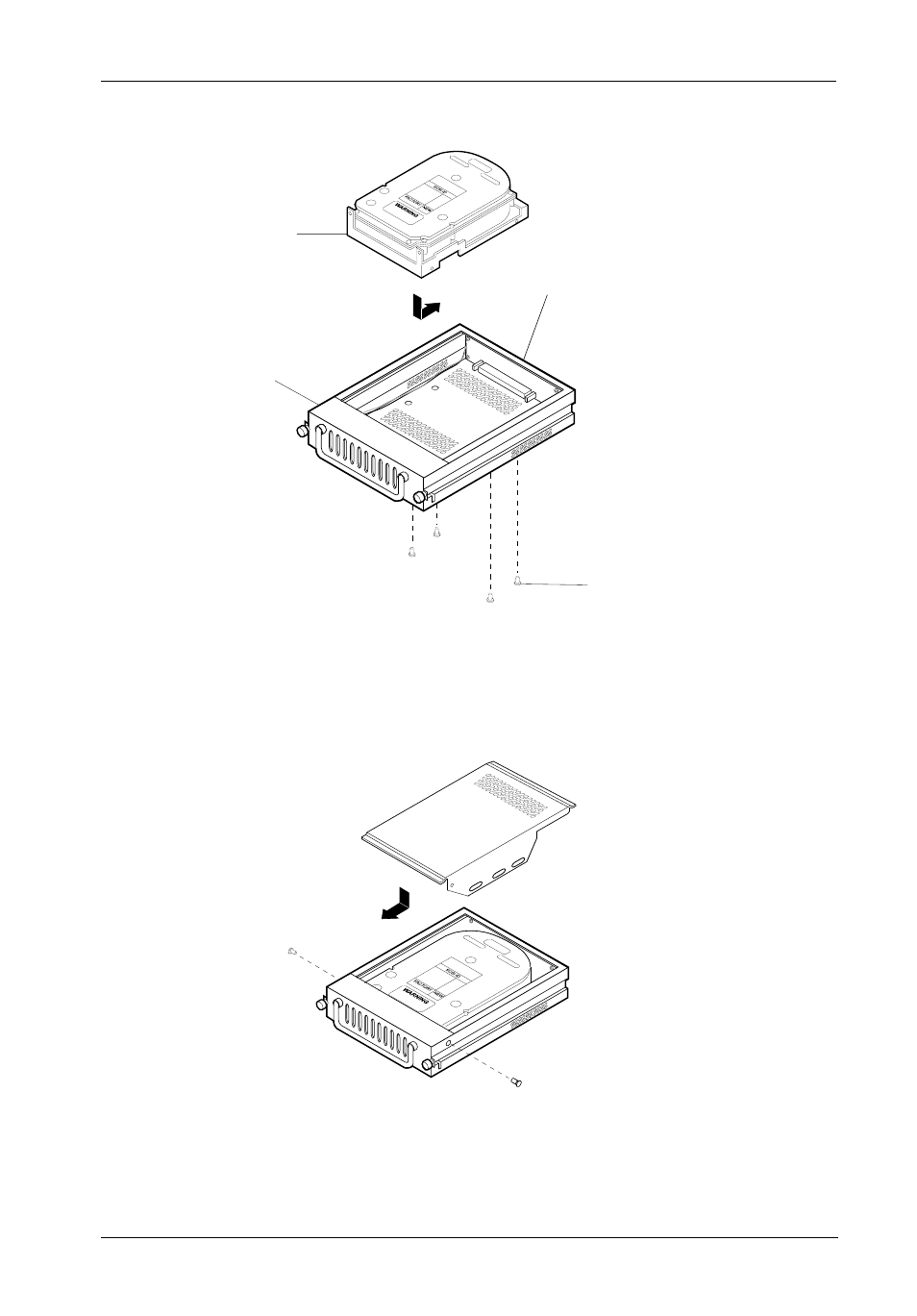

Figure 6: Drive Installation Assembly

Figure 7: Drive Cover Installation

0151e

Drive

(Not Included)

#6-32 x 1/4 Phillips

Flat Head Screw

(4 each)

Drive

Carrier

Drive Carrier

Board

2

Slide the cover

towards the back

of the carrier

1

Insert this end

into the carrier

first

3

Secure with two

(2) #6-32x1/4

Phillips Flat Head

screws.

0823a
