20 Appendix B - Factory-Installed Options

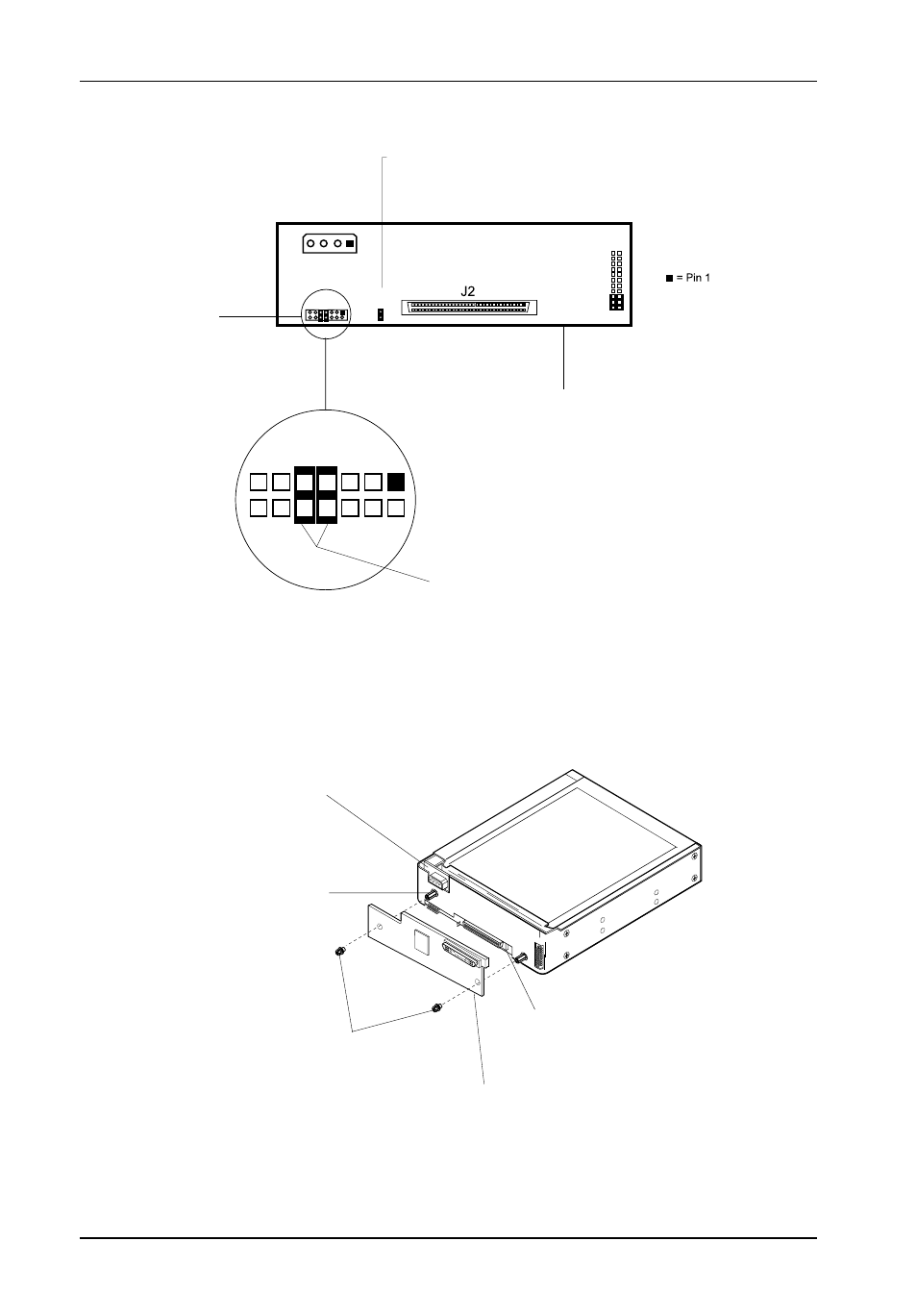

Figure B-3: Attaching the Isolator Board
Figure B-2: J3 Jumpers
Remove Jumpers on J3 Pins 7 & 8 and
9 & 10 Before Installing Isolator Board
DE100i-SWC160
(or DE200i-SWC160)
Receiving Frame
Motherboard
456b
J3
J4
J4 Jumper
(Factory Installed
Do Not Remove)
Receiving Frame
Stand-Offs
(2 per Isolator Board)
I/O Connector
#6-32 x 1/4 Phillips
Pan Head Screws
0452b
DX1/200-SWC160/RH
Isolator Board
DE100i-SWC160
(or DE200i-SWC160)
Receiving Frame
Motherboard
