Installation
9
DE100i-SWC160 User's Guide - Rev. D01
StorCase Technology, Inc.

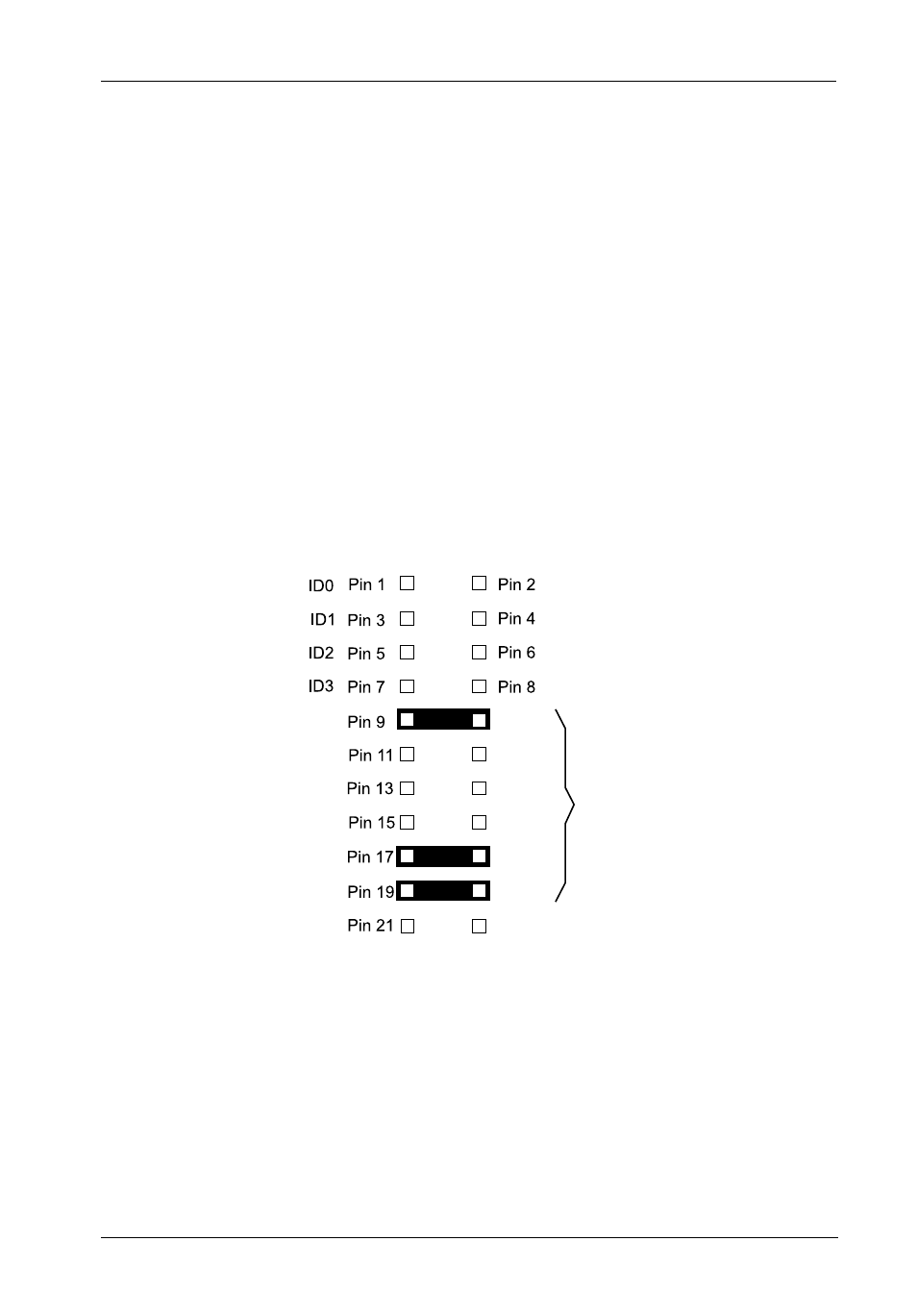

Figure 8: Receiving Frame Motherboard Option Pin Connector (W1)
Installing the Receiving Frame
The drive should be installed into the carrier before installing the receiving frame into the
mounting bay of a computer or expansion chassis. A #2 Phillips screwdriver will be required
for installation.
1.
Turn OFF power to the computer.
2.
Open the computer system according to the manufacturers instructions. If
necessary, temporarily remove any expansion boards that may make installation
difficult.
3.
To select the DE100i-SWC160 unit ID remotely through the computer system or
external expansion chassis, the appropriate cable from the system must be
connected to the ID Select Pins 1-8 on the rear of the receiving frame as shown
in Figure 8.
Pin 10
Pin 12
Pin 14
Pin 22
Pin 20
Pin 18
Pin 16
0439c
SYNC
RMST
DYST
FFAULT/Alarm Enable
Reserved
Reserved
Factory-Installed Jumpers
(Do Not Remove!)
Fan 1 Enable
NOTE:
Figure 8 applies to DE100i-SWC160 receiving frames Rev. B00 or higher only. Refer
to Appendix F for further information.
