8 Installation
StorCase Technology, Inc. DE100i-SWC160 User's Guide - Rev. D01

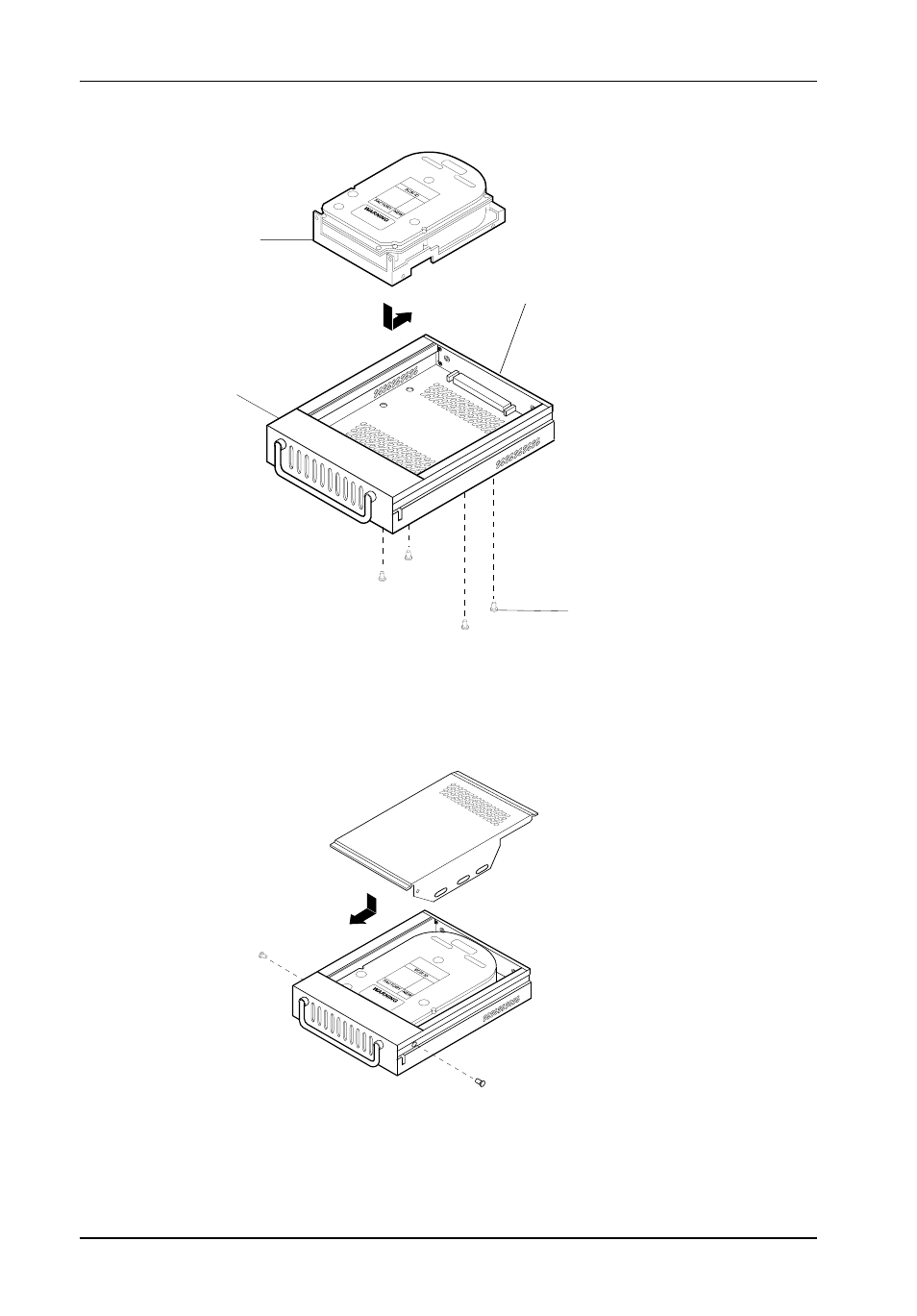

Figure 6: Drive Installation Assembly
0151d
Drive
(Not Included)
#6-32 x 1/4 Phillips
Flat Head Screw
(4 each)
Drive
Carrier
Drive Carrier
Board
Figure 7: Drive Cover Installation
2 Slide the cover
towards the back
of the carrier
1 Insert this end
into the carrier
first
3 Secure with two
(2) #6-32x1/4”
Phillips Flat Head
screws.
0823
