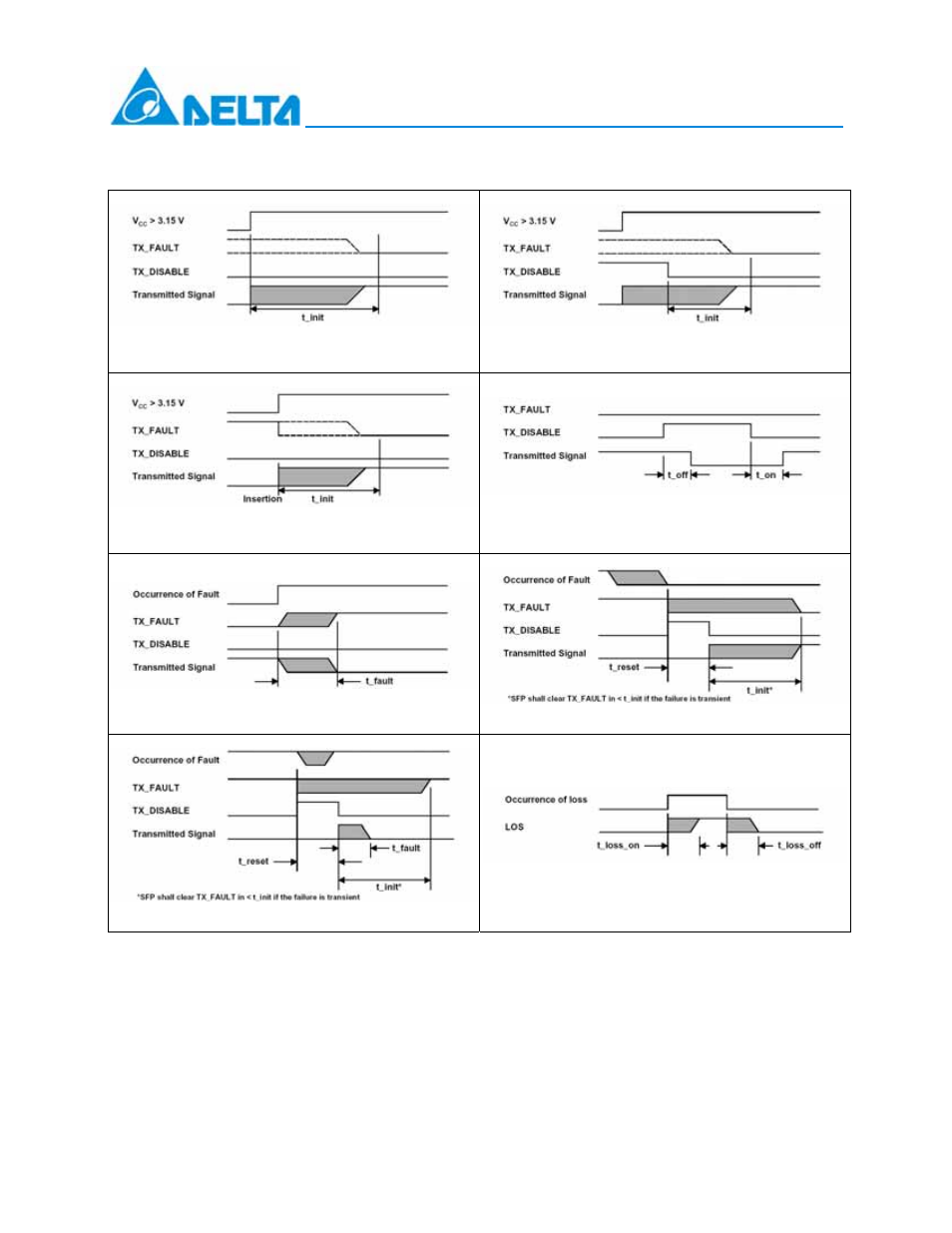

SFP timing parameters
Power on initialization of SFP transceiver, TX_DISABLE
negated
Power on initialization of SFP, TX_DISABLE asserted
Initialization during hot plugging of SFP TRANSCEIVER.
Example of initialization during hot plugging, TX_DISABLE
negated.
SFP TX_DISABLE timing during normal operation.
Detection of transmitter safety fault condition
Successful recovery from transient safety fault condition
Unsuccessful recovery from safety fault condition
Timing of LOS detection
