DELTA ELECTRONICS, INC.

1 2007/11/6

Rev. 0D

www.deltaww.com

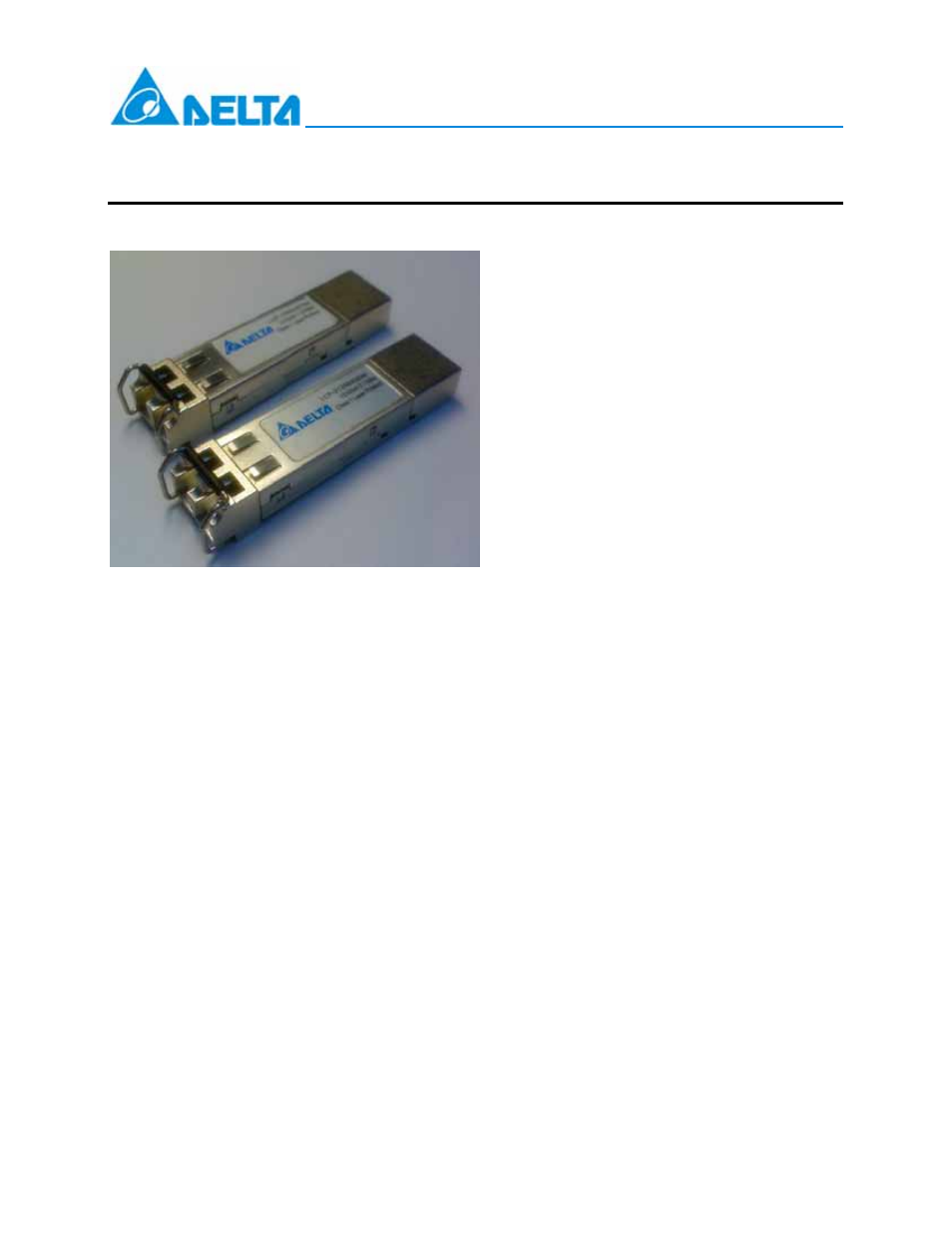

RoHS Compliant Small Form Factor Pluggable Transceiver for Fast
Ethernet and SONET OC-3

FEATURES

Compliant with SFP Transceiver MSA

specification

Compliant with Specifications for IEEE 802.3

100Gase Fast Ethernet

Compliant with Industry Standard RFT

Electrical Connector and Cage

Single + 3.3V Power Supply and TTL Logic

Interface

EEPROM with Serial ID Functionality

Laser Class 1 Product which comply with the

requirements of IEC 60825-1 and IEC 60825-2

Duplex LC Connector interface

Description

The LCP-155A4HSRBx series are hot pluggable

3.3V Small-Form-Factor transceiver module designed
for high-speed communication applications that require
rates of up to 155Mbit/sec. It is compliant with the Fast
Ethernet standards, as well as the SFP Multisource
Agreement (MSA).

The LCP-155A4HSRBx transceivers provide with

the LC receptacle that is compatible with the industry
standard LC connector. The transceiver is also
compatible with industry standard RFT connector and
cage.

The post-amplifier of the LCP-155A4HSRBx also

includes a LOS (Loss Of Signal) circuit that provides a
TTL logic-high output when an unusable optical signal
level is detected.

The LCP-155A4HSRBx transceiver is a Class 1

eye safety product. The optical power levels, under
normal operation, are at eye safe level.

Applications

100Base Fast Ethernet

Switch to Switch interface

Switched backplane applications

File server interface

Performance

LCP-155A4HSRBx

Data Link up to 2km in 50/125

µm Multi Mode Fiber

Data Link up to 1km in 62.5/125

µm Multi Mode Fiber
