MOCET IP3062 Professional IP Phone User Guide

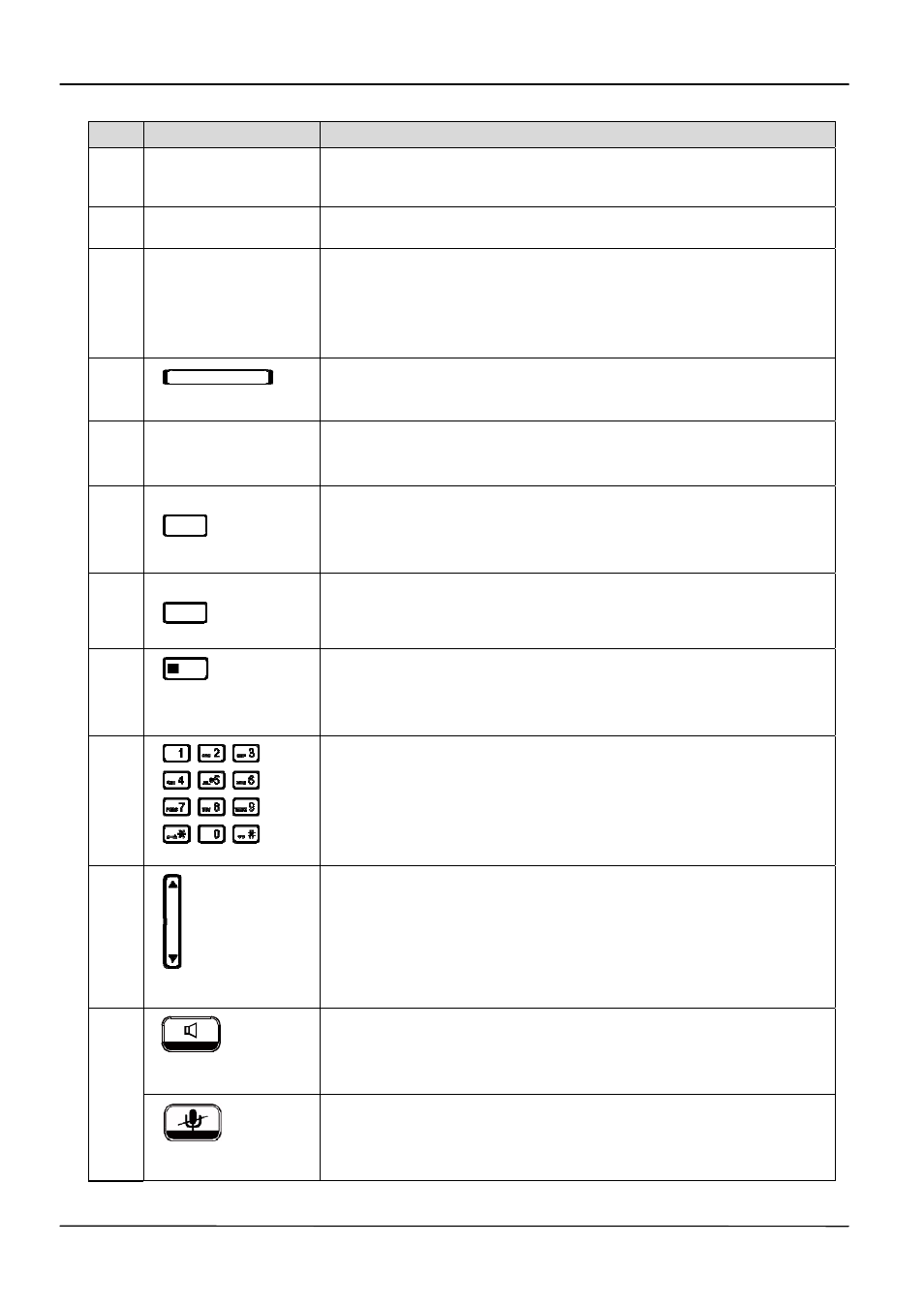

No Part Name Description
1 Hanger
The hanger can be pulled; it is reversed for wall-mount
installation.
2 Speaker For ring and hands-free talking.
3
Hook switch &
Handset
bottom cradle
Under the cradle, a hook switch is used for handset hang-on and
hang-off detection.
The handset bottom cradle is for the placement of handset;
placing the handset on the bottom cradle while on a call will end
the call.
4
Message LED
The message LED. Steady Blue means the phone is booting or
upgrading
5 LCD Display
The LCD screen is used for displaying phone’s settings, phone
number, call status and so forth.
6 Soft keys
Soft keys displayed on the LCD are used for item selection or
control. The various soft key functions depend on the current
activity on the phone as they are context-sensitive.
7
Line keys
Line keys are used for line selection. A blue LED is associated
with each key to indicate its line or call status.
8 Programmable
keys
Programmable keys can be used for indicating busy lamp field
(BLF) status of other phones, speed dial phone numbers, or for
activating features of a service or IP-PBX. A blue LED is
associated with each key to indicate its status.
9
Numeric keypad
[1], [2], …, [9], [*], [0], [#]: The numeric keypad for dialing
numbers.
10
Volume
Control key
The Volume Control key used to set the loudness of the ringer,
handset and speakerphone functions. While the phone is in idle
state, the Ringer is adjustable. While in a call, the Handset or
Speaker volume is adjustable.
Speaker Phone
key
The SPKR key is used to activate or deactivate the Hands-free
feature. A blue LED is used to indicate whether the
speakerphone is active or not.
11
MUTE key
The MUTE key is used to activate or deactivate the
microphones on the IP3062. A blue LED is used to indicate
whether the phone is muted or not.
