Delta RF Technology, Inc.

H i g h P o w e r R F A m p l i fi e r s a n d A c c e s s o r i e s

350 South Rock Boulevard

Reno

NV

89502

USA

Phone +1.775 DELTA RF [775 335 8273]

Fax +1.775 DELTA FX [775 335 8239]

website: http://www.drft.com

email: [email protected]

4886

LA2-1-1025-33

Part Number

Amplifier Name

Revision 0.a Release Date April 2008

Revision Notes Initial release

Technical Specifications Summary

Amplifier General Description

Frequency Range: 1 - 1025 MHz

P1dB:

2 Watts CW

Class:

A

Supply Voltage:

28 V DC

Gain:

33dB

Efficiency:

12%

Temperature Range:

0 to 50

°

C

Max VSWR:

10:1

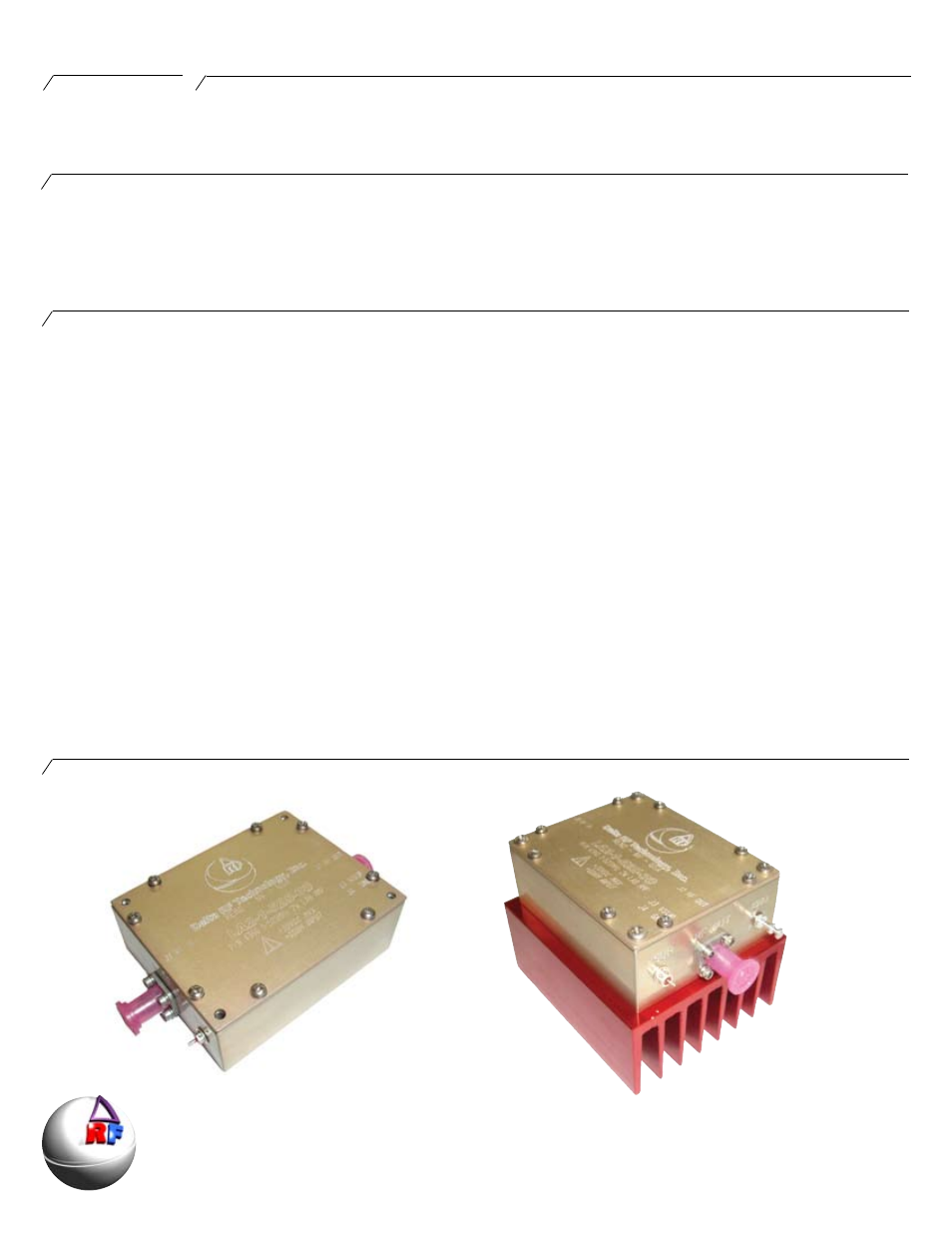

Amplifier Picture

This ultra broadband class A amplifier operates from below 1 MHz to over 1 GHz. Using all gold

metallized LDMOS transistors and a stable design, this compact, high performance laboratory amplifier

will find use in many applications.

The LA2-1-1025-33 is offered as a standalone unit requiring the customer to mount to a modest

heat sink, or we offer this with a heat sink. A disable line is option.
