• At maximum speed: the stop valve closes the connection to the vacuum
pump, the aeration valve opens; the rotor speed is maintained for 30
sec (aeration phase, to avoid delays in boiling).
• Rotor decelerates until it is at a standstill. After the standstill of the rotor
the lid can be opened in order to remove the rotors.
Functional and operating elements:
1
Lid lock device
2
Lid
3
Rotor chamber
4
User interface
5
Rotor shaft
6
Mains power switch

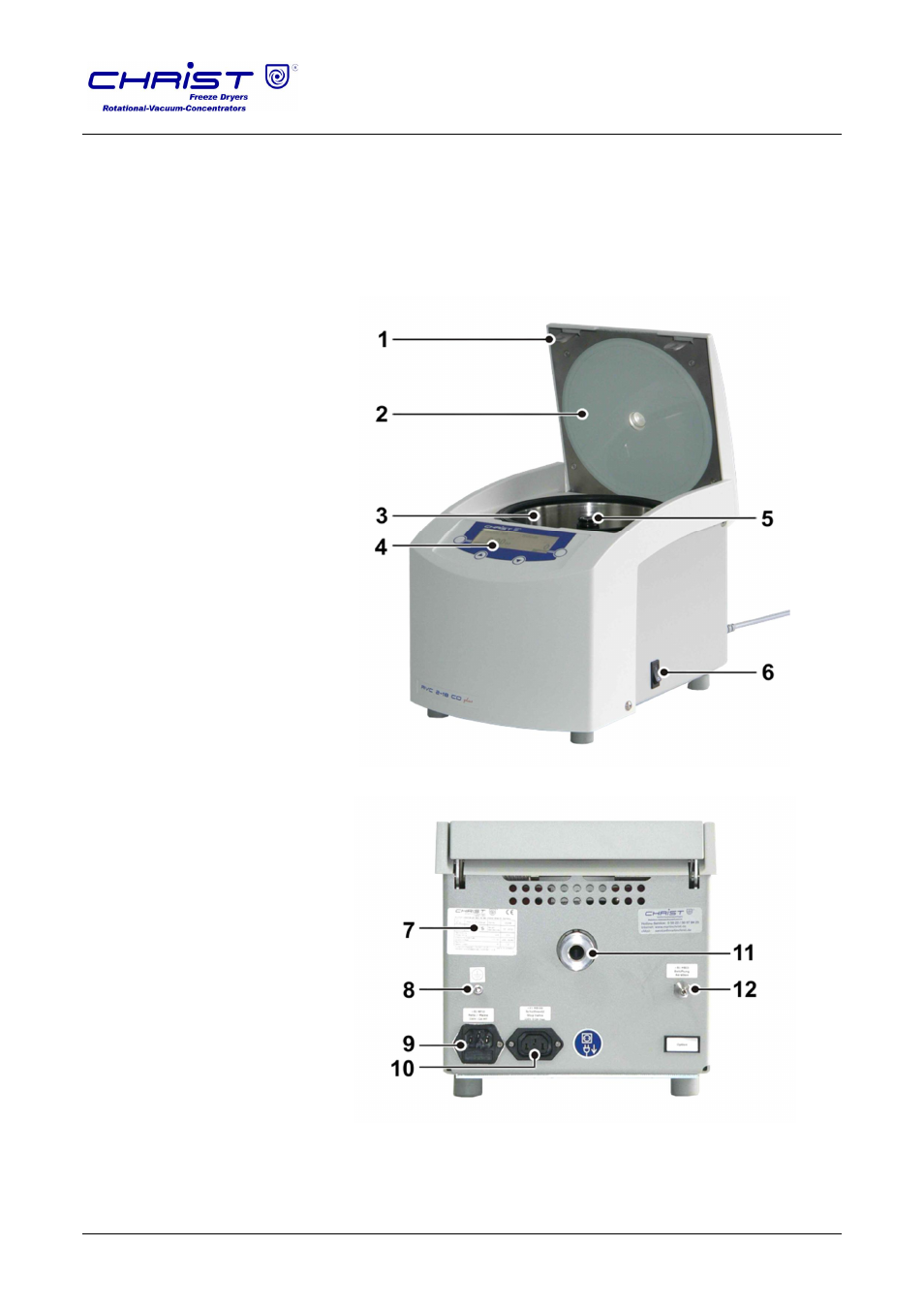

Fig. 46: Total view of the RVC 2-18 CD
plus
7
Name plate
8
Equipotential bonding screw
9
Mains connection and mains
fuse protection
10 Power supply connection of
the stop valve
11 Vacuum connection
12 Connection for aeration
Abb. 47: Rear view of the RVC 2-18 CD
plus
