RVC 2-18 CD&
8 Maintenance and service
52
Version 04/2012, Rev. 1.3 of 25/11/2013 • sb
Translation of the original operating manual
4
Countersunk screw

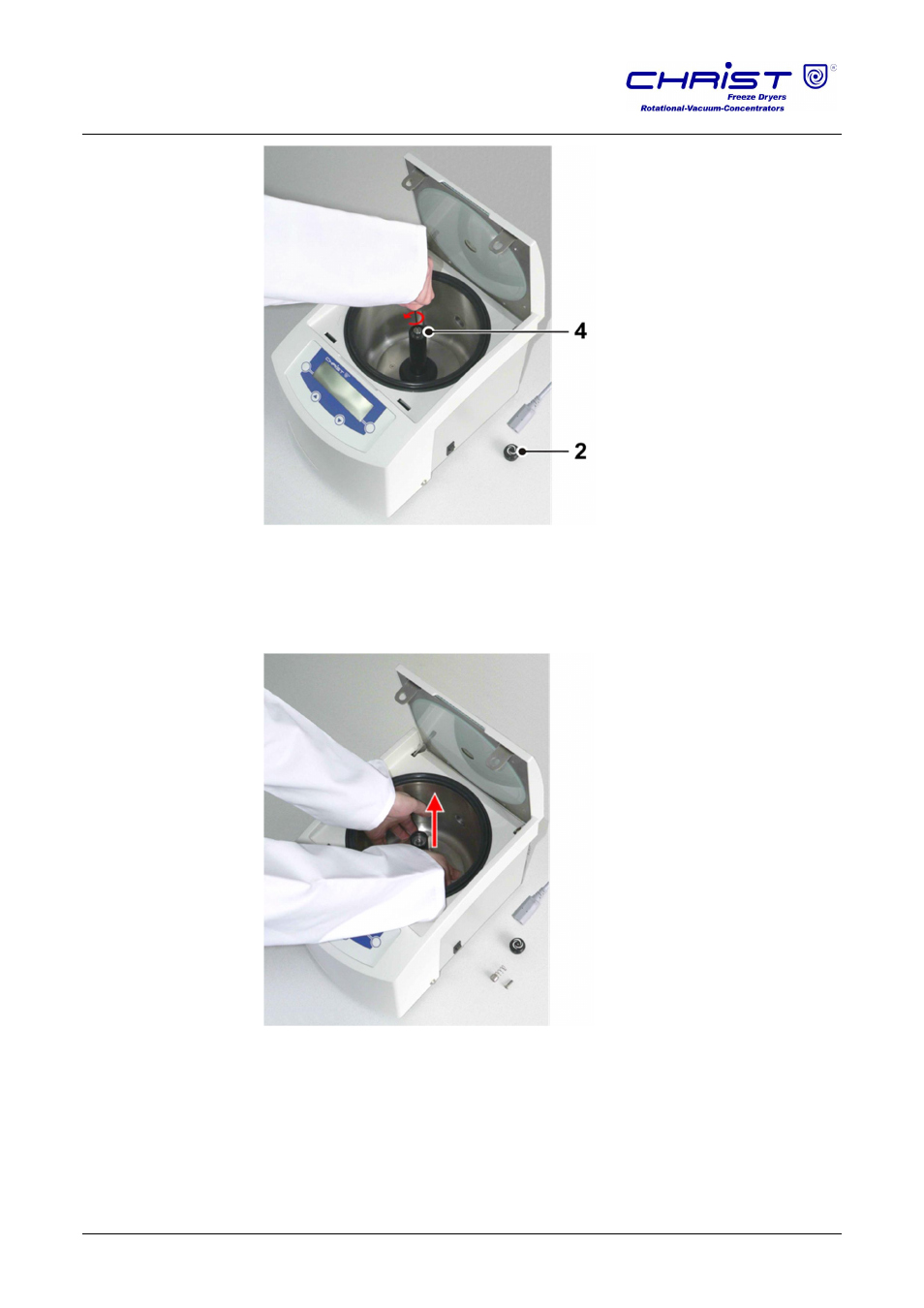

Fig. 42: Removing the countersunk screw
• Remove the thrust piece and the compression spring from the axle by
lifting it vertically upward.
• Remove the rotor shaft from the axle by lifting it vertically upward.
Fig. 43: Removing the rotor shaft
• Clean the lid with a disinfectant or cleaning agent.
• Wipe out the rotor chamber and clean it with a cleaning agent or
disinfectant.
• Clean the rotor shaft and the magnetic coupling.
