RVC 2-18 CD&
8 Maintenance and service
Version 04/2012, Rev. 1.3 of 25/11/2013 • sb
53
Translation of the original operating manual
CAUTION
Ensure that no cleaning agent or disinfectant gets into the ball bearings of
the rotor shaft as it may wash out the ball bearing grease.
This can lead to irreparable damage.
5
Rotor shaft with
magnet coupling
6 Ball bearing
7 Hexagon socket key

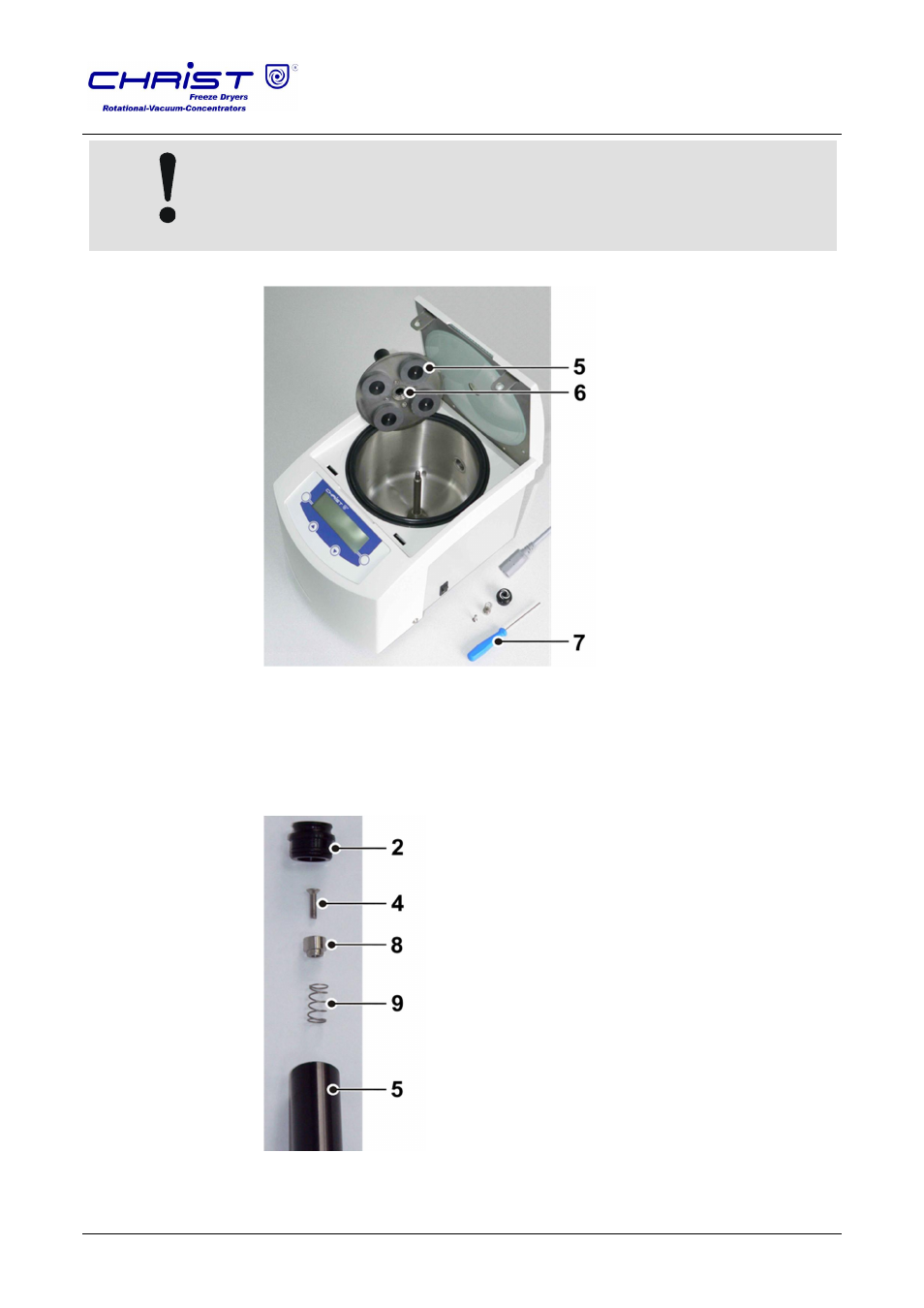

Fig. 44: Rotor shaft with ball bearings
• Clean the thrust piece, the compression spring and the countersunk
screw.
• Clean the cap and coat the O-ring of the cap with a thin layer of vacuum
grease.
4
Thrust piece
5 Compression spring
Fig. 45: Rotor shaft with thrust piece and compression spring
