Marsh Sound Design

19

General Zone 2 operations

Recording Audio and Video

Inputs for zone 2 are

1. CD
2. TAPE
3. TUNE
4. ZONE 2 AUX

To select a zone 2 input you press the zone 2 sift
key and then the input you desire. The volume up
down, seek up down, mute, work for zone 2.
Once you press the zone 2 sift key it will time out
when you stop pressing buttons (4 sec). The
zone 2 will operate with main zone on or off.

Zone 2-aux input is a zone 2 input only; Main
zone has no control over Zone 2 aux

Zone 2 Trigger is a 1 amp dry contact relay that
makes when zone 2 is turned on.

NOTE: You must connect the analog out of all
sources you want to record to the unit. Input for
that source.

1.Connect the audio record out of the unit to

the record in of you VCR or other recorder.

2. Connect the composite video out of the

unit to the video in of your VCR or other
recorders.

3. To record digital audio out connect the

digital out to your digital recorder, the unit
digital out will be the same as the digital in
source.

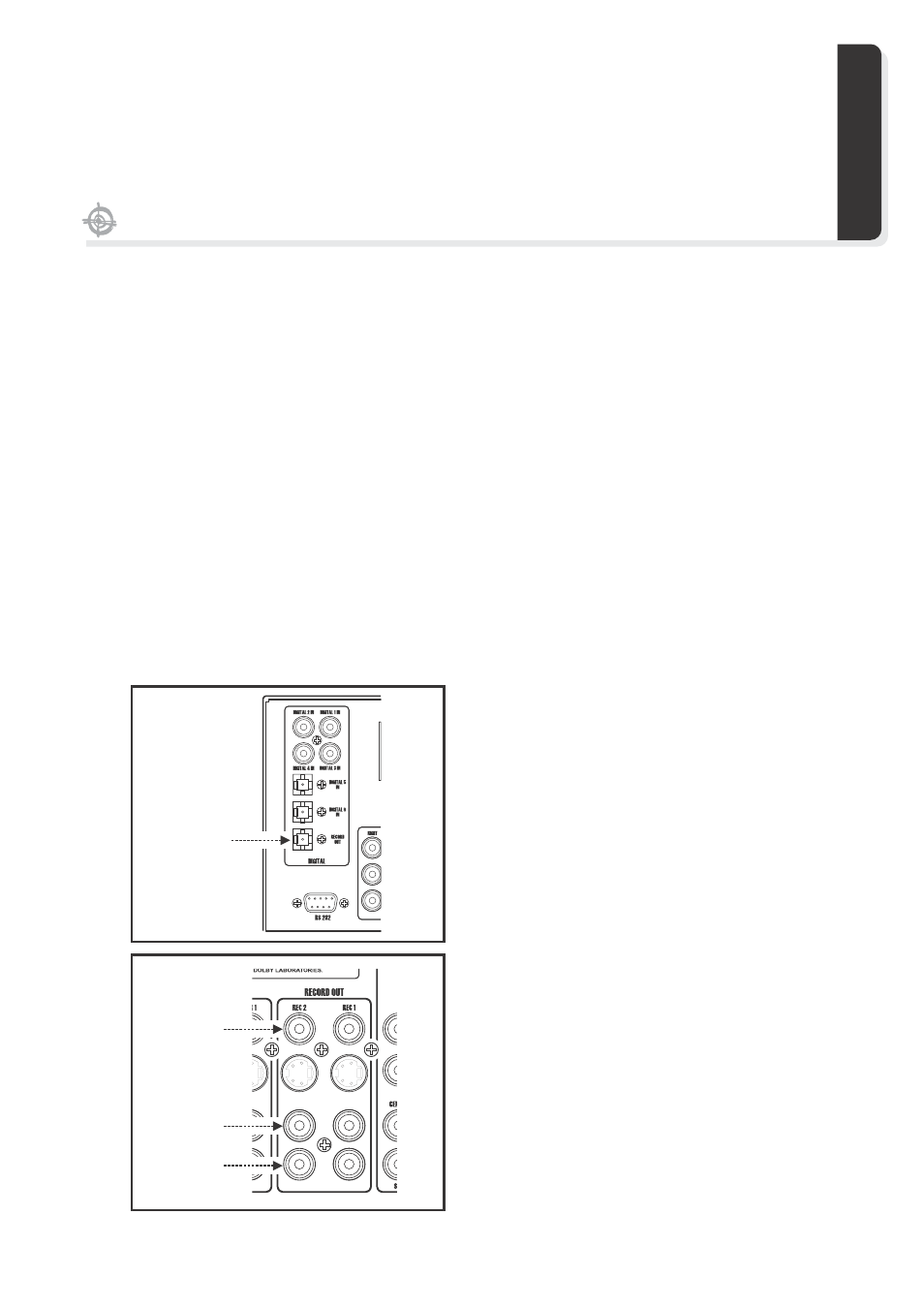

CONTROLS

&

FUNCTIONS

Digital

Record Out

Left

Audio Out

Composite

Video Out

Right

Audio Out
