Marsh Sound Design

17

CONTROLS

&

FUNCTIONS

13. Trigger, Main time delayed dry contact

14. Trigger, Main time delay (12V)

15. Trigger (12V), Zone 2 time delay

16. RS232 serial port

17. Remote Infra-Red Sensing Input

18. AC Power Receptacle

19. AC Power Fuse Holder

1 am relay dry contact 5 sec delay

12V trigger. Main time delay 5 sec.

5-second delay, 12V trigger for external

system.

Serial port for system up date.

Input for external Infrared repeater.

Standard IEC, three-blade receptacle for

proper orientation of the AC plugs.

A slide out drawer below the AC power

receptacle contains the AC power fuse in
the rear and a spare fuse in the front.

1.

Digital Audio Inputs

2.

Digital Audio Output (Toslink)

3.

Audio Inputs (CD and Tape)

4.

Audio/Video Inputs

5.

Audio/Video Record Outputs

6.

Main Audio Outputs (6 Channels)

7.

Main Video Outputs

8.

FM Antenna Input

9.

AM Antenna Input

10. Zone 2 Input (AUX 2)

11. Zone 2 Fixed Output

12. Zone 2 Variable Output

Coaxial (DIG 1, DIG 2, DIG 3 and DIG 4)

and Toslink (DIG 5 and DIG 6) digital
inputs.

Labeled as VCR 1, VCR 2,TV, LD, AUX, SAT

and DVD with composite and S Video
inputs.

Audio (REC 1 and 2) and Video (REC 1, 2

and 3.)

Front, Sur, Back, Center and Subwoofer.

Composite 1,2, Component, S- video.

Rear Panel Connections

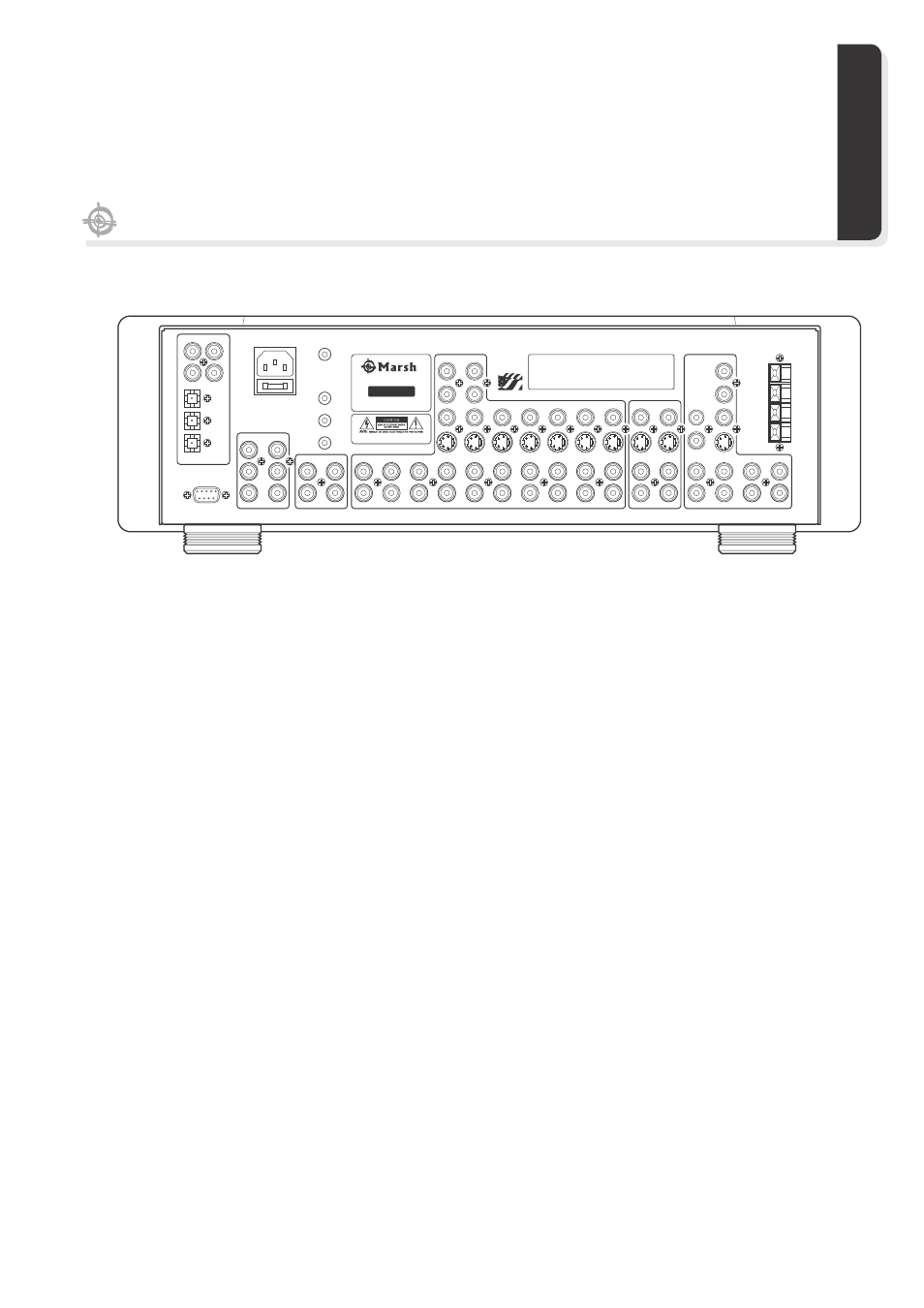

Figure 2. HT 4000 Rear Panel.

DIGITAL

RS 232

DIGITAL 2 IN DIGITAL 1 IN

RECORD

OUT

DIGITAL 6

IN

DIGITAL 5

IN

DIGITAL 4 IN DIGITAL 3 IN

RIGHT

~

110 TO 240 VOLT 50/60 Hz

FUSE 1.0 AMP

IEC 127 F

LEFT

INPUT

ZONE 2

OUT

VARIABLE

OUT

FIXED

TAPE

AUDIO INPUTS

7.1 INPUTS

RECORD OUT

AUDIO VIDEO INPUTS

MAIN OUT

CD

REC 2

REC 1

Y

CR

CB

CENTER

BACK

SURROUND

FRONT

LEFT

RIGHT

SUB

VCR 1

VCR 2

TV

LD

AUX

DVD

SAT

CR

CB

Y

FRONT

SURROUND

CENTER

BACK

SUB

AM

GROUND

GROUND

FM

75 OHM

MAIN

ZONE

ZONE 2

TRIGGER

12 VOLT

TRIGGER

IR

INPUT

High Resolution Audio-Video Processor

MODEL: HT 4000

Marsh Sound Design

62 El Camino Drive, Corte Madera, CA 94925

S/N

MADE IN

US

WARNING:

TO PREVENT ELECTRICAL SHOCK OR HARM, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

FOR CONTINUED PROTECTION AGAINST RISK OF FIRE OR DAMAGE REPLACE FUSES WITH THE TYPE AND CURRENT RATING SPECIFIED.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942,

5,956,674, 5,974,380, 5,978,762 and other world-wide patents issued and pending. “DTS”,

“DTS-ES Extended Surround” and “Neo:6” are trademarks of Digital Theater Systems, Inc.

Copyright 1996, 2000 Digital Theater Systems, Inc. All Right Reserved.

“DOLBY”, “PROLOGIC”, AND THE DOUBLE-D SYMBOL ARE TRADEMARKS OF

DOLBY LABORATORIES.

MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE TO RAIN OR MOISTURE
